JUKI DNU-1541 - Engraved Marker Dots on the Handwheel; Lubrication Route Diagram

− 44 −

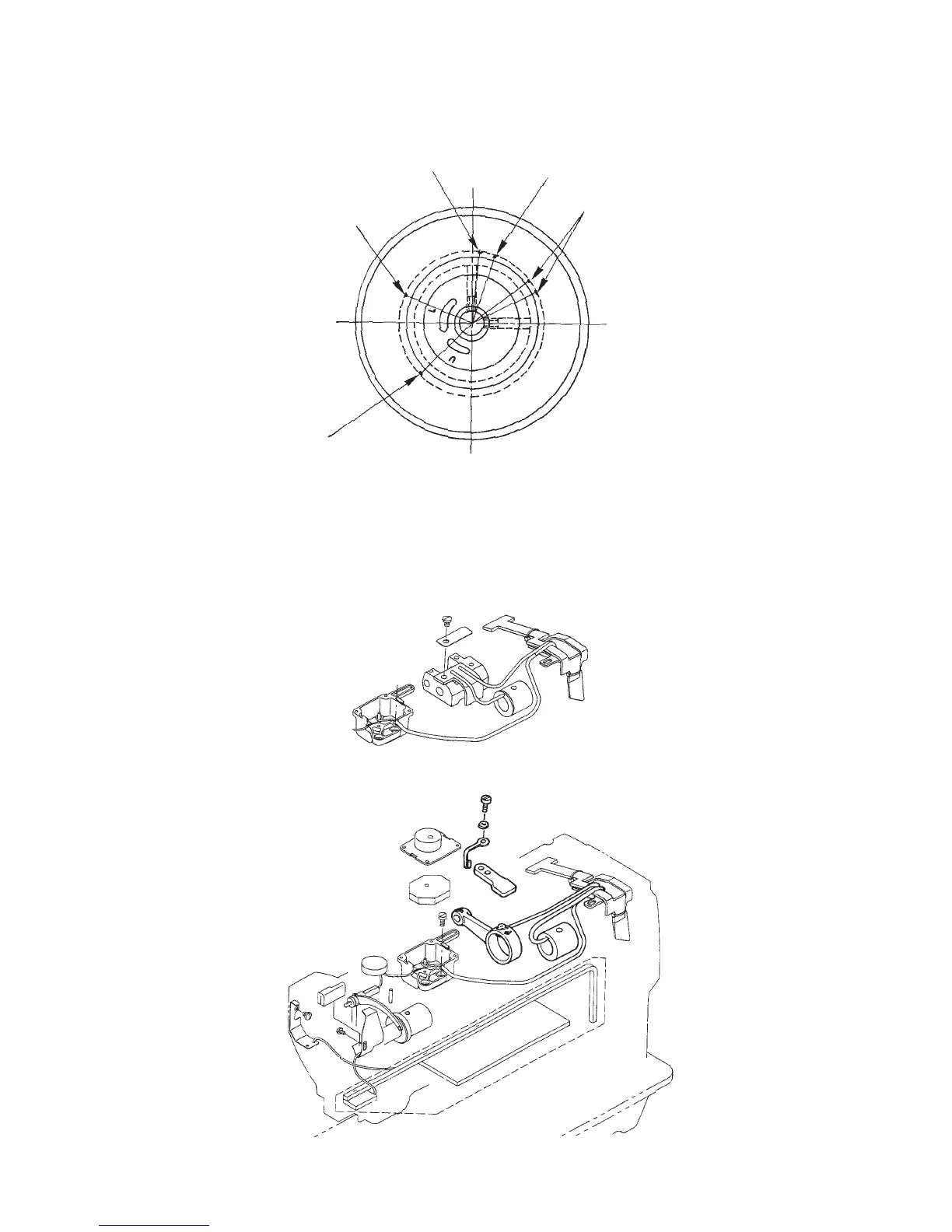

7. ENGRAVED MARKER DOTS ON THE HANDWHEEL
8. LUBRICATION ROUTE DIAGRAM
Range of needle-up stop position (white)
Needle-up stop position at the time of
reverse revolution to lift needle
Adjustment of thread trimmer cam (red)
Needle-down stop position (yellow)
Thread trimming position
