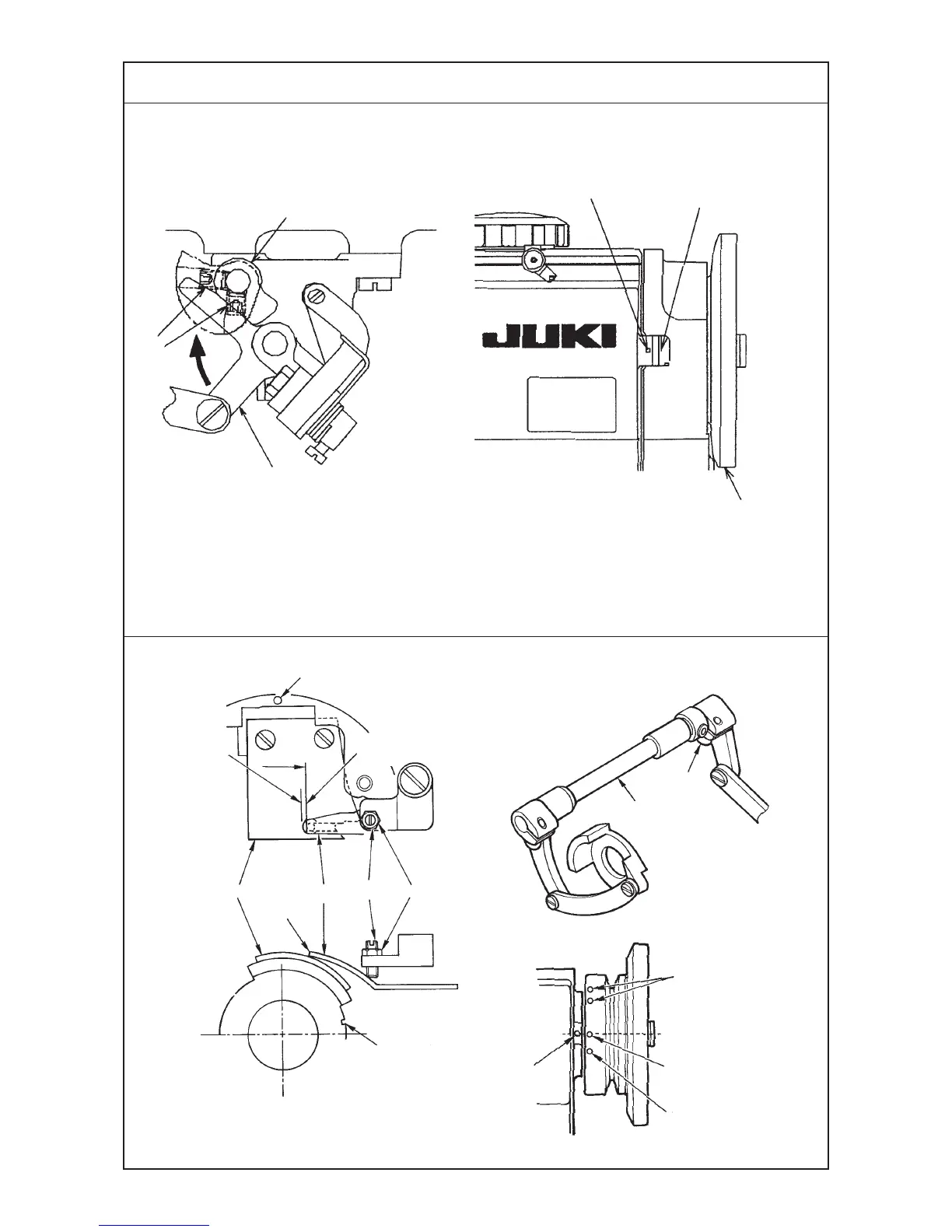

JUKI DNU-1541 Engineer's Manual

−26 −
Standard Adjustment
3) Thread trimmer cam timing
1
2
3
Conditions
• Engraved marker dot on the handwheel is aligned
with engraved marker dot on the machine arm.
Engraved marker dot
on machine arm
Red engraved
marker dot
Handwheel
4) Rotary knife and fixed knife
1
2
3
4
5
6
A
Bed counter sinking
To align
Rotary knife
base groove
Engraved marker
line of front end
position
White engraved
marker dot
Colorless engraved
marker dot (upper)
Colorless engraved
marker dot (lower)
Engraved
marker dot on
machine arm
Engraved marker line of
alignment of blade sections

JUKI DNU-1541 Specifications

General

Machine Type	Industrial Sewing Machine
Max Stitch Length	9mm
Needle Bar Stroke	36.5mm
Presser Foot Lift	16mm (by knee), 9mm (by hand)
Needle	DP×17 (#14) #11-#18
Lubrication	Automatic
Weight	34kg (head only)
Stitch Type	Lockstitch
Stitch Length	9mm
Max Sewing Speed	2, 500 stitches per minute
Type	Lockstitch
Application	Heavy-Weight Materials
Maximum Sewing Speed	2, 500 stitches per minute
Bobbin	Large bobbin
Motor	Servo Motor (optional)
Hook Type	Horizontal-axis full-rotary double-capacity hook
