JUKI DNU-1541 Engineer's Manual

−12 −

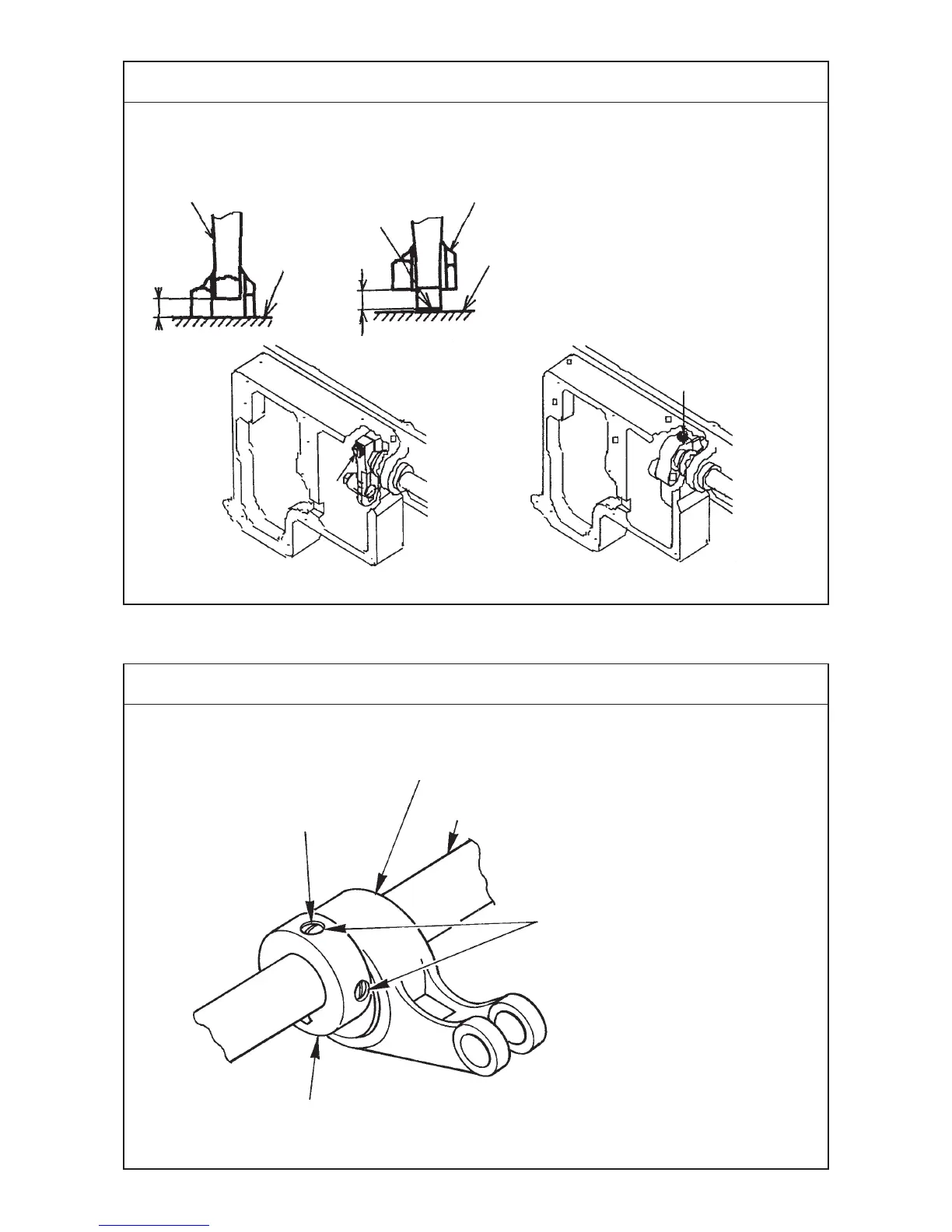

Standard Adjustment
2) Alternate momentum
12
3
B
Top surface of
feed dog
Top surface of
throat plate
Top surface of
throiat plate
Conditions
• Feed amount : 0 mm
• Amount of alternate vertical movement
In case of the machine without thread trimmer
In case of the machine with thread trimmer
Standard Adjustment
(9) Feed cam timing
1) Horizontal feed cam timing
1
2
3
Screw No. 1
Main shaft
Conditions
• Blade point of the hook aligns
with the center of needle when
feed amount is “0”.
• Feed amount : maximum
A
3

JUKI DNU-1541 Specifications

General

Machine Type	Industrial Sewing Machine
Max Stitch Length	9mm
Needle Bar Stroke	36.5mm
Presser Foot Lift	16mm (by knee), 9mm (by hand)
Needle	DP×17 (#14) #11-#18
Lubrication	Automatic
Weight	34kg (head only)
Stitch Type	Lockstitch
Stitch Length	9mm
Max Sewing Speed	2, 500 stitches per minute
Type	Lockstitch
Application	Heavy-Weight Materials
Maximum Sewing Speed	2, 500 stitches per minute
Bobbin	Large bobbin
Motor	Servo Motor (optional)
Hook Type	Horizontal-axis full-rotary double-capacity hook
