−20 −
Standard Adjustment

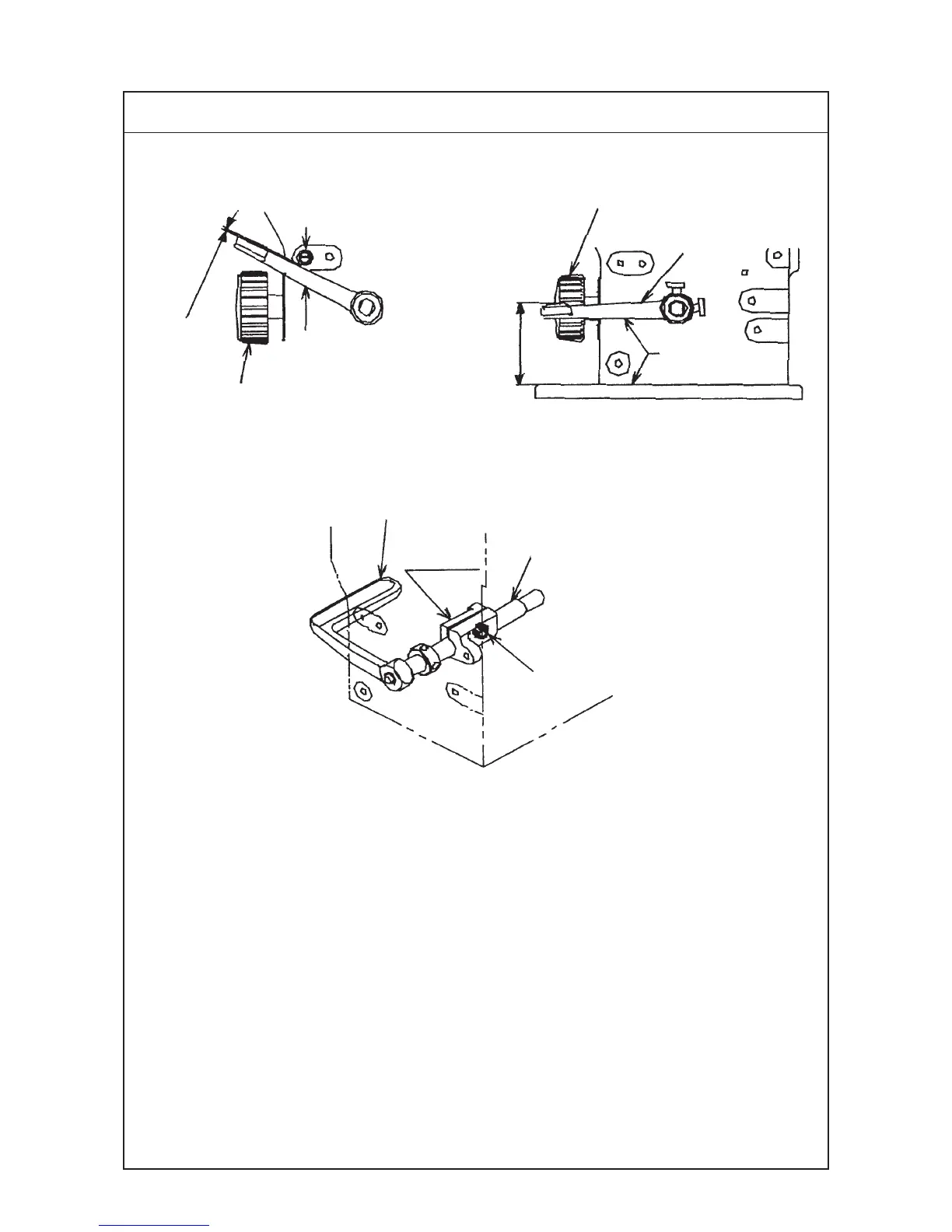

(13) Position of the reverse feed control lever
1
2
3
1±0.5 mm
1
52.5±1 mm
™ In case of DNU-1541-7 ™ In case of DNU-1541 and DNU-1541S
Stitch dial
Stitch dial
To be almost flush
Reverse feed control lever
Feed
regulator
Reverse feed lever shaft
