− 32 −
4. INSTALLATION OF THE OPTIONAL PARTS
(1) Automatic reverse feed device
4
5
1
2
3
1
2
3
4
5
6
7
8
9
8
!0
!1

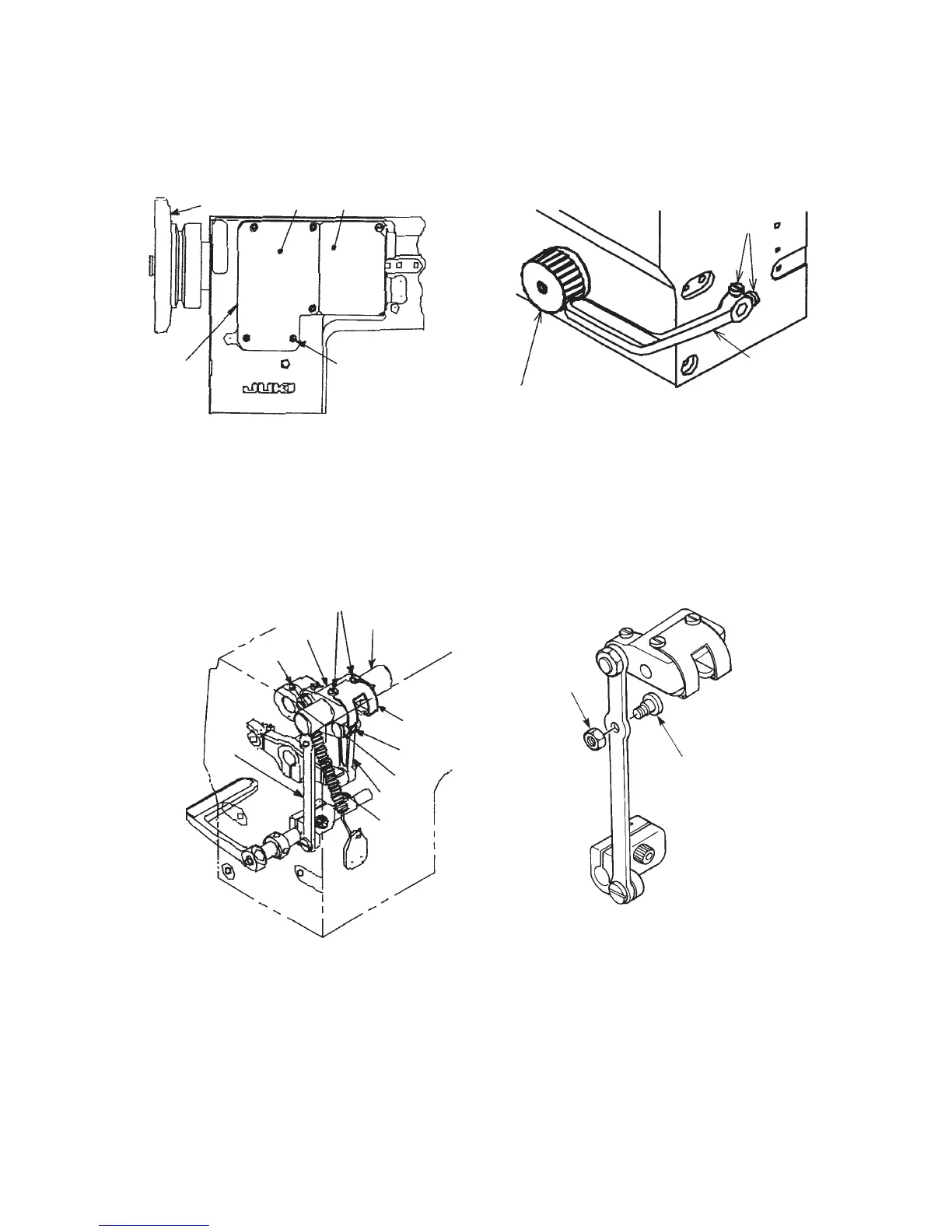

1) Removing the window plate
(List of the parts to be removed)
1. Loosen setscrew 1 in the window plate B
located at anti-operator’s side of the machine
arm.
2. Remove window plate B 2.
3. Remove window plate packing B 3.
Handwheel Window plate A
2) Removing the reverse feed control lever
(List of the parts to be removed)
1. Loosen the respective setscrews in the belt
cover and remove the belt cover.
2. Remove two setscrews 4 in the reverse feed
control lever.
3. Remove reverse feed control lever 5.
Stitch dial
3) Installing the reverse feed link hinge screw (List A)
1. Remove feed driving rocker tension spring 1.
2. Loosen felt presser setscrews 2 and remove felt presser 3.
3. Loosen setscrew 4 in the feed rocker link pin and remove feed rocker link pin 5.
4. Remove feed rocker link 6 from feed driving rocker 7.
5. Loosen the setscrew in the feed driving rocker support and move feed driving rocker support 8 to the
right or left.
6. Draw out feed driving rocker 7.
7. Install reverse feed link hinge screw nut !0 and reverse feed link hinge screw !1 to feed regulator
connecting rod 9.
8. Install the above parts by reversing the above order.
