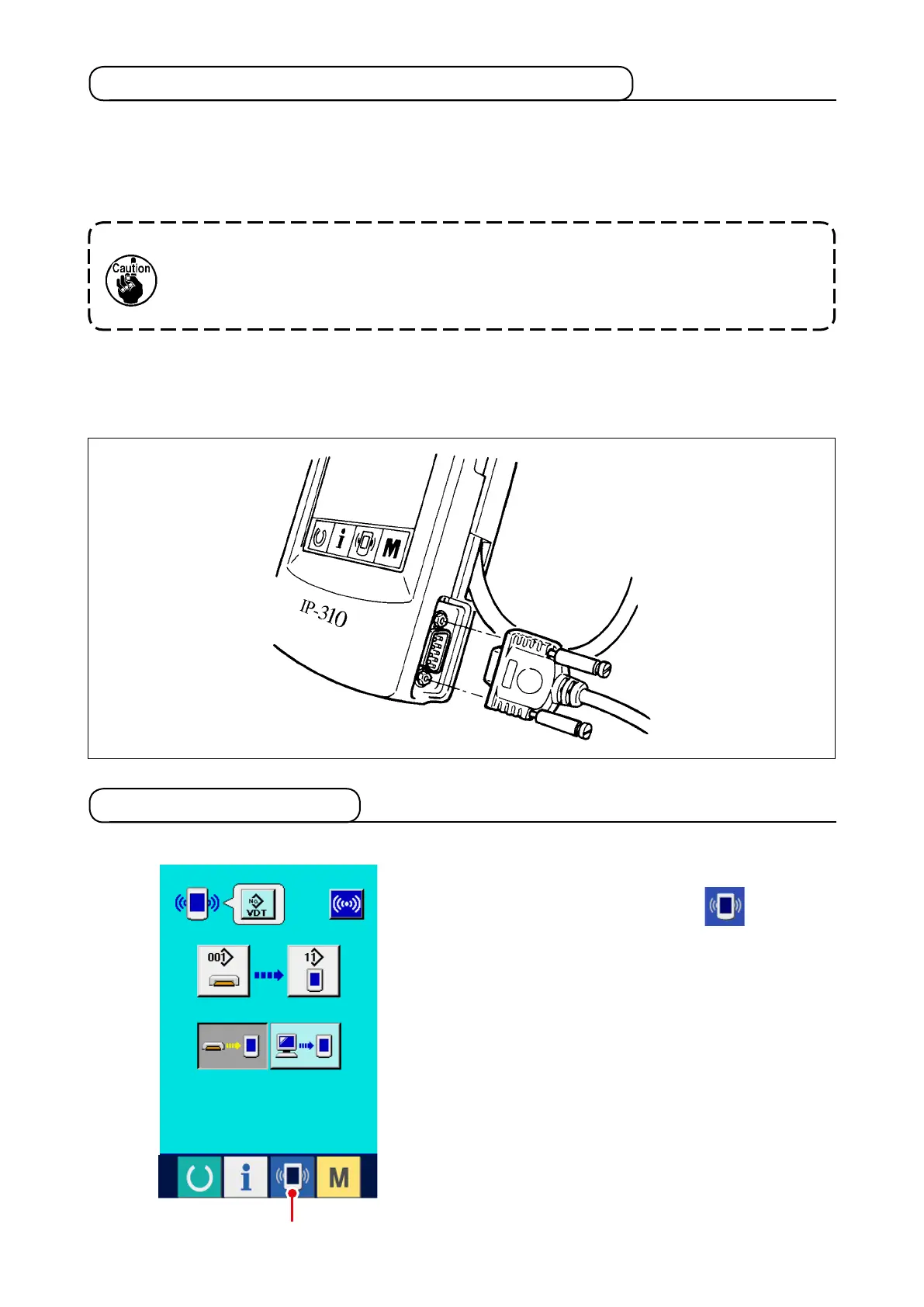

16-3 Performing communication by using RS-232C
[ Setting procedure ]
It is possible to send and receive the data, by using RS-232C cable, with the personal computer or
the like. For the cable to be connected, connect reverse type 9-pin (female) to the operation panel
side.
If the contact part becomes dirty, failure of contact will be caused. Do not touch by
hand, and control so that dust, oil or other foreign material does not adhere to it. In
addition, the inside element is damaged by static electricity or the like. So, be very
careful when handling.
* When the lower part of the cover located on the side of the operation panel is opened, there is the
connector of 9-pin for RS-232C. Connect the cable there. When the screw for locking is attached to the
connector, tighten the screw to prevent it from falling.
16-4 Take-in of the data
1) Display the communication screen.
When communication switch
1
of switch
seat section is pressed in the data input screen,
the communication screen is displayed.
