0803.GB
E 20

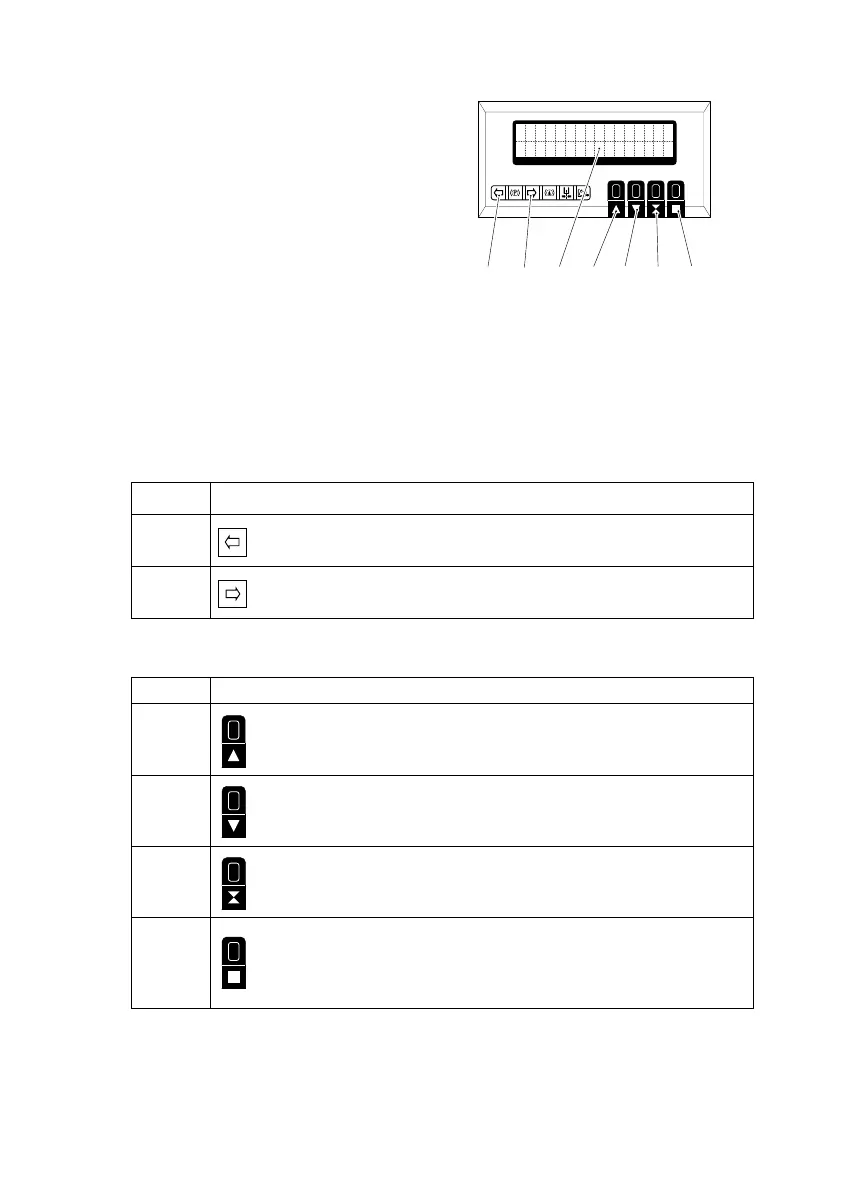

5 Information and service display
(LISA)
The display (40) of the LC information
and service display (“LISA”) is used to
indicate operating data, the charging
state of the battery, the operating hours
and service and diagnosis data. Two
light-emitting diodes (LEDs (38) and
(39)) are arranged under the display as
warning lamps. The keypad (four keys,
(41) to (44)) is required for calling up,
selecting, reading and changing truck
parameters.
m
Only authorised personnel from the manufacturer's service may change parameters
in service mode!
5.1 LED warning lamps
Two LED warning lamps indicate the following states:
5.2 Key assignment
Item
Function
38 Forward direction (drive direction) (green LED)
39 Reverse direction (load direction) (green LED)
Item Function
41
Double function
- incremental increase of the selected parameter
- selection of the individual menu items in ascending order
42
Double function
- incremental decrease of the selected parameter
- selection of the individual menu items in descending order
43
Double function
- release of a selection menu from the main menu
- acknowledging a query with “NO” -> “x”
44
Triple function
- exiting from a selected menu item
- storing of modified parameters
- acknowledging a query with “YES” -> “q”
403938 41 42 43 44
0803.GB
E 20
5 Information and service display
(LISA)
The display (40) of the LC information
and service display (“LISA”) is used to
indicate operating data, the charging
state of the battery, the operating hours
and service and diagnosis data. Two
light-emitting diodes (LEDs (38) and
(39)) are arranged under the display as
warning lamps. The keypad (four keys,
(41) to (44)) is required for calling up,
selecting, reading and changing truck
parameters.
m
Only authorised personnel from the manufacturer's service may change parameters
in service mode!
5.1 LED warning lamps
Two LED warning lamps indicate the following states:
5.2 Key assignment
Item
Function
38 Forward direction (drive direction) (green LED)
39 Reverse direction (load direction) (green LED)
Item Function
41
Double function
- incremental increase of the selected parameter
- selection of the individual menu items in ascending order
42
Double function
- incremental decrease of the selected parameter
- selection of the individual menu items in descending order
43
Double function
- release of a selection menu from the main menu
- acknowledging a query with “NO” -> “x”
44
Triple function
- exiting from a selected menu item
- storing of modified parameters
- acknowledging a query with “YES” -> “q”
403938 41 42 43 44
