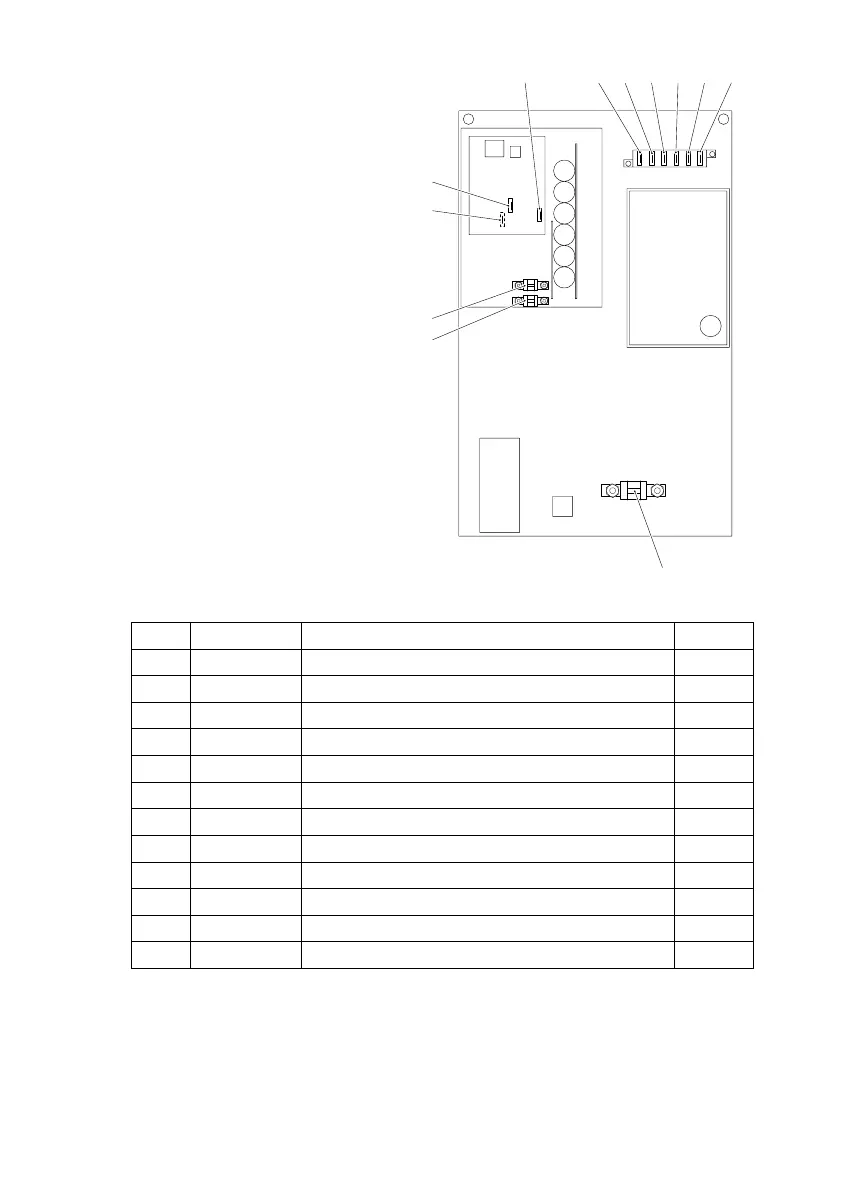

6.6 Checking the electric fuses
– Prepare the truck for the ser-
vicing and maintenance operati-
ons
(refer to section 6.1).
– Open the door to the electrical
system
(refer to section 6.4).
Referring to the table, check all fu-
ses for correct rating and damage;
replace fuses where required.
Item Designation Protection of: Value
9 1F10 Field “Driving” 40 A
10 F1.1 Control fuse, driving 10 A
11 6F1 Control fuse, discharge indicator 10 A
12 3F6 Steering motor 30 A
13 F4 Control fuse, main contactor 10 A
14 3F9 Control fuse, steering control system 2 A
15 F1 Entire control circuit 10 A
16 5F2 DC/DC converter (o) 10 A
17 5F5 Spare 10 A
18 2F2 Pump motor, auxiliary lift (o) 160 A
19 2F1 Pump motor 150 A
20 1F1 Drive motor 150 A
1211 13 14 15 16 17
20
9
10
19
18
F 11
0803.GB
6.6 Checking the electric fuses
– Prepare the truck for the ser-
vicing and maintenance operati-
ons
(refer to section 6.1).
– Open the door to the electrical
system
(refer to section 6.4).
Referring to the table, check all fu-
ses for correct rating and damage;
replace fuses where required.
Item Designation Protection of: Value
9 1F10 Field “Driving” 40 A
10 F1.1 Control fuse, driving 10 A
11 6F1 Control fuse, discharge indicator 10 A
12 3F6 Steering motor 30 A
13 F4 Control fuse, main contactor 10 A
14 3F9 Control fuse, steering control system 2 A
15 F1 Entire control circuit 10 A
16 5F2 DC/DC converter (o) 10 A
17 5F5 Spare 10 A
18 2F2 Pump motor, auxiliary lift (o) 160 A
19 2F1 Pump motor 150 A
20 1F1 Drive motor 150 A
1211 13 14 15 16 17
20
9
10
19
18
