125
11.14 EN
6.15 Operating additional attachments for the Multi Pilot
WARNING!
Incorrect symbols can cause accidents
Symbols on controls that do not depict the function of the attachments can cause
accidents.
X
Mark the controls with symbols that indicate their function.
X
Specify the attachments’ direction of movement in accordance with ISO 3691-1 so
that they match the controls’ direction of movement.

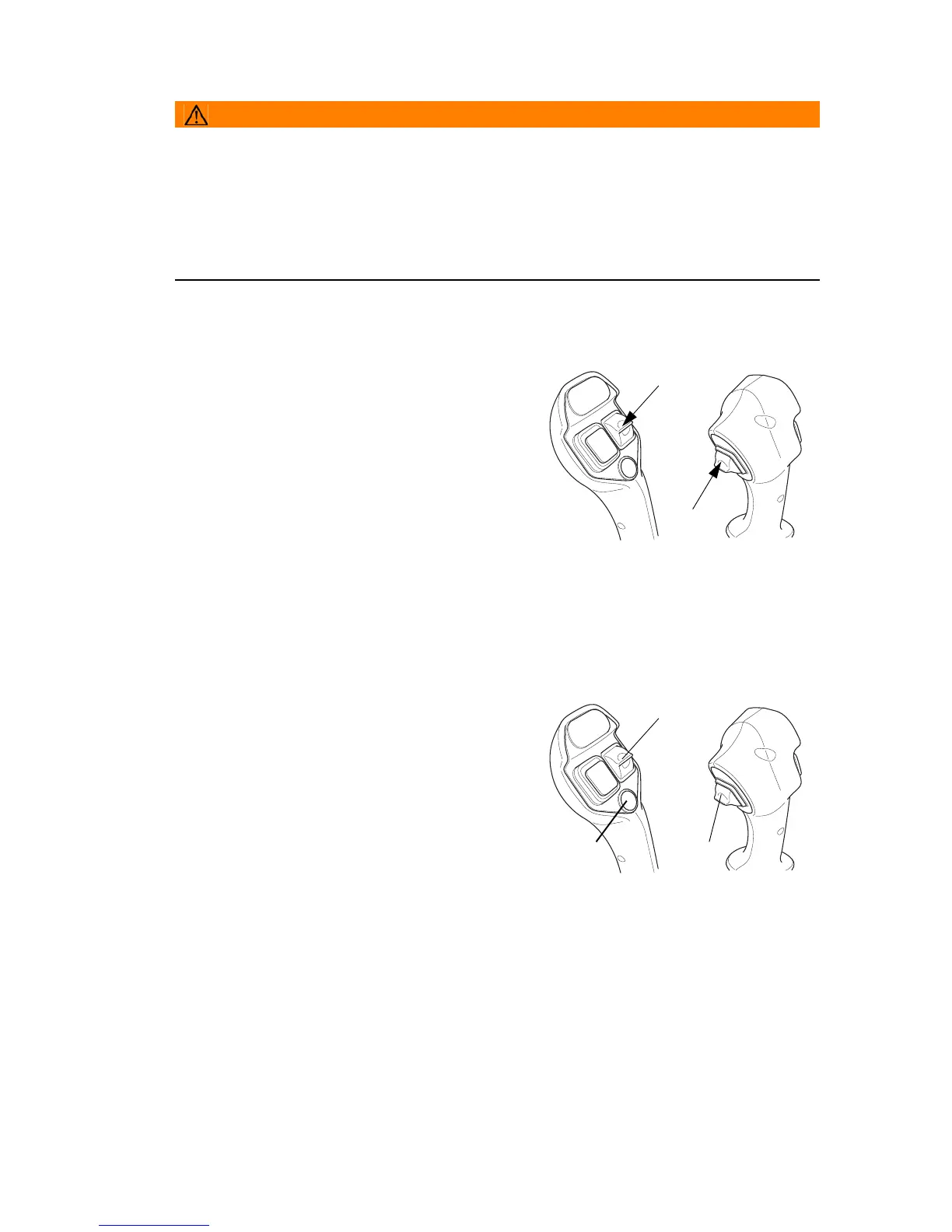

6.15.1 Multi Pilot with control of ZH1 and ZH2 hydraulic ports
Z Functions are assigned to the levers (79,
80) depending on the attachments used.
Levers that are not required are void. For
connections see "Fitting additional
attachments" on page 126.
Procedure
• Operating hydraulic port ZH1:
Press the button (79).
• Operating hydraulic port ZH2:
Press the button (80).
The attachment performs its operation.
6.15.2 Multi Pilot with control of ZH1, ZH2 and ZH3 hydraulic ports
Z Functions are assigned to the levers (79,
80, 81) depending on the attachments
used. Levers that are not required are void.
For connections see "Fitting additional
attachments" on page 126.
Procedure
• Operating hydraulic port ZH1:
Press the button (79).
• Operating hydraulic port ZH2:
Apply the (80) button and the acknowledgement key (81) simultaneously.
• Operating hydraulic port ZH3:
Apply the (80) button and the acknowledgement key (81) simultaneously.
Z ZH3 does not have the acknowledgement function for ZH2.
The attachment performs its operation.
79
80
79
80
81
