Jungheinrich TFG 670 User Manual

11.14 EN
184
4.14 Checking electrical fuses
4.14.1 Standard Fuse Strip
Checking electrical fuses
Requirements
– Prepare the truck for maintenance and repairs (4.14.2).
Procedure
Z The main fuse box is located in the dashboard to the right of the driver's seat in the
cab.
• Remove the electrical system cap.
• Check condition and rating of the fuses in accordance with the table.
• Replace any damaged fuses in accordance with the table.
• Close the electrical system cap.
The electrical fuses are now checked.

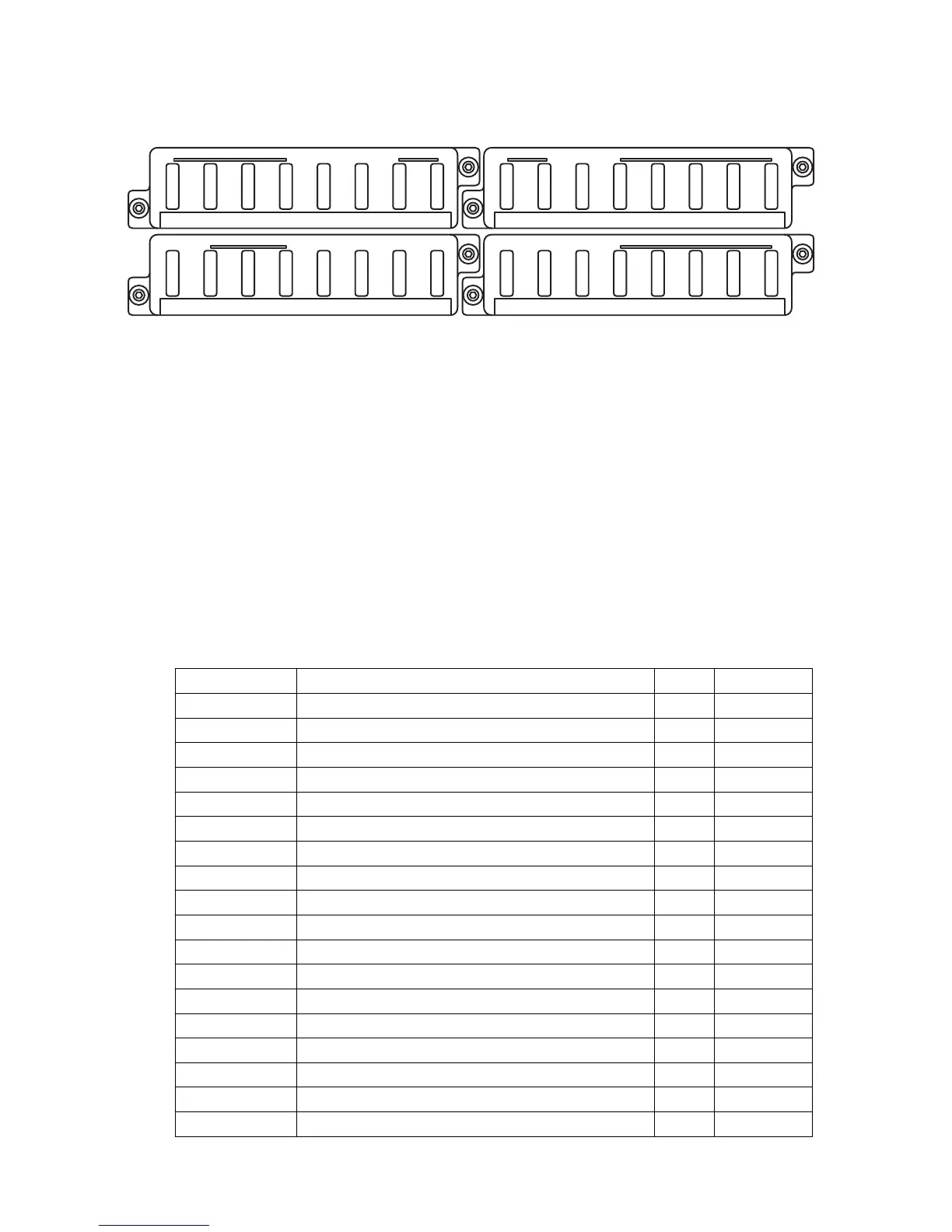

F1 F2
10 15 15 15 10 10 10 10
F3 F4 F5 F6 F7 F8 F9 F10
7,5 7,5 15 10 25 15 10 10
F11 F12 F13 F14 F15 F16
F17 F18
10 10 10
1 1
10 10
1
F19 F20 F21 F22 F23 F24 F25 F26
1
15 10 10 15
1 5
F27 F28 F29 F30 F31 F32
10
Type Electric circuit Rating (A)
F1 Parking light t 10
F2 Dipped lights t 15
F3 Main beam t 15
F4 Rear work lights / tail light (roof panel) o 15
F5 Indicator t 10
F6 Warning indicator system t 10
F7 Beacon t 10
F8 Front windscreen wiper + horn t 10
F9 Rear windscreen wiper t 7.5
F10 Roof windscreen wiper t 7.5
F11 Front / top work lights t 15
F12 Terminal 15 switches t 10
F13 Fan / air conditioning system t 25
F14 Steering column switch, dipped lights o 15
F15 Charge control light / swivel seat valve t 10
F16 Compressor for air-sprung seat o 10
F17 Seat heating o 10
F18 12 volt socket terminal 30 o 10
