11.14 EN
126
6.16 Fitting additional attachments
WARNING!
Incorrectly connected attachments can cause accidents.
Attachments with incorrectly connected hydraulic attachments can result in
accidents.
X
Attachments must only be assembled and commissioned by trained, specialist
personnel.
X
Observe the manufacturer’s operating instructions.
X
Before starting, check the fasteners are positioned correctly and securely and
make sure they are complete.
X
Before starting, make sure the attachment is working correctly.
WARNING!

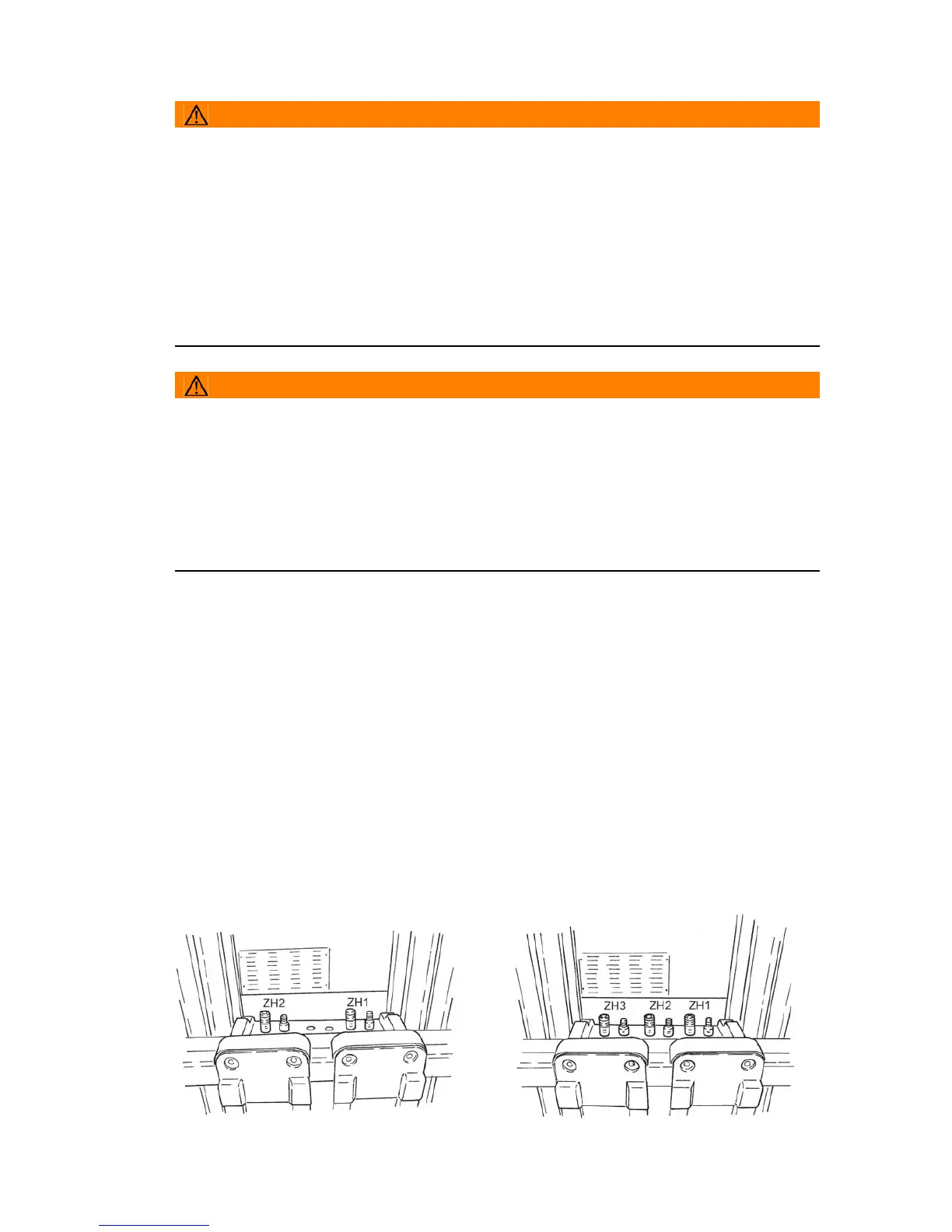

Hydraulic ports for clamping attachments
X
Clamping attachments may only be added to trucks which have a button to enable
additional hydraulic functions.
XOn trucks with auxiliary hydraulics ZH2 the clamping function should only be
attached to the coupling pair marked ZH2.
XOn trucks with auxiliary hydraulics ZH3 the clamping function should only be
attached to the coupling pair marked ZH3.
Hydraulic ports
Requirements
– Non-pressurised hydraulic hoses.
– Attachment directions of movement defined to match the controls’ direction of
movement.
Procedure
• Non-pressurised hydraulic hoses
• Switch off the truck and wait a few minutes.
• Attach the plug connector and engage it in position.
• Mark the controls with symbols that indicate the function of the attachment.
The attachment is hydraulically connected.
