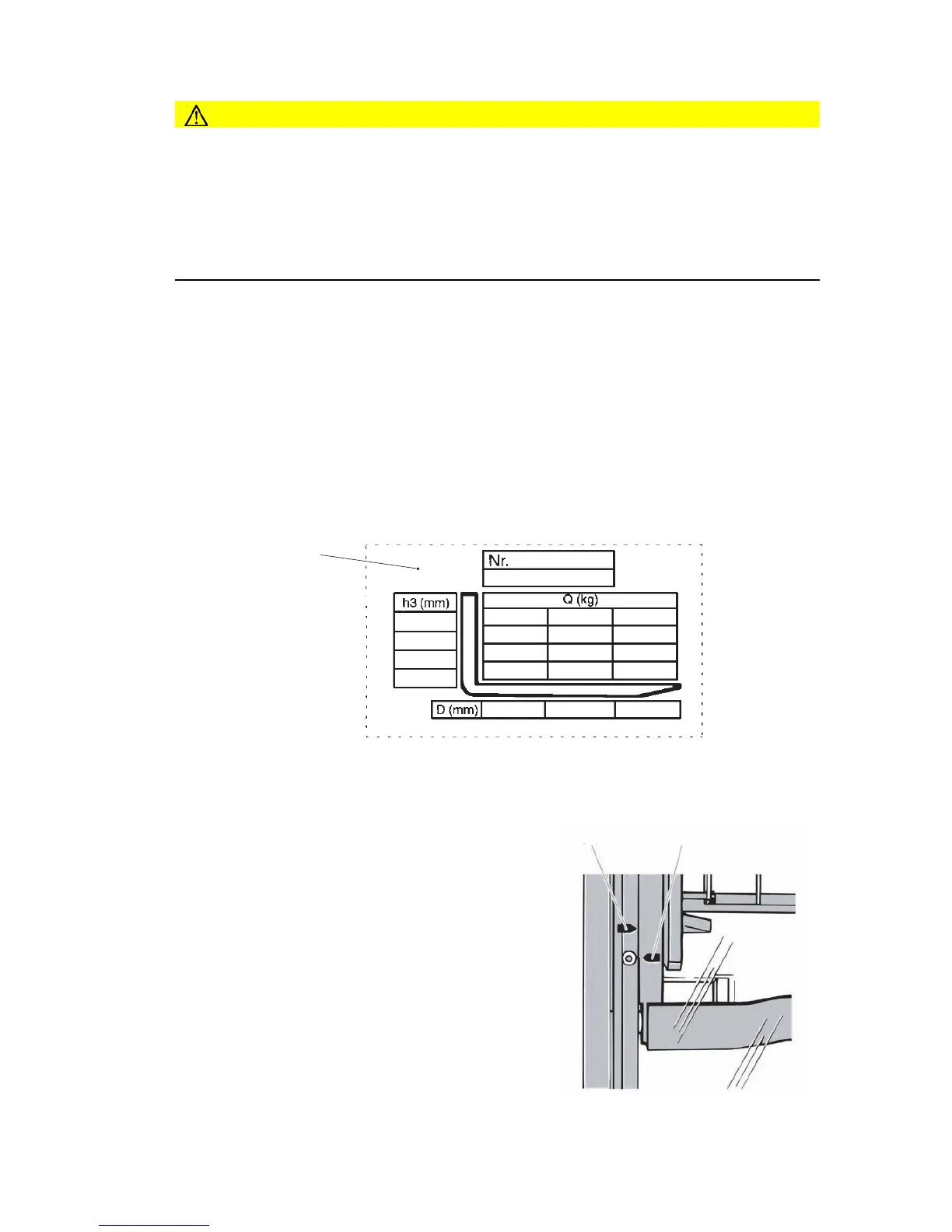

4.2 Truck capacity plate
CAUTION!
Accident risk from fork replacement
If you replace the forks with ones that differ from the originals, the capacity will
change.
X
When replacing the forks you must attach an additional capacity plate to the truck.
X
Trucks supplied without forks are given a capacity plate for standard forks (length:
1150 mm).
The capacity plate (21) gives the capacity (Q in kg) of the truck for a vertical mast.
The maximum capacity is shown as a table with a given load centre of gravity D (in
mm) and the required lift height H (in mm).
The capacity plate (21) of the truck indicates the truck's capacity with the forks as
originally supplied.
Example of how to calculate the maximum capacity:
With a load centre distance D of 700 mm and a maximum lift height h
3
of 5000 mm.
the max. capacity Q is 6940 kg.
Lift height restriction
The arrow shaped markings (53 and
54) on the inner and outer masts show
the operator when the prescribed lift
limits have been reached.
