3.2.2 Control cabinet installation
Power dissipation for the control cabinet dimension => „Power dissipation“. A lower value
can be used here depending on the operating mode/load.
Installation of the drive converter
For reliable operation, the drive converter must be installed without clearance
on a smooth, closed, bare metal mounting plate.

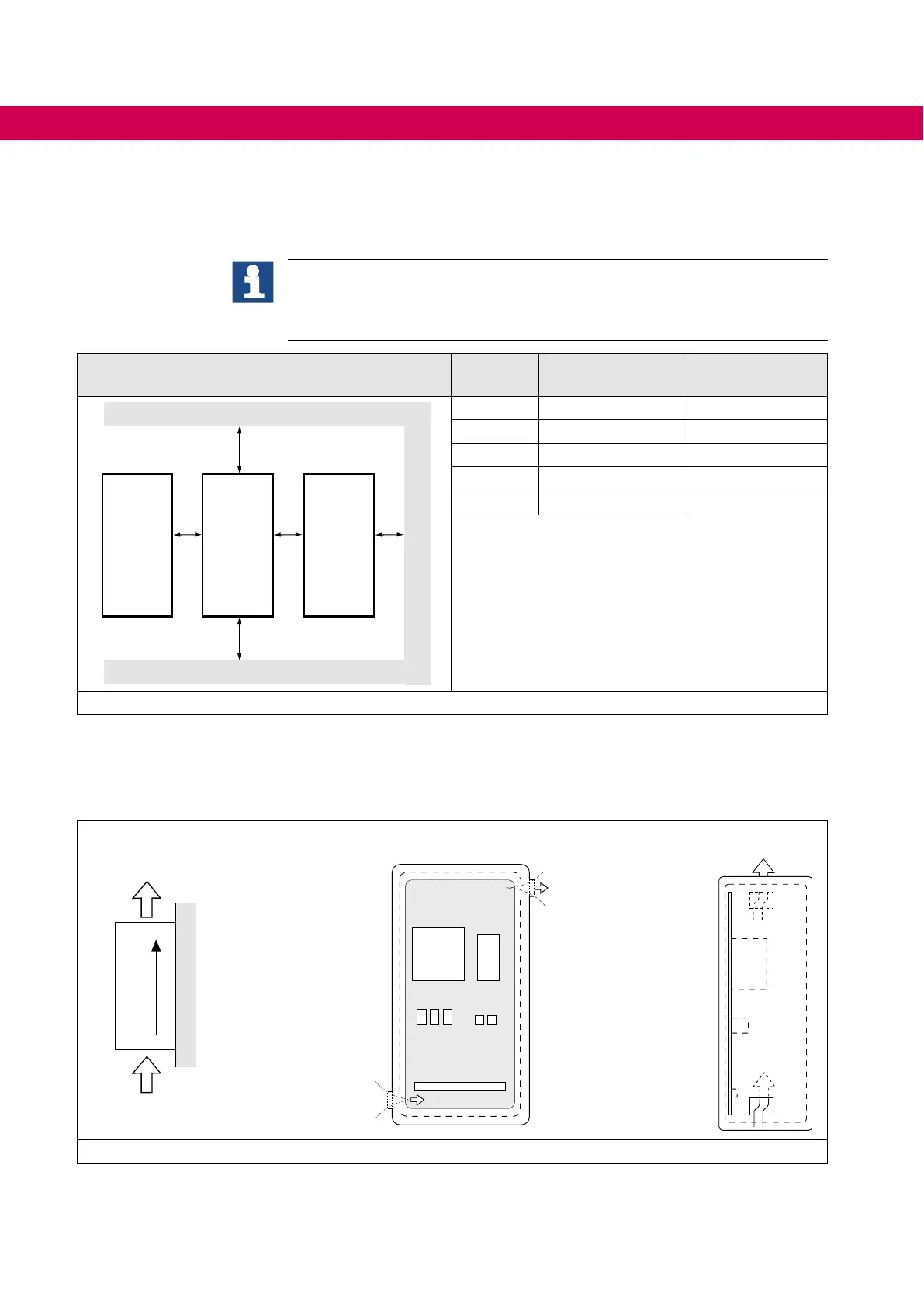

Mounting distances Dimen-
sion
Distance in mm Distance in inch
C
A
B
DD
A 150 6
B 100 4
C 30 1.2
D 0 0
X
1)
50 2
1) Distance to preceding elements in the cabinet
door.
Figure 2: Mounting distances
If construction-conditioned the control cabinet cannot be without indoor ventilation, ap-
propriateltersmustavoidsuctionofforeignobjects.
Direction of the air
ow
Front and side view of the coolant inlet
Coolant outlet
Coolant inlet
Figure 3: Control cabinet ventilation
