KEB COMBIVERT S6 User Manual

3.3.4.3 Turn-off time depending on the overload at unit size 14
Release time in s
Overload characteristic (OC Level 216%)
0
30
60
90
120
150
180
210
240
270
300
100 125 150 175 200 225
400
500
①
Motor current / drive converter rated currrent in %
Release time in s
Detail view in the range from 155 % to 210 %
0
5
10
155 160 165 170 175 180 185 190 200 205 210
②
Motor current / drive converter rated currrent in %
Legend
1 Thermal overload limit
2 Limitation by current controller limit (adjustable via software)

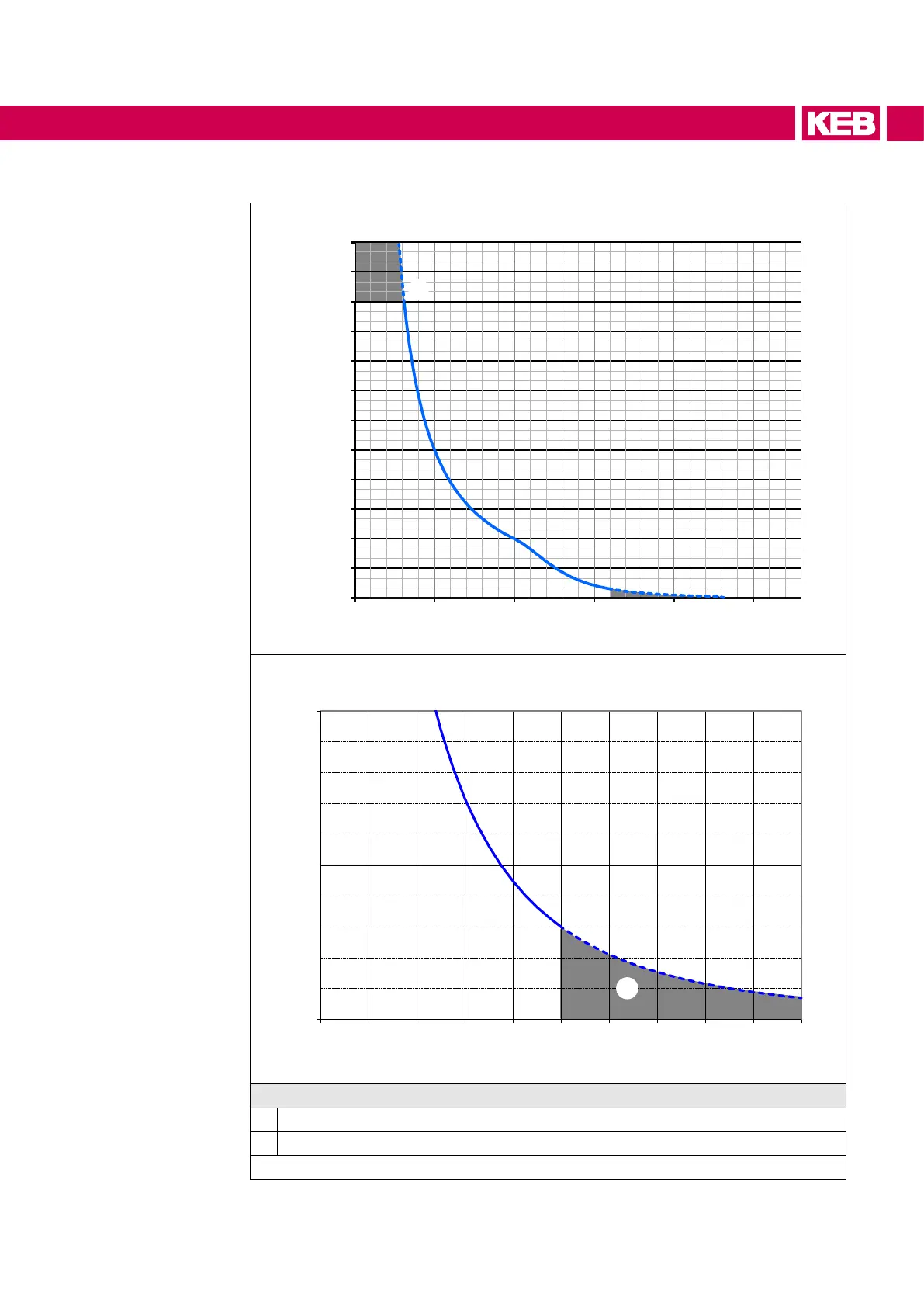

Figure 5: Turn-off time depending on the overload (OL) at unit size 14
