BRAKE CONTROL AND TEMPERATURE DETECTION
4.4.2.2 Connection of a KTY sensor
NOTICE
No protection of the motor winding in case of wrong connection.
► Operate KTY sensors in forward direction. Non-observance leads
incorrect measurement in the upper temperature range.
► KTY sensors may not be combined with other detections.
Name TA1 (X1C.9); TA2 (X1C.10)
Function Temperature sensor input
Stetting
dr33=0; KTY84/130
dr33=3; KTY83/110
Table 31: Connection of a KTY sensor
X1C.9 (TA1)
X1C.10 (TA2)
+
KTY84

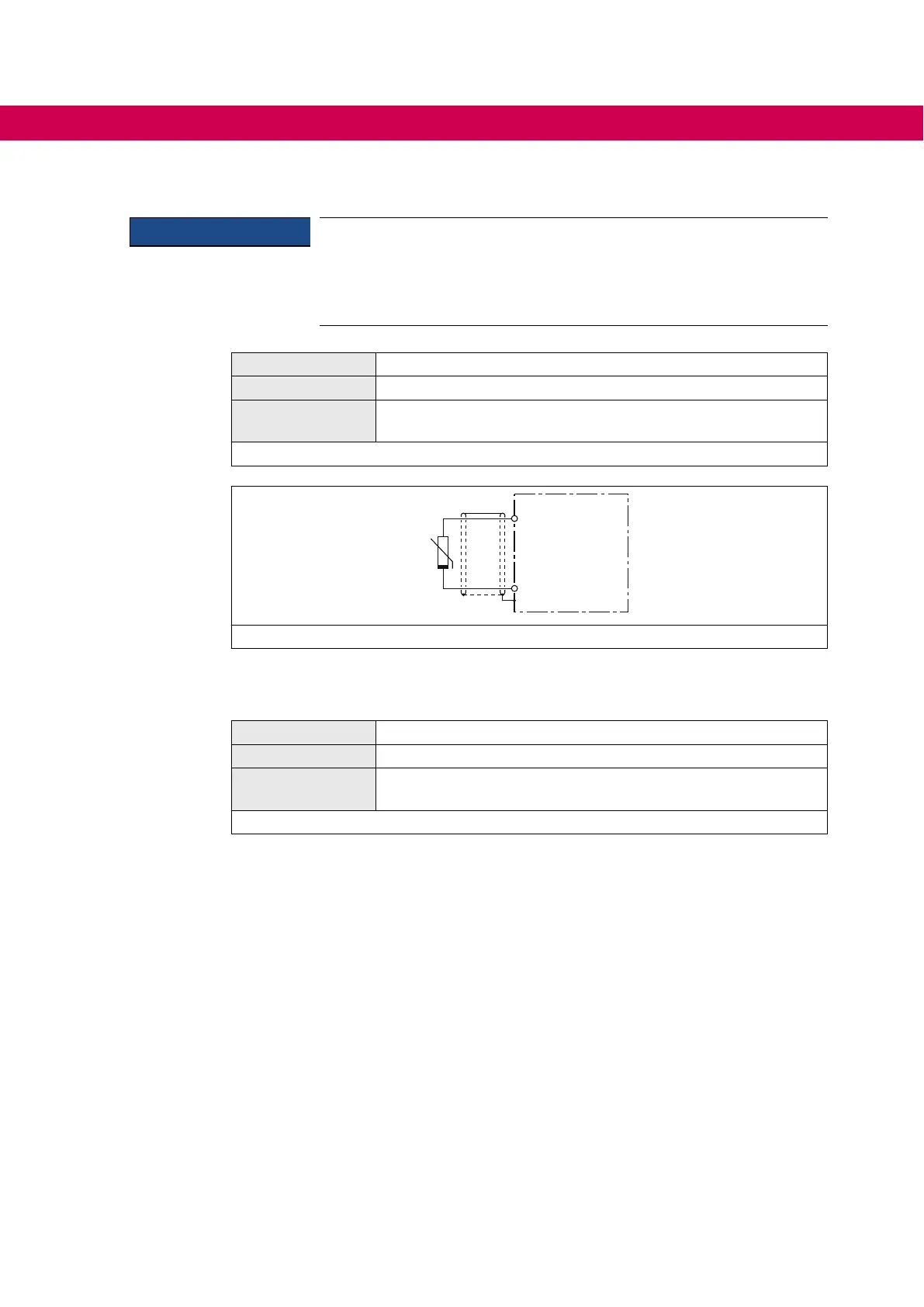

Figure 25: Connection of a KTY sensor
4.4.2.3 Connection of PTC, temperature switch or PT1000
Name TA1 (X1C.9); TA2 (X1C.10)
Function Temperature sensor input
Stetting
dr33=1; PTC or temperature switch
dr33=4; PT1000
Table 32: Connection of PTC, temperature switch or PT1000
