KEB COMBIVERT S6 User Manual

50
BRAKE CONTROL AND TEMPERATURE DETECTION

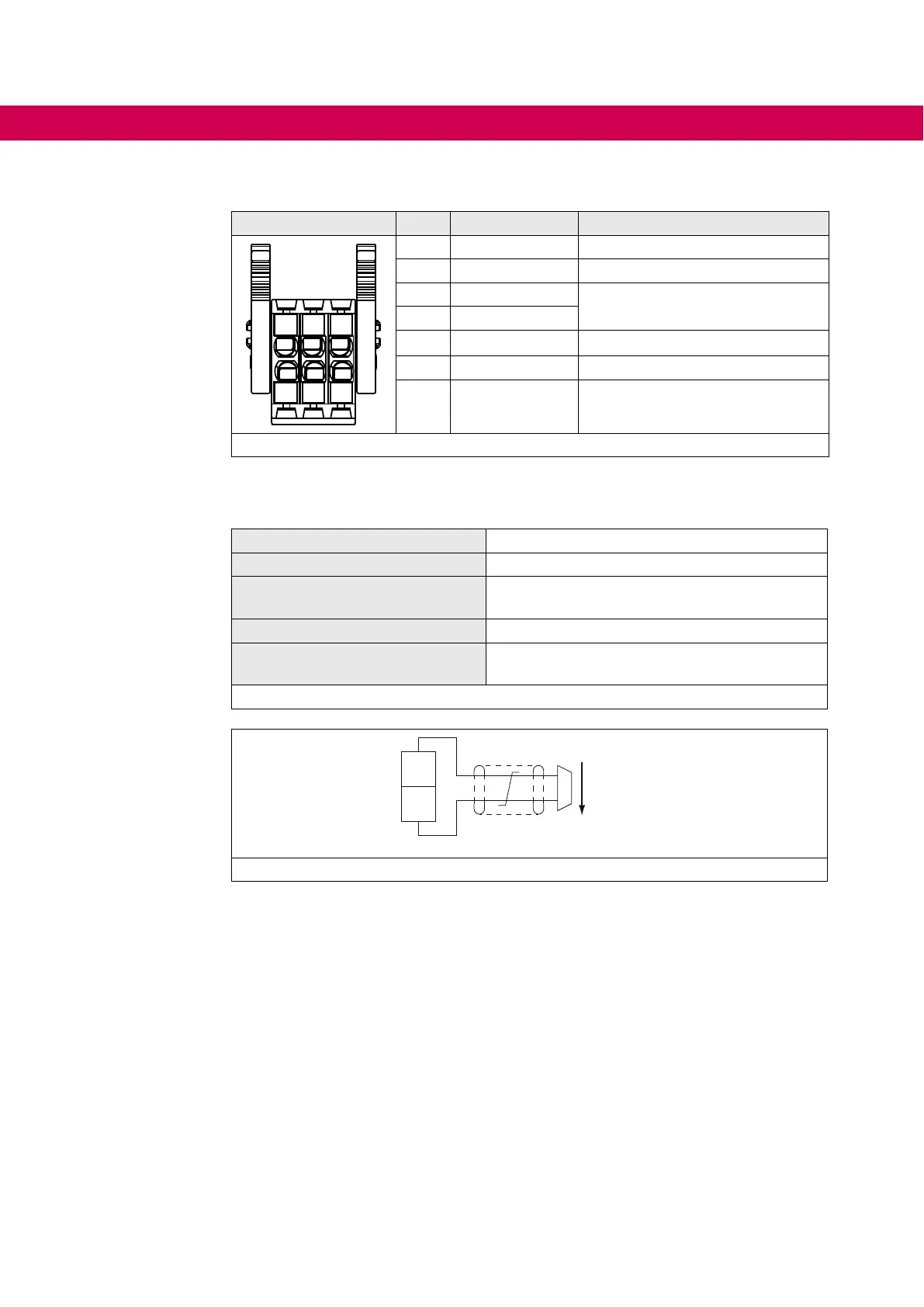

4.3 Brake control and temperature detection
X1C PIN Name Notes
1
2
3
4
5
6
1 BR+ Brake control / output +
2 BR- Brake control / output -
3 Reserved
4 Reserved
5 TA1
Temperature detection / input+
6 TA2 Temperature detection / input-
Figure 20: Assignment of the terminal block X1C
4.3.1 Specication and connection of the brake control
Name BR+ (X1C.1); BR- (X1C.2)
Function Output to supply a brake
Output voltage
• Minimum P24V_IN - 2.4 V
• Maximum P24V_IN
Maximum output current 2 A
Others
Short-circuit proof, internal free-wheeling path;
internallterswitching
Table 25: Specication of the brake control
2
1
Imax=2A
U
dc=24V
X1C
Figure 21: Example for the connection of the brake output at X1C
