BRAKE CONTROL AND TEMPERATURE DETECTION

• Deactivate the evaluation (pn33 =7)

• Install bridge between terminal X1C.5 and X1C.6 (dr33=1)

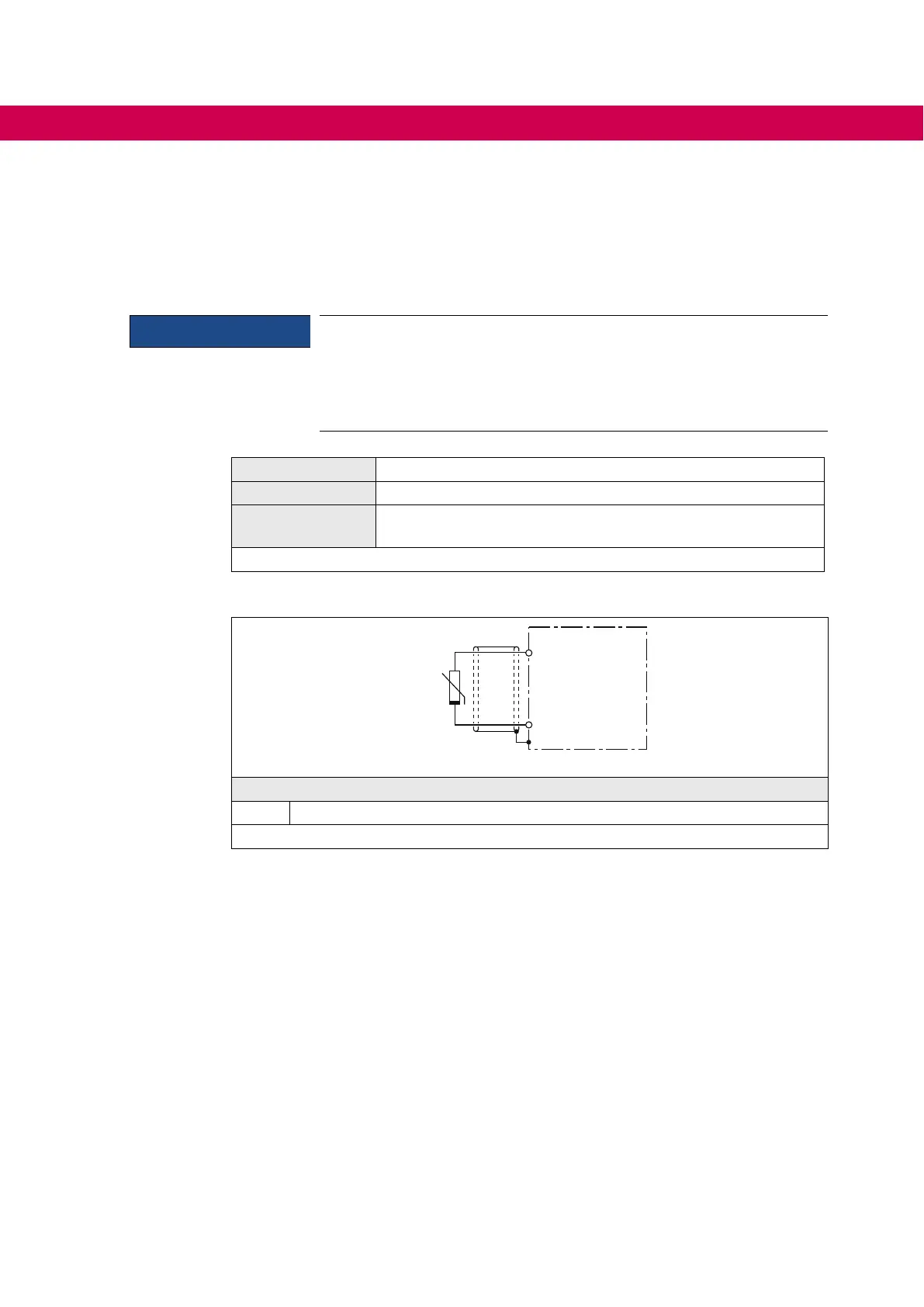

4.3.4 Connection of a KTY sensor

NOTICE

No protection of the motor winding in case of wrong connection.

► Operate KTY sensors in forward direction. Non-observance leads

incorrect measurement in the upper temperature range.

► KTY sensors may not be combined with other detections.

Name TA1 (X1C.5); TA2 (X1C.6)

Function Temperature sensor input

Stetting

dr33=0; KTY84/130

dr33=3; KTY83/110

Table 27: Connection of a KTY sensor

TA1

TA2

KTY84

①

Legend

1 Connection via shield plate (if not available, place on the mounting plate).

Figure 22: Connection of a KTY sensor
