CONNECTION OF THE POWER UNIT
4.2 Connection of the power unit
4.2.1 Connection of the voltage supply
+
++
--
L1
L2
L3
The COMBIVERT S6 corresponds to the drive
converter type A1. This type can be supplied
both by mains and via DC terminals. The start-
ing current limiting is arranged before the DC
link. When using as DC output, parallel con-
nected drive converters must have their own
starting current limiting at the DC voltage in-
put.

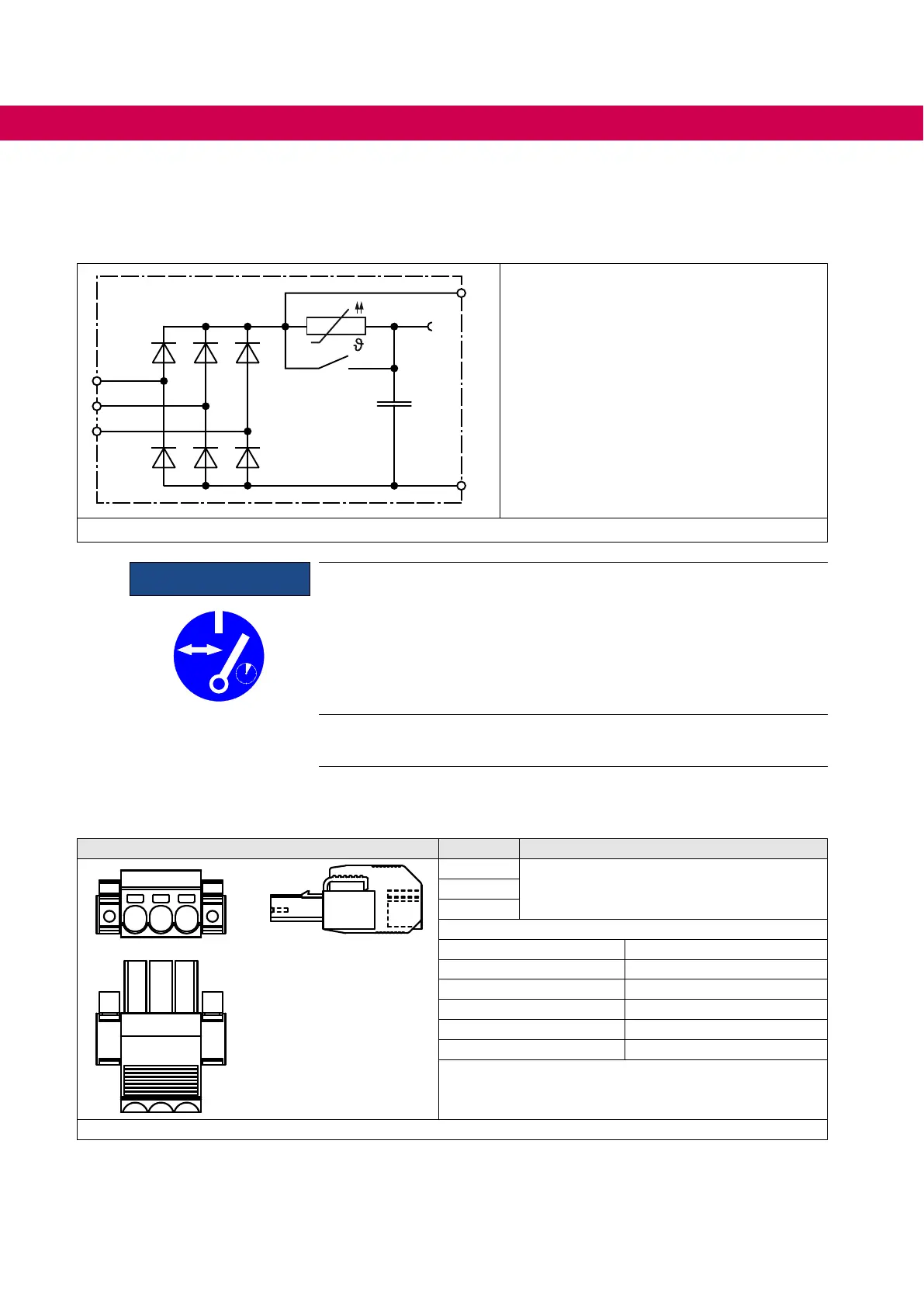

Figure 10: Input wiring / drive converter type
NOTICE
Minimum waiting period between two switch-on procedures 5 minutes
5 min
on
off
Cyclic switching on and off of the unit leads to temporary high resistance
of the resistor (PTC) in the input. The unit displays „Error! load shunt
fault“ in this state. When switching the control release during this fault,
the unit will switch off. A restart without limitation is possible after cooling.
Destruction of the drive converter !
Never exchange connections mains input and motor output !
4.2.1.1 Line terminal strip X1A
X1A Name Function
L1 L2 L3
L1
Mains connection
3-phase
L2
L3
Type Push-In spring connection
Screwdriver blade 08 x 4.5
Stripping length 12 mm
Wire cross-section AWG 24-8
without wire-end ferrule 0.5...10 mm²
with wire-end ferrule 1.5...6 mm²
Figure 11: Line terminal strip X1A
