Continuous power operating boundaries
Model 2601/2602 continuous power operating boundaries
The general operating boundaries for Model 2601/2602 continuous power output are shown in
Figure 8-3 (for derating factors, see "General SourceMeter power equation", described earlier in
this section). In this drawing, the 3A, 6V and 1A, 40V magnitudes are nominal values. Also note
that the boundaries are not drawn to scale.

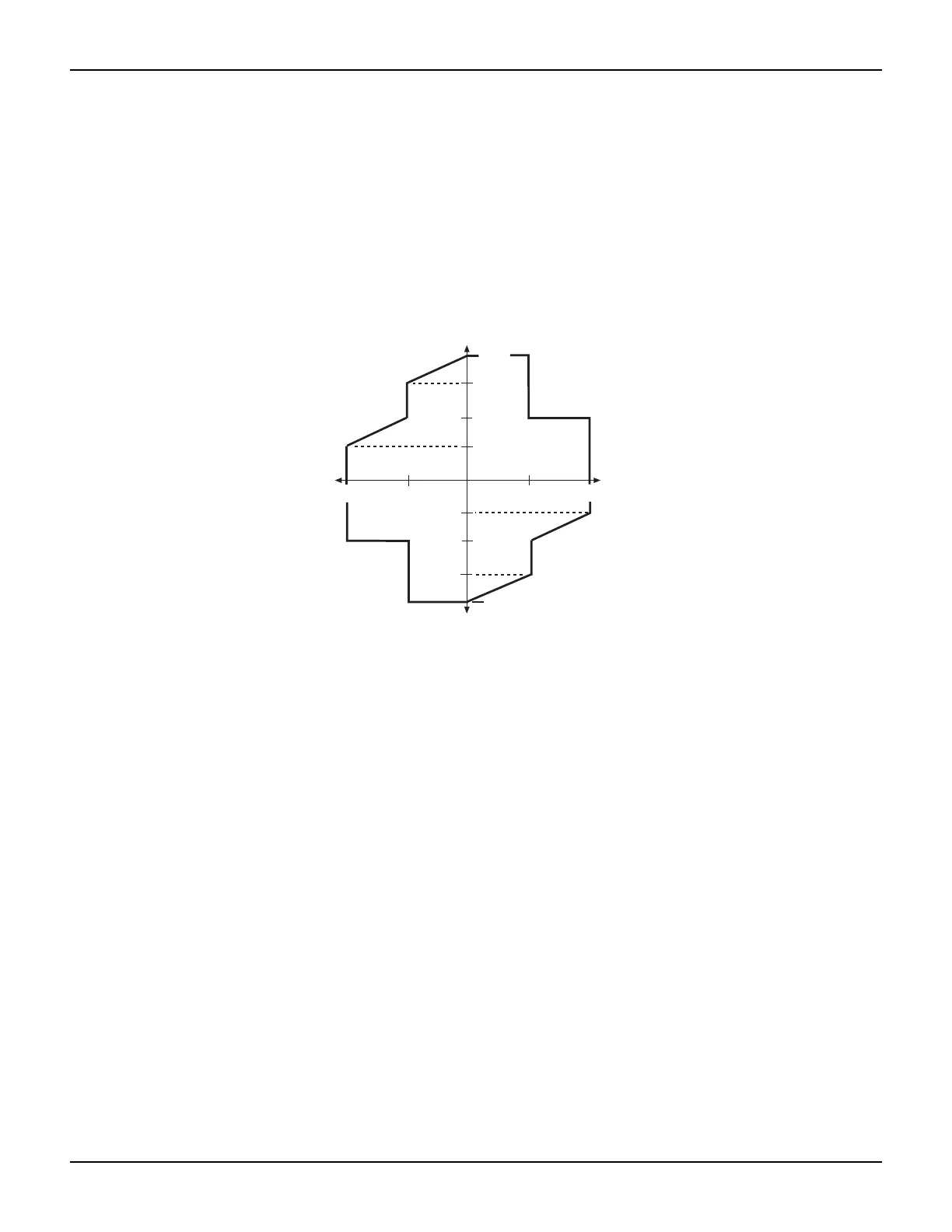

Figure 8-3
Model 2601/2602 continuous power operating boundaries
-V
+V
-40V
(IV)
Sink
+I
3A
1A
-6V
6V
40V
(III)
Source
(II)
Sink
-1A
-3A
-I
(I)
Source
-2.2A
-600mA
600mA
2.2A
Energy storage DUT
Energy storage DUT
£ 30°C
T
amb
Model 2611/2612 continuous power operating boundaries
The general operating boundaries for Model 2611/2612 continuous power output are shown in
Figure 8-4 (see "General SourceMeter power equation" in this section for derating factors). In this
drawing, the 1.5A, 20V and 100mA, 200V magnitudes are nominal values. Also note that the
boundaries are not drawn to scale.
