2-24 Return to Section Topics 2600S-901-01 Rev. C / January 2008
Section 2: TSP Programming Series 2600 System SourceMeter® Instruments Reference Manual

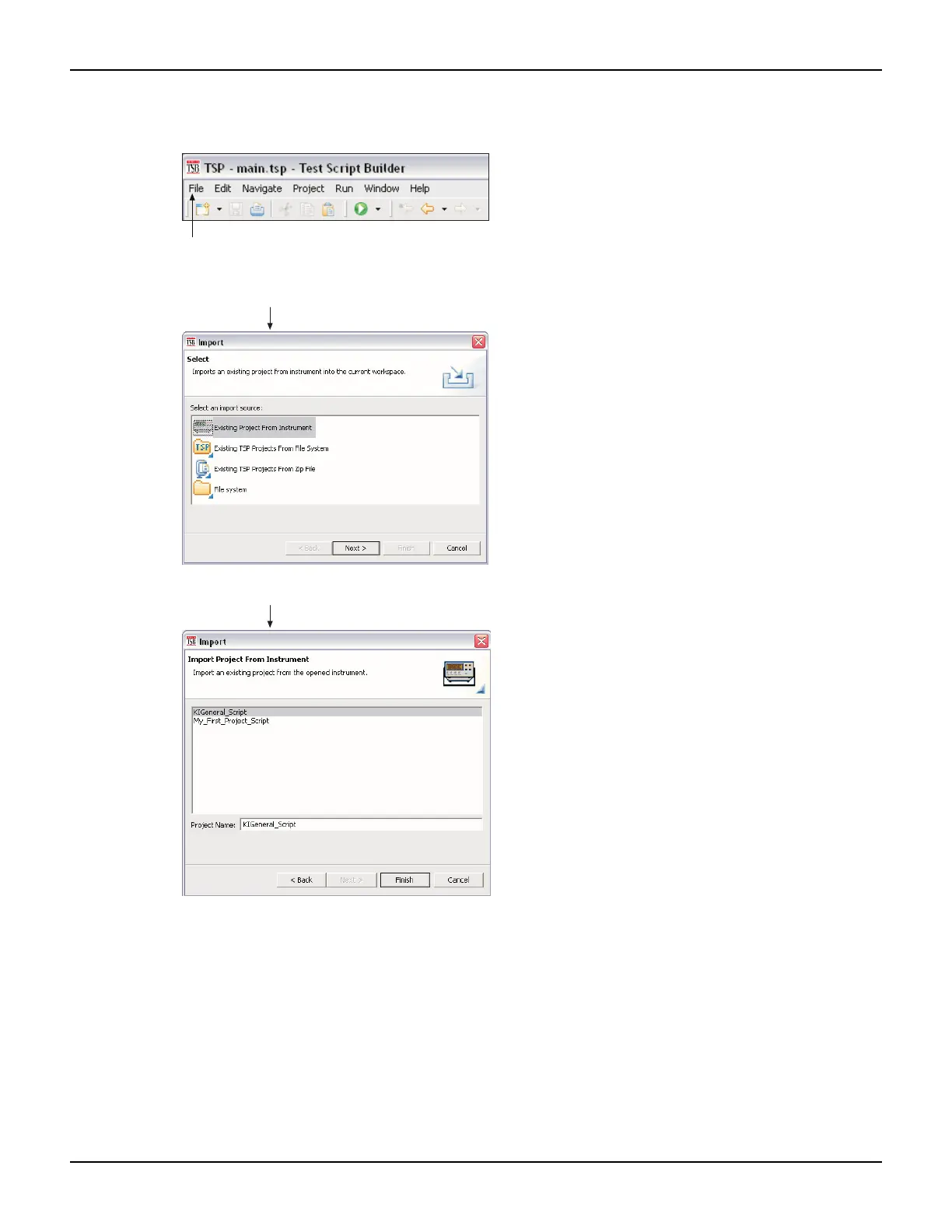

Figure 2-17
Importing a script from memory of the
A) Click File to display the drop-down file menu
and click Import to open the Import wizard.
B) In the Import Select box, click Existing Project
From Instrument and then click Next.
C) In the Import Project From Instrument box, click
the KIGeneral_Script project, and then click Finish.
Series 2600
Instrument Console
With communications established with the SourceMeter, the Instrument Console is used for the
following operations:
• Execute chunks, which are individual ICL commands and TSL programming statements.
• Display returned data (readings and messages).
• Display error messages caused by erroneous code sent from the Instrument Console.
The instrument console is opened by clicking the Instrument Console tab in the lower window
pane of the Test Script Builder (see
Figure 2-5).
