3706 Multimeter / Switch System
Rev A 9/14/07
End
GENERAL SPECIFICATIONS
EXPANSION SLOTS: 6
POWER LINE: Universal, 100V to 240V.
LINE FREQUENCY: 50Hz and 60Hz, automatically sensed at power-up.
POWER CONSUMPTION: 28VA with DMM and display, up to 140VA with ( 6 ) 3700 cards.
OPERATING ENVIRONMENT: Specified for 0qC to 50qC, 80%RH at 35qC, altitude up to 2000 meters
STORAGE ENVIRONMENT: -40qC to 70qC.
REAL TIME CLOCK: Battery backed, 10-years typical life.
WARRANTY: 1-yr.
EMC: Conforms to European Union Directive 2004/108/ EC EN61326-1.
SAFETY: Conforms to European Union Directive 73/23/EEC EN61010-1.
VIBRATION: MIL-PRF-28800F Class 3, Random.
WARM-UP: 2-hours to rated accuracy.
DIMENSIONS:
High Wide Deep
Rack Mounted
89mm
(3.5 in.)
483mm
(19 in.)
457mm
(18 in.)
Bench Configuration
(includes handle and feet)
104mm
(4.125 in.)
483mm
(19 in.)
457mm
(18 in.)
SHIPPING WEIGHT: 13kg (28 lbs).

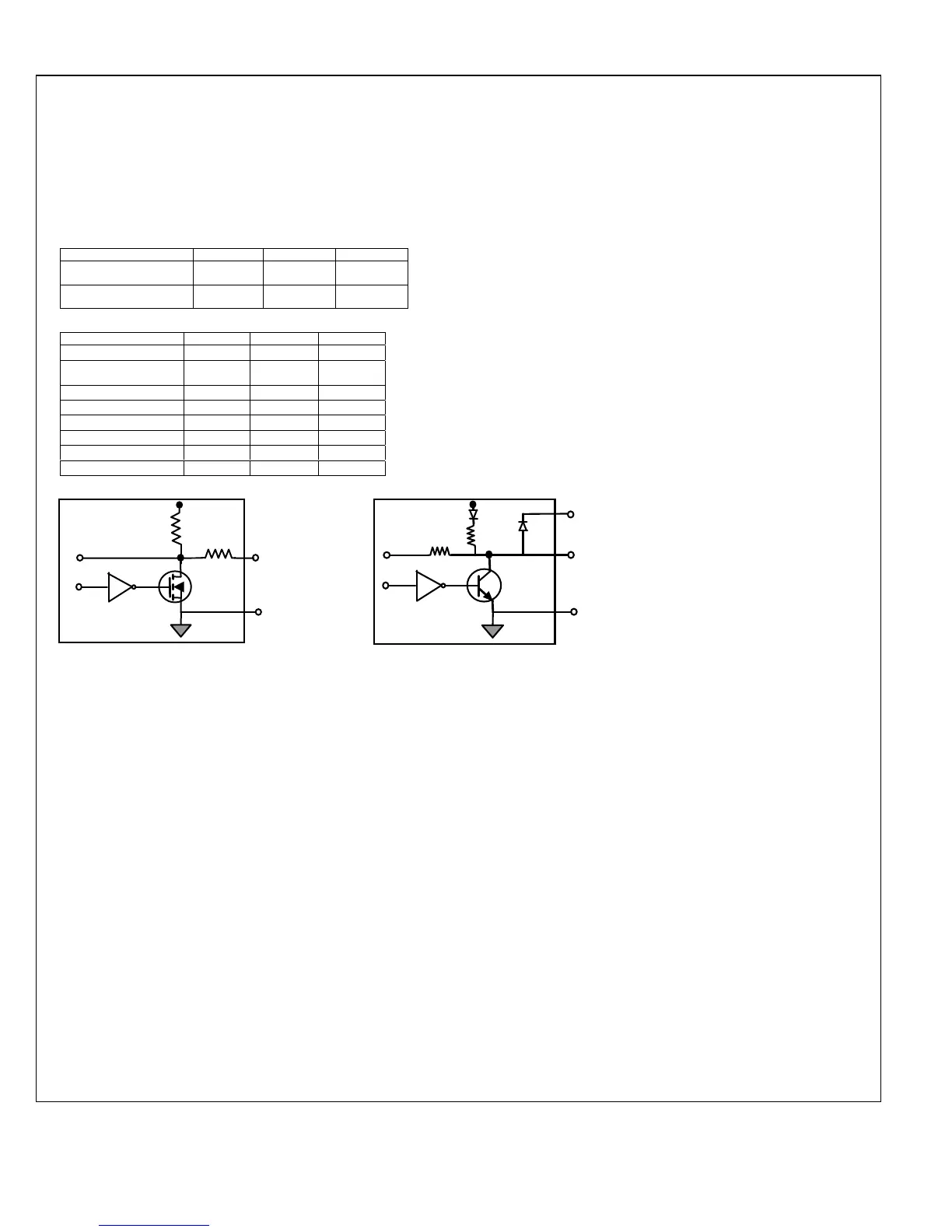

DIGITAL I/O: 25-pin female D-shell.
I/O 1-9 I/O 10-14 Vext
I
SINK
, max
5mA 250mA
Absolute V
IN
5.25V o
-0.25V
5.25V o
-0.25V
5V o
33V
V
IH
min
2.2V 2.2V
V
IL
max
0.7V 0.7V
V
OL
max at Isink max
0.7V 0.7V
V
OH
min, 0.4mA sour
2.7V 2.4V
Min V
IN
pulse
2Ps 10Ps
Min V
O
pulse
1Ps 50Ps
TRIGGERING AND MEMORY: Window Filter Sensitivity: 0.01%. 0.1%, 1%, 10%, or full-scale of range (none).
Trigger Delay: 0 to 99 hrs (10us step size)
External Trigger Delay: <10us.
Memory: Up to 650,000 time-stamped readings with web page disabled. Additional memory available with external “thumb drive”.
Non-volatile Memory: Single user save setup, with up to 75 DMM configurations and t600 Channel Patterns (dependent on name length, DMM function and
configuration, and pattern image size). Additional memory available with external “thumb drive”.
MATH FUNCTIONS: Rel, dB, Limit Test, %, 1/x, and mX + b with user defined displayed.
REMOTE INTERFACE: Ethernet: RJ-45 connector, LXI Class C, 10/100BT, no auto MDIX.
GPIB: IEEE-488.1 compliant. Supports IEEE-488.2 common commands and status model topology.
USB device (rear panel, type B): full speed, USBTMC compliant.
USB host (front panel, type A): USB 2.0, support for thumb drives.
LXI COMPLIANCE: LXI Class B with IEEE 1588 precision time protocol.
LXI TIMING (applies to scanning) and SPECIFICATION: Receive LAN[0-7] event delay: 600 us. Min, 800us. Typ., n/s Max.
Alarm to trigger delay: 25 us. Min., 50us. Typ., n/s max..
Generate LAN[0-7] event: 750 us. Min., 1000us. Typ., n/s Max.
[ minimums are probabilistic and represent a 95% confidence factor ]
Clock accuracy: 25 ppm.
Synchronization accuracy: < 150ns. [ probabilistic and represent a 95% confidence factor ]
Timestamp accuracy: 100 us.
Timestamp resolution: 20 ns.
LANGUAGE:
Embedded Test Script Processor (TSP) accessible from any host interface. Responds to individual Instrument Control Library (ICL) commands. Responds to high-speed test scripts comprised of ICL
commands and Test Script Language (TSL) statements (e.g. branching, looping, math, etc.). Able to execute high-speed test scripts stored in memory without host intervention.
ACCESSORIES SUPPLIED: Product Information CD-ROM and 3m Ethernet cable.
ACCESSORIES AVAILABLE: 3700 Cards, 3700-MTC cables, 3706-BKPL (analog backplane extender), 3706-3Y/5Y-EW (extended warranty)
C/3706-3Y (Calibration / Data / ISO 17025), Software IVI/VISA drivers for VB, VC/C++, LabView, TSP Script, Script Builder, and LabWindows/CVI.
IP CONFIGURATION: Static or DHCP.
PASSWORD PROTECTION: 11 characters
MINIMUM PC HARDWARE: Intel Pentium 3, 800MHz, 512Mbyte RAM, 210Mbyte disk space or better.
OPERATING SYSTEMS /SOFTWARE: Windows 2000 and XP compatible, supports Web browsers with Java plug-in (requires Java plug-in 1.6 or higher). Web pages served by 3706.
Specifications are subject to change without notice.
100
:
+5V
IN/ OUT
Read
Write
4.75k
:
G
D
Vext
I/O 1-9
100
:
+5V
IN/ OUT
Read
Write
5k
:
G
D
I/O 10 -14
