Keithley 6517A Getting Started Guide

1-6 Front Panel Operation Model 6517A Getting Started Manual

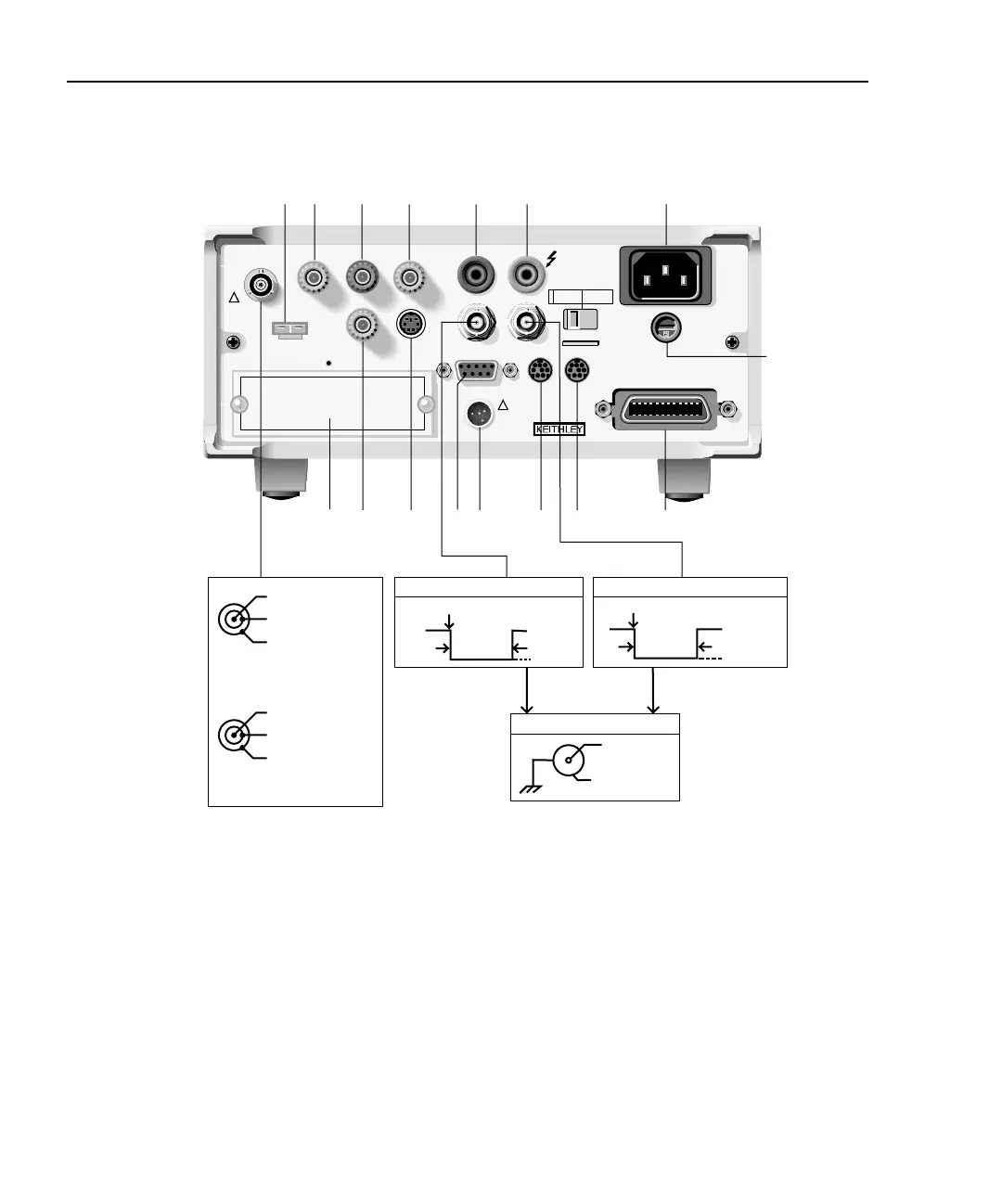

Figure 1-2
Model 6517A rear panel overview
1 INPUT CONNECTOR (see Figure 1-2)
Unguarded Configuration Disable GUARD for amps, ohms, coulombs and unguarded volts
measurements.
Guarded Configuration Enable GUARD for guarded volts measurements.
2 TEMP TYPE K Connect the Model 6517-TP type K thermocouple for temperature
measurements.
3 PREAMP OUT Follows the signal amplitude applied to the INPUT terminal. With
GUARD on, PREAMP OUT is internally connected to the inner shell of the INPUT triax
connector to configure the input for guarded volts measurements. Referenced to
COMMON. See the Model 6517A User’s Manual for more information.
BNC CONNECTIONS
HI
LO (Chassis)
>10µsec
TTL HI
TTL LO
EXTERNAL TRIGGER INPUT
Reading Complete
METER COMPLETE OUTPUT
>10µsec
TTL HI
TTL LO
Input High
Input Low
Chassis Ground
Unguarded (Guard off)
Input High
Guard
Chassis Ground
Guarded (Guard on)
Trigger Reading
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
INPUT
250V PEAK
!
LINE RATING
50-60HZ
50VA MAX
AC ONLY
LINE FUSE
SLOWBLOW
1/2A 90-125V
1/4A 180-250V
IEEE-488
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
DIGITAL
I/O
TRIG LINK
115V
LO
HI
RS232
!
MADE
IN
U.S.A.
PREAMP OUT
250 PEAK
COMMON 2V ANALOG
OUTPUT
TEMP
TYPE K
HUMIDITY
OPTION SLOT
V SOURCE
EXT TRIG
IN
MTR COMP
OUT
INTERLOCK
SELECTED
LINE VOLTAGE
90-110V
105-125V
180-220V
210-250V
1010V
PEAK
750V
PEAK
23 5 4 9 8 10
17
6 7 15 16 14 13 12
11
1
