Keithley 6517A Getting Started Guide

Model 6517A Getting Started Manual Measurement Options 2-29

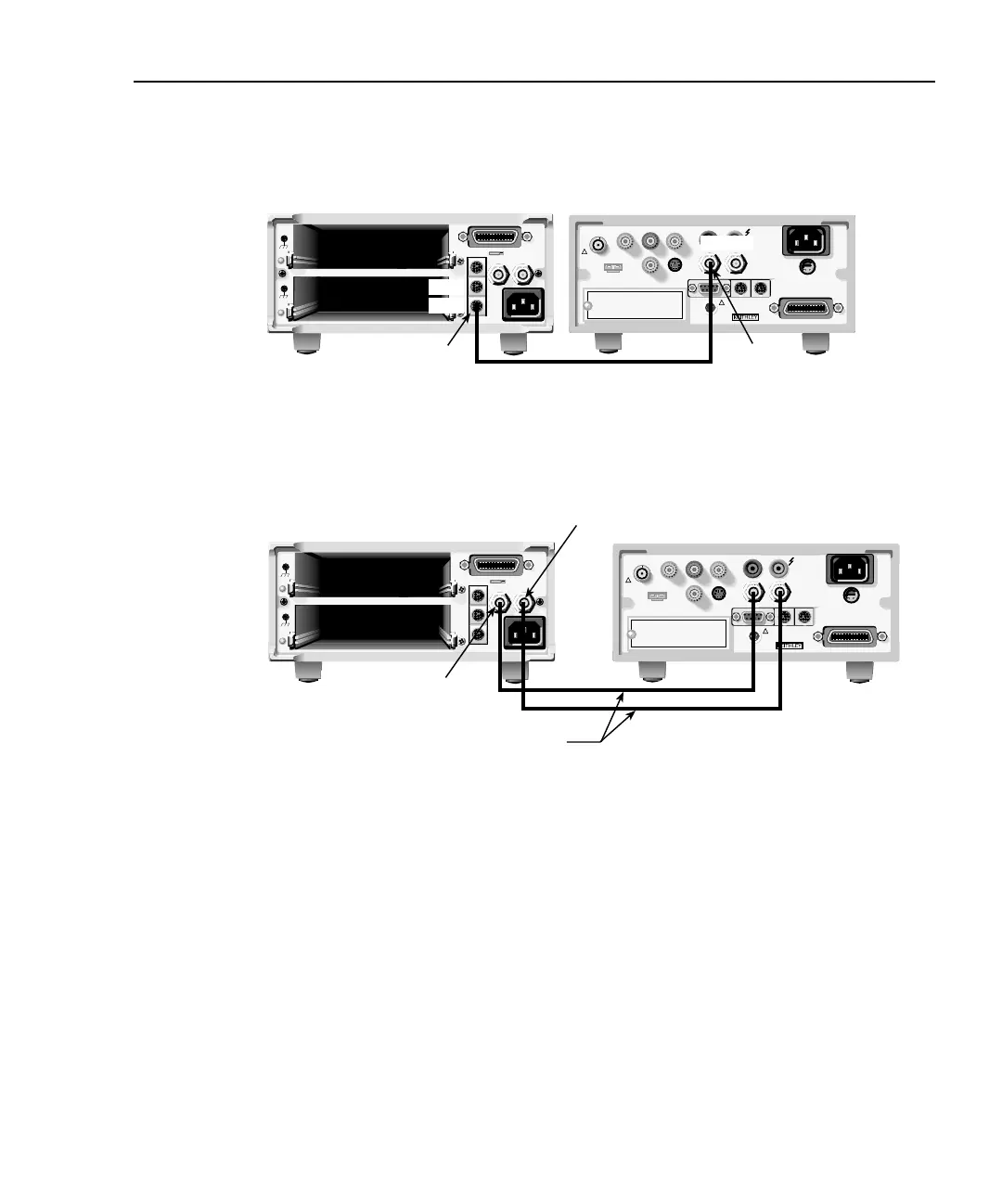

Figure 2-8
Trigger connections using trigger link
Figure 2-9
Trigger connections using conventional external triggering
Configure external channels
The scanner configuration menu is used to specify the number of channels (external
inputs) for the scan. If a scanner card is installed in the option slot of the Model 6517A,
use procedure A. If the option slot is empty, use procedure B.
Procedure A — Scanner installed in option slot of Model 6517A.
1. Press CONFIG and then CARD to display the scanner configuration menu.
2. Place the cursor (using

and

keys) on EXTERNAL and press ENTER.
3. You will then be prompted to enter the number of external inputs (channels) for the
scan. Use the cursor keys and RANGE keys to change the number (1 to 400). Press
ENTER to continue.
4. Press EXIT to return to the normal measurement display.
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN USA
7001 or 7002 Switch System
6517A Multimeter
OUT
IN
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
WARNING: NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING: NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
INPUT
250V PEAK
COMMON
OUT
!
LINE RATING
90-134VAC
180-250VAC
50, 60, 400HZ
55VA MAX
LINE FUSE
SLOWBLOW
1/2A, 250V
IEEE-488
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
PREAMP OUT
250V PEAK
V SOURCE
LO HI
INTERLOCK
!
IN OUT
Trigger
Link
Trigger
Link
Trigger Link Cable (8501)
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN USA
7001 or 7002 Switch System
6517A Multimeter
Channel
Ready
7051-2
BNC to BNC
Cables (2)
Meter
Complete
Output
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
WARNING: NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING: NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
INPUT
250V PEAK
COMMON
OUT
!
LINE RATING
90-134VAC
180-250VAC
50, 60, 400HZ
55VA MAX
LINE FUSE
SLOWBLOW
1/2A, 250V
IEEE-488
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
PREAMP OUT
250V PEAK
V SOURCE
LO HI
INTERLOCK
!
External
Trigger
External
Trigger Input
