Kenwood C-V751 User Manual

39

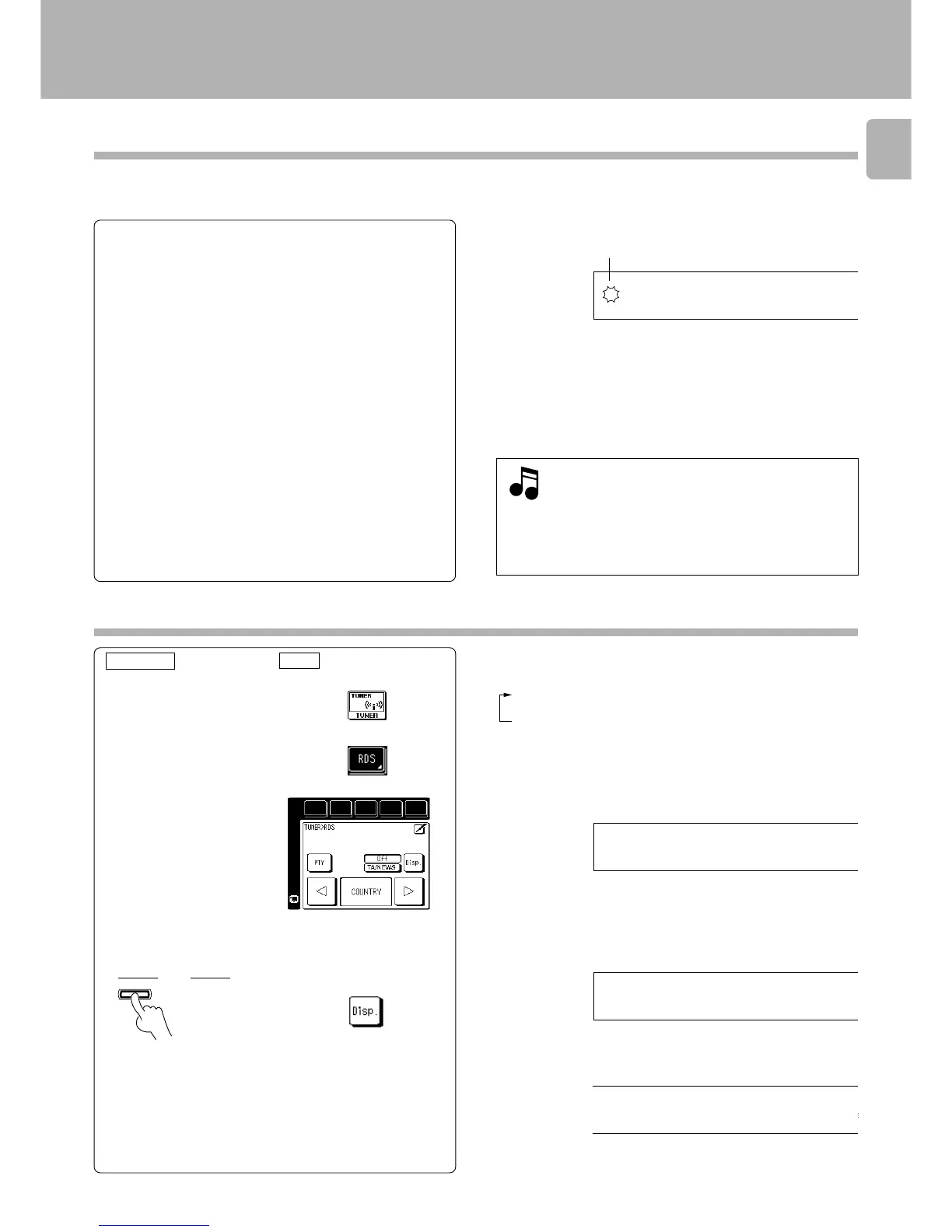

Listening to radio broadcasts
Functions of RDS
(Radio Data System)
Functions made possible with RDS
PTY (Program Type Identification) Search :
The tuner automatically searches for a station which is currently
broadcasting a specified program type (genre).
e
EON (Enhanced Other Network) reservation
By selecting one of the two kinds of program previously, the tuner
switches automatically to a station broadcasting that kind of program
whenever it starts broadcasting. When the broadcasting completes,
the tuner returns automatically to the originally-received station.
t
PS (Program Service Name) display : See figure 1 below.
When an RDS broadcast is received, the station name is automatically
displayed.
RT (Radio Text) display :See figure 2 below.
Some of the RDS stations also transmit text data.
When the RT display is selected with the RT key, the broadcast text
is scrolled on the display.
AUTO MEMORY
This function automatically selects the stations providing RDS and
FM broadcasting and stores them in the preset memory (up to 40
stations can be preset).
‚
RDS
DISPLAY
RDS is a system which transmits useful information (digital data) for FM broadcasts together with the broadcast signal. Tuners
and receivers designed for RDS reception can extract the information from the broadcast signal for use with various functions
such as automatic display of the station name.
÷ Some functions may not be provided or be given different names
depending on countries or areas.
Before using a function utilizing the RDS, be sure to
perform the AUTO MEMORY operation by referring to the
description in “Presetting RDS stations (AUTO MEMORY)”.
‚
Pressing the RDS DISPLAY key
changes the display contents.
1 PS (Program Service Name) display :
When an RDS broadcast is received, the station name is automati-
cally displayed.
If no PS data was sent, “NO PS” is displayed.
Display mode priority ranking
When an FM broadcast is received :
1 PS (Program Service Name) display
2 RT (Radio Text) display
3 Frequency display
Text is scrolled from the right to the left.
Main unit
RDS DISPLAY key
KHz
T
KHz
T
FM
LW
MW
AUTO AUTO
AUTO STEREO
MEMO.
TUNED
MUTE
RDS
EON
TP
PTY TA NEWS
CLIP
PRO
L
PRO
L
AM
MHz MHz
DTS DTS
B
B
C
1FM
KHz
T
KHz
T
FM
LW
MW
AUTO AUTO
AUTO
MEMO.
TUNED
MUTE
RDS
EON
TP
PTY TA NEWS
CLIP
PRO
L
PRO
L
AM
MHz MHz
DTS DTS
B
B
C
1FM
STEREO
KHz TI
M
FM
LW
MW
AUTO S
O
AUTO
MEMO.
TUNED
MUTE
RDS
EON
TP
PTY TA NEWS
CLIP
PRO LO
G
AM
DTS DO
L
1 ) 25 )
__
MHz SL
E
.
STEREO
KHz
T
FM
LW
MW
AUTO
AUTO
MEMO.
TUNED
MUTE
RDS
EON
TP
PTY TA NEWS
CLIP
PRO
L
AM
MHz
DTS
ABCDEFGH
STEREO
2 RT (Radio Text) display:
Text accompanying RDS broadcast is scrolled on the display during
reception. “NO RT” is displayed if the received RDS station is not
accompanied with RT data.
3 Frequency display :
The frequency of the current station is displayed.
GRC
The RDS indicator lights up when an
RDS broadcast (signal) is received.
(Select the icon)

Kenwood C-V751 Specifications

General

harmonic distortion	0.01 %
signal to noise ratio	93 dB
sensitivity / impedance	200 mV / 47kΩ
controls S	± 10 dB (at 100 Hz)
BLE	± 10 dB (at 10 kHz)
level / impedance E REC	200 mV / 1 kΩ
composite	1 Vp-p/75 Ω
sampling frequency	32 kHz, 44.1 kHz, 48 kHz
input (coaxial)	0.5 Vp-p/75 Ω
optical	-15 dBm~-21 dBm, 600 nm ± 30 nm
frequency range	87.5 MHz~108 MHz
sensitivity (DIN) O	1.2 µV (at 75 Ω) / 13.2 dBf (40 kHz dev., S/N 26 dB)
sensitivity (DIN) REO	35 µV (at 75 Ω) / 42 dBf (46 kHz dev., S/N 46 dB)
signal to noise ratio (DIN weighted at 1 kHz, 40 kHz dev.) O	65 dB (65.2 dBf input)
signal to noise ratio (DIN weighted at 1 kHz, 40 kHz dev.) REO	60 dB (65.2 dBf input)
sensitivity (DIN ± 300 kHz)	64 dB
separation (DIN, 1 kHz)	36 dB
frequency response	30 Hz~15 kHz, + 0.5 dB, – 3.0 dB
tuning frequency range	531 kHz ~ 1, 602 kHz
usable sensitivity (30% mod., S/N 20 dB)	20 µV / (700 µV / m)
signal to noise ratio (at 30% mod. 1mV input)	48 dB
tuning frequency range	531 kHz ~ 1, 602 kHz
usable sensitivity (30% mod., S/N 20 dB)	20 µV / (700 µV / m)
signal to noise ratio (at 30% mod. 1mV input)	48 dB
tuning frequency range	153 kHz ~ 279 kHz
usable sensitivity (30% mod., S/N 20 dB)	35 µV
signal to noise ratio (at 30% mod. 1mV input)	45 dB
power consumption	35 W
dimensions (W x H x D)	400 mm x 105 mm x 382 mm
weight (net)	5.2 kg
weight (net) (For Australia)	5.1 kg
