Kenwood C-V751 User Manual

7
System connection
L
R
REC
PLAY
REC
PLAY
PLAY
PLAY
PLAY
REC
DVD/
6CH.INPUT
MONITOR
OUT
PLAY
REC
PLAY
VIDEO 1 VIDEO 2
VIDEO
FRONT
CD MD/TAPE 1
TAPE 2/MON
CD
(OPTICAL 1)
DVD
(COAXAL)
DIGITAL IN
COAX. OPT.
DIGITAL OUTPUT
COAX.
RF INPUT
AC-3 RF
DIGITAL INPUT
DC IN
COAXIAL DIGITAL OUT
AC-3 RF OUT
AC-3 RF Demodulator
(DEM-9991D) (option)
Make connections as shown below.
The digital in jacks can accept DTS, Dolby Digital (AC-3) or PCM signals. Connect components capable of outputting DTS, Dolby
Digital (AC-3) or standard PCM (CD) format digital signals.
When connecting the related system components, be sure to also refer to the instruction manuals supplied with the
components you are connecting.
Do not connect the power cord to a wall outlet until all connections are completed.

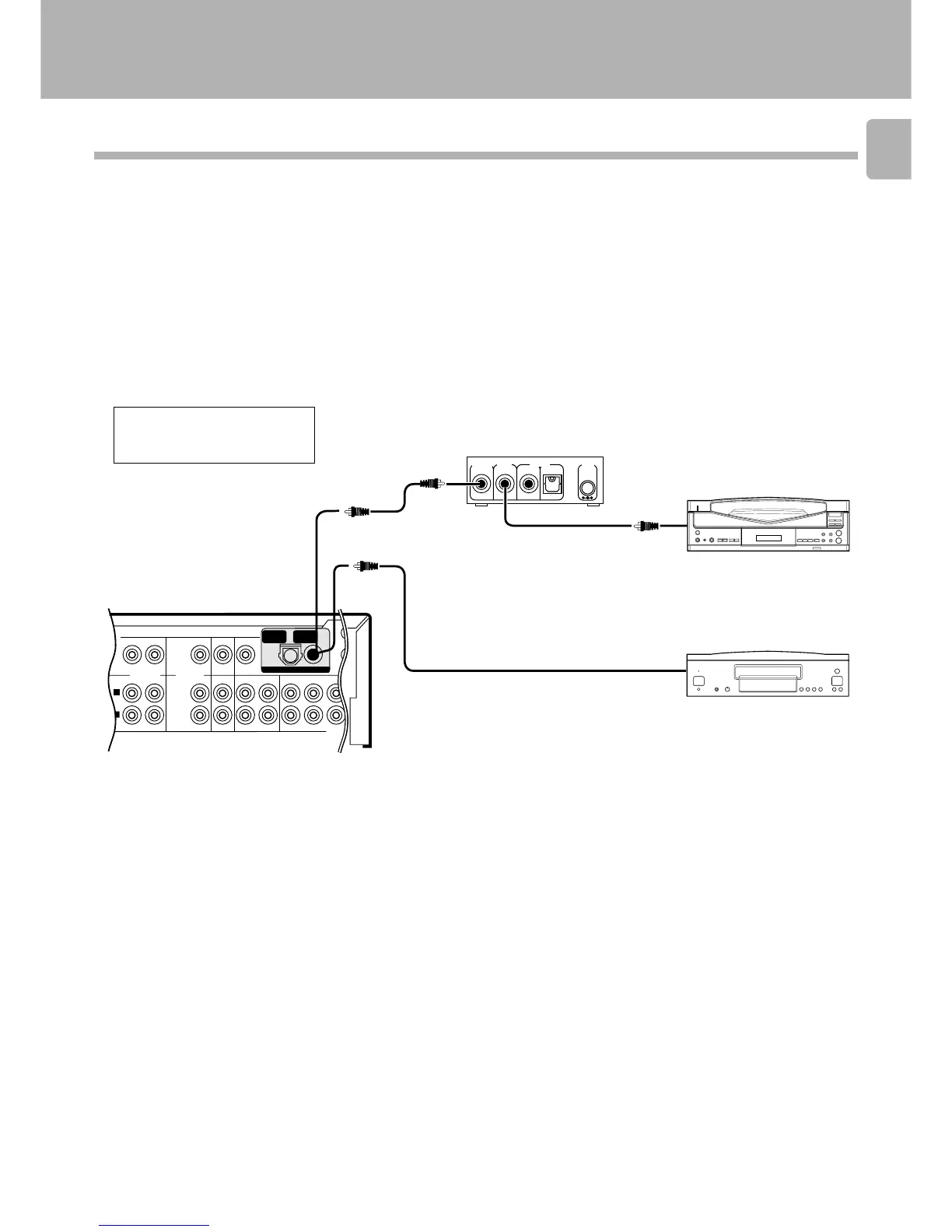

Digital connections
Connect components capable of output-
ting Dolby Digital (AC-3) or standard PCM
format digital signals.
To connect an LD player with a DIGITAL RF OUT.
Connect the LD player to the KENWOOD RF digital demodulator (DEM-9991D).
Then connect the demodulator to the AC-3 AUDIO INPUT DIGITAL IN.
Connect the video signal and analog audio signals to LD jacks (See "Connection
of video components".)
6
Connect the video signal and analog audio
signals to the DVD jacks.
(See "Connection of video components".)
6
The connected components are given as examples because the avail-
able models vary depending on marketing areas.
To connect a DVD player
with a DIGITAL OUT
RCA pin cord
To connect an LD player
with a DIGITAL OUT
AC-3 DIGITAL OUT
An LD player and DVD player can-
not be connected simultaneously
when an RF demodulator is used.

Kenwood C-V751 Specifications

General

harmonic distortion	0.01 %
signal to noise ratio	93 dB
sensitivity / impedance	200 mV / 47kΩ
controls S	± 10 dB (at 100 Hz)
BLE	± 10 dB (at 10 kHz)
level / impedance E REC	200 mV / 1 kΩ
composite	1 Vp-p/75 Ω
sampling frequency	32 kHz, 44.1 kHz, 48 kHz
input (coaxial)	0.5 Vp-p/75 Ω
optical	-15 dBm~-21 dBm, 600 nm ± 30 nm
frequency range	87.5 MHz~108 MHz
sensitivity (DIN) O	1.2 µV (at 75 Ω) / 13.2 dBf (40 kHz dev., S/N 26 dB)
sensitivity (DIN) REO	35 µV (at 75 Ω) / 42 dBf (46 kHz dev., S/N 46 dB)
signal to noise ratio (DIN weighted at 1 kHz, 40 kHz dev.) O	65 dB (65.2 dBf input)
signal to noise ratio (DIN weighted at 1 kHz, 40 kHz dev.) REO	60 dB (65.2 dBf input)
sensitivity (DIN ± 300 kHz)	64 dB
separation (DIN, 1 kHz)	36 dB
frequency response	30 Hz~15 kHz, + 0.5 dB, – 3.0 dB
tuning frequency range	531 kHz ~ 1, 602 kHz
usable sensitivity (30% mod., S/N 20 dB)	20 µV / (700 µV / m)
signal to noise ratio (at 30% mod. 1mV input)	48 dB
tuning frequency range	531 kHz ~ 1, 602 kHz
usable sensitivity (30% mod., S/N 20 dB)	20 µV / (700 µV / m)
signal to noise ratio (at 30% mod. 1mV input)	48 dB
tuning frequency range	153 kHz ~ 279 kHz
usable sensitivity (30% mod., S/N 20 dB)	35 µV
signal to noise ratio (at 30% mod. 1mV input)	45 dB
power consumption	35 W
dimensions (W x H x D)	400 mm x 105 mm x 382 mm
weight (net)	5.2 kg
weight (net) (For Australia)	5.1 kg
