System connection
SYSTEM
CONTROL
SYSTEM
CONTROL
SYSTEM
CONTROL
ANTENNA
AM
FM 75Ω
GND
CONNECT WITH
POWER AMPLIFIER
UNSWITCHED
SYSTEM
CONTROL
L
R
When this unit is connected to KENWOOD audio component system “SERIES 21”, also connect them through the system control cords
to allow system-control operations between components.
AV
CONTROL
CENTER
POWER
AMPLIFIER
MD recorder
CD
PLAYER

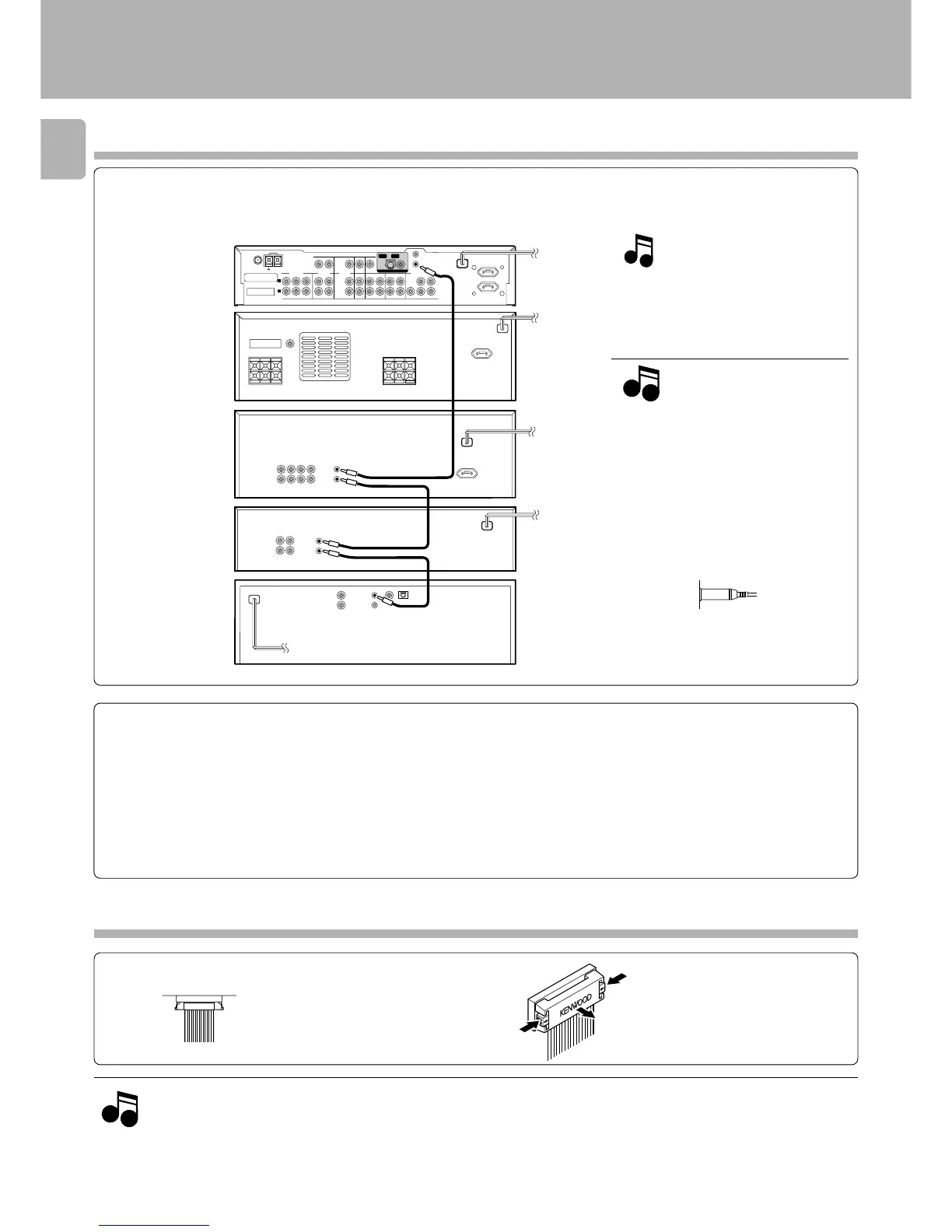

Connection example
The SERIES 21 components which can be
system-connected with this unit include
the LD player, MD recorder and DVD player.
Inserting the connector
Push and hold the two ends of the
connector, and pull it straight
outward.
Connection of flat-cable connector
Push in the
connector straight
into the socket until it
clicks to indicate the
locking.
System
control cord
System
control cord
Removing the connector
About the system control connections
1. Do not connect the SERIES 21 components
to other system components using system
control cords.
2. Do not connect system control cords to any
components other than those specified by
KENWOOD. It may cause a malfunction and
damage your equipment.
3. Be sure the system control plugs are in-
serted all the way in to the system control
terminals.
About the system control operations
(Available operations when SERIES 21 components are connected through system control cords)
Remote Control *
Lets you operate source components with the system remote supplied with this unit.
Automatic Operation ™
When you start playback from a source component, the input selector on this unit switches to that component automatically. (Except TAPE 2)
Synchronized Recording ⁄
Lets you synchronize recording with the start of playback when recording from CD etc.
1. Connect all cords firmly. If connections are loose, there could be loss of sound or noise produced.
2. When plugging and unplugging connection cords, be sure to first remove the power cord from the AC outlet. Plugging / unplugging
connection cords without removal of the power cord can cause malfunctions or damage to the unit.
3. Do not connect up a power source which is larger than that indicated on the socket at the rear of the unit.
4. If the system control cords or audio cords are not connected properly, the remote control or automatic operation between system
components will not work properly.
NotesNotes
Notes
NotesNotes
Notes
System
control cord
GRAPHIC
EQUALIZER

Kenwood C-V751 Specifications

General

harmonic distortion	0.01 %
signal to noise ratio	93 dB
sensitivity / impedance	200 mV / 47kΩ
controls S	± 10 dB (at 100 Hz)
BLE	± 10 dB (at 10 kHz)
level / impedance E REC	200 mV / 1 kΩ
composite	1 Vp-p/75 Ω
sampling frequency	32 kHz, 44.1 kHz, 48 kHz
input (coaxial)	0.5 Vp-p/75 Ω
optical	-15 dBm~-21 dBm, 600 nm ± 30 nm
frequency range	87.5 MHz~108 MHz
sensitivity (DIN) O	1.2 µV (at 75 Ω) / 13.2 dBf (40 kHz dev., S/N 26 dB)
sensitivity (DIN) REO	35 µV (at 75 Ω) / 42 dBf (46 kHz dev., S/N 46 dB)
signal to noise ratio (DIN weighted at 1 kHz, 40 kHz dev.) O	65 dB (65.2 dBf input)
signal to noise ratio (DIN weighted at 1 kHz, 40 kHz dev.) REO	60 dB (65.2 dBf input)
sensitivity (DIN ± 300 kHz)	64 dB
separation (DIN, 1 kHz)	36 dB
frequency response	30 Hz~15 kHz, + 0.5 dB, – 3.0 dB
tuning frequency range	531 kHz ~ 1, 602 kHz
usable sensitivity (30% mod., S/N 20 dB)	20 µV / (700 µV / m)
signal to noise ratio (at 30% mod. 1mV input)	48 dB
tuning frequency range	531 kHz ~ 1, 602 kHz
usable sensitivity (30% mod., S/N 20 dB)	20 µV / (700 µV / m)
signal to noise ratio (at 30% mod. 1mV input)	48 dB
tuning frequency range	153 kHz ~ 279 kHz
usable sensitivity (30% mod., S/N 20 dB)	35 µV
signal to noise ratio (at 30% mod. 1mV input)	45 dB
power consumption	35 W
dimensions (W x H x D)	400 mm x 105 mm x 382 mm
weight (net)	5.2 kg
weight (net) (For Australia)	5.1 kg
