Kenwood C-V751 User Manual

9
System connection
ANTENA
AM
FM 75Ω
GND
ANTENNA
AM
FM 75Ω
GND
ANTENA
AM
FM 75Ω
GND
ANTENNA
AM
FM 75Ω
GND
ANTENA
AM
FM 75Ω
GND

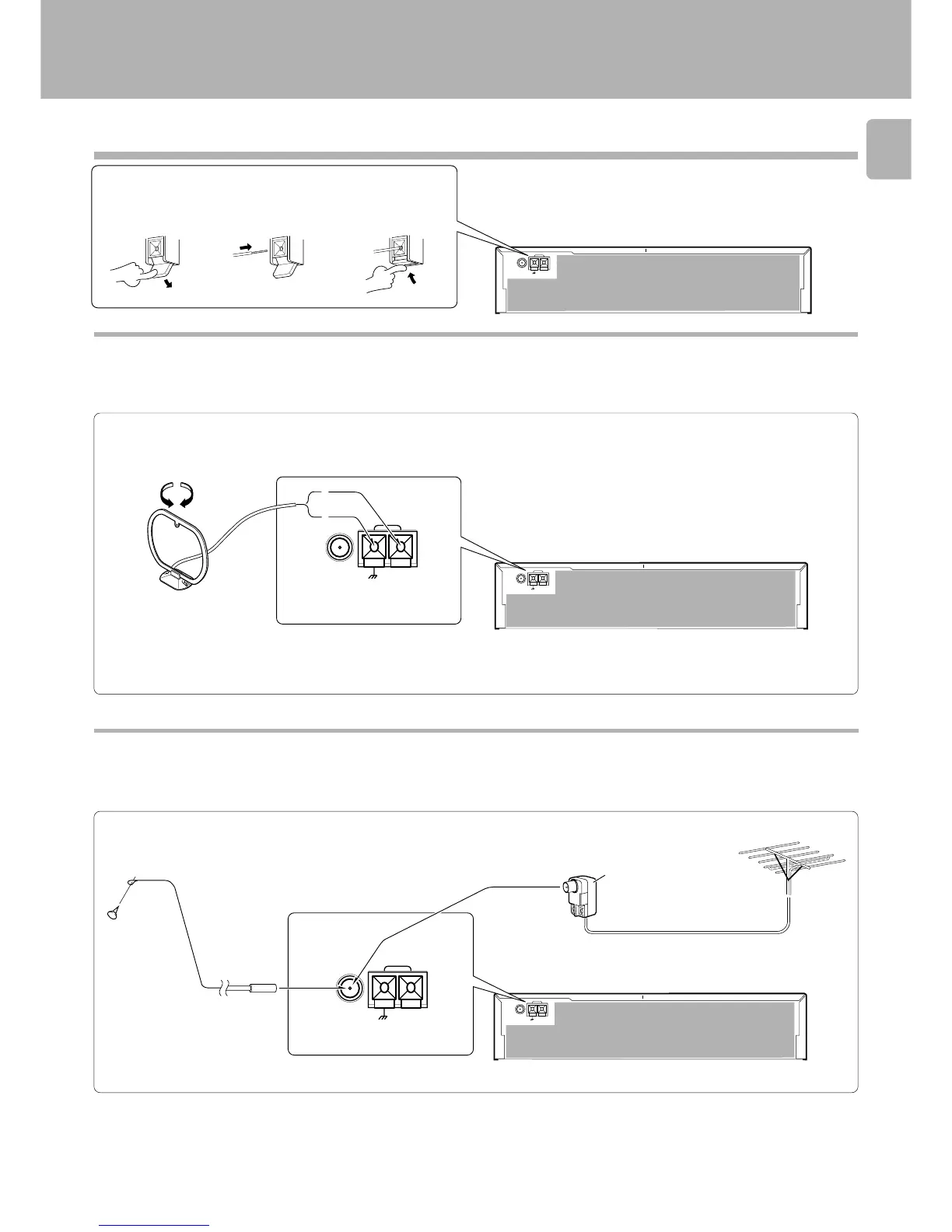

Connection of antenna
Connection method to each antenna terminal
1 Push lever. 2 Insert cord. 3 Return lever.
AM loop antenna connection
The supplied antenna is for indoor use. Place it as far as possible from the
main system, TV set, speaker cords and power cord, and set it to a
direction which provides the best reception.
FM outdoor antenna connection
Lead the 75 Ω coaxial cable connected to the FM outdoor antenna into
the room and connect it to the FM 75 Ω terminal.
FM indoor antenna connection
The accessory antenna is for temporary indoor use only. For stable signal
reception we recommend using an outdoor antenna. Remove the indoor
antenna if you connect one outdoors.
Use the commercially
available antenna adaptor.

Kenwood C-V751 Specifications

General

harmonic distortion	0.01 %
signal to noise ratio	93 dB
sensitivity / impedance	200 mV / 47kΩ
controls S	± 10 dB (at 100 Hz)
BLE	± 10 dB (at 10 kHz)
level / impedance E REC	200 mV / 1 kΩ
composite	1 Vp-p/75 Ω
sampling frequency	32 kHz, 44.1 kHz, 48 kHz
input (coaxial)	0.5 Vp-p/75 Ω
optical	-15 dBm~-21 dBm, 600 nm ± 30 nm
frequency range	87.5 MHz~108 MHz
sensitivity (DIN) O	1.2 µV (at 75 Ω) / 13.2 dBf (40 kHz dev., S/N 26 dB)
sensitivity (DIN) REO	35 µV (at 75 Ω) / 42 dBf (46 kHz dev., S/N 46 dB)
signal to noise ratio (DIN weighted at 1 kHz, 40 kHz dev.) O	65 dB (65.2 dBf input)
signal to noise ratio (DIN weighted at 1 kHz, 40 kHz dev.) REO	60 dB (65.2 dBf input)
sensitivity (DIN ± 300 kHz)	64 dB
separation (DIN, 1 kHz)	36 dB
frequency response	30 Hz~15 kHz, + 0.5 dB, – 3.0 dB
tuning frequency range	531 kHz ~ 1, 602 kHz
usable sensitivity (30% mod., S/N 20 dB)	20 µV / (700 µV / m)
signal to noise ratio (at 30% mod. 1mV input)	48 dB
tuning frequency range	531 kHz ~ 1, 602 kHz
usable sensitivity (30% mod., S/N 20 dB)	20 µV / (700 µV / m)
signal to noise ratio (at 30% mod. 1mV input)	48 dB
tuning frequency range	153 kHz ~ 279 kHz
usable sensitivity (30% mod., S/N 20 dB)	35 µV
signal to noise ratio (at 30% mod. 1mV input)	45 dB
power consumption	35 W
dimensions (W x H x D)	400 mm x 105 mm x 382 mm
weight (net)	5.2 kg
weight (net) (For Australia)	5.1 kg
