What to do in an emergency
247

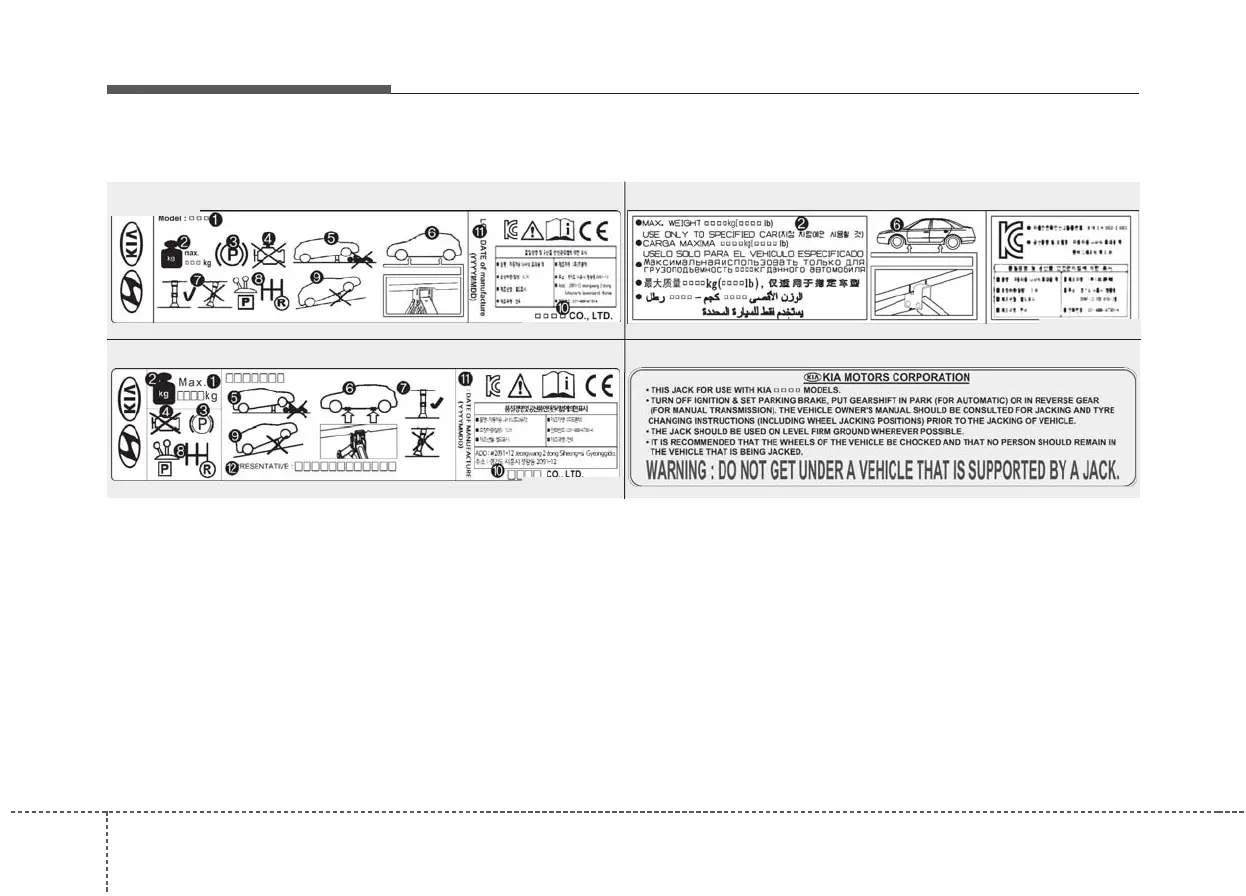

Jack label
1. Model Name
2. Maximum allowable load
3. When using the jack, set your parking brake.
4. When using the jack, stop the engine.
5. Do not get under a vehicle that is supported by a jack.
6. The designated locations under the frame
7. When supporting the vehicle, the base plate of jack
must be vertical under the lifting point.
8. Shift into Reverse gear on vehicles with manual
transaxle or move the shift lever to the P position on
vehicles with automatic transaxle / dual clutch trans-
mission.
9. The jack should be used on firm level ground.
10. Jack manufacturer
11. Production date
12. Representative company and address
❈ The actual Jack label in the vehicle may differ from the illustration.
For more detailed specifications, refer to the label attached to the jack.
OHYK064001
OHYK064005
• Type A
■ Example
• Type B
OHYK064002
OKAI064001
• Type C
• Type D (for Australia)
