1208
Maintenance
Headlamp and front fog lamp
aiming (for Europe)

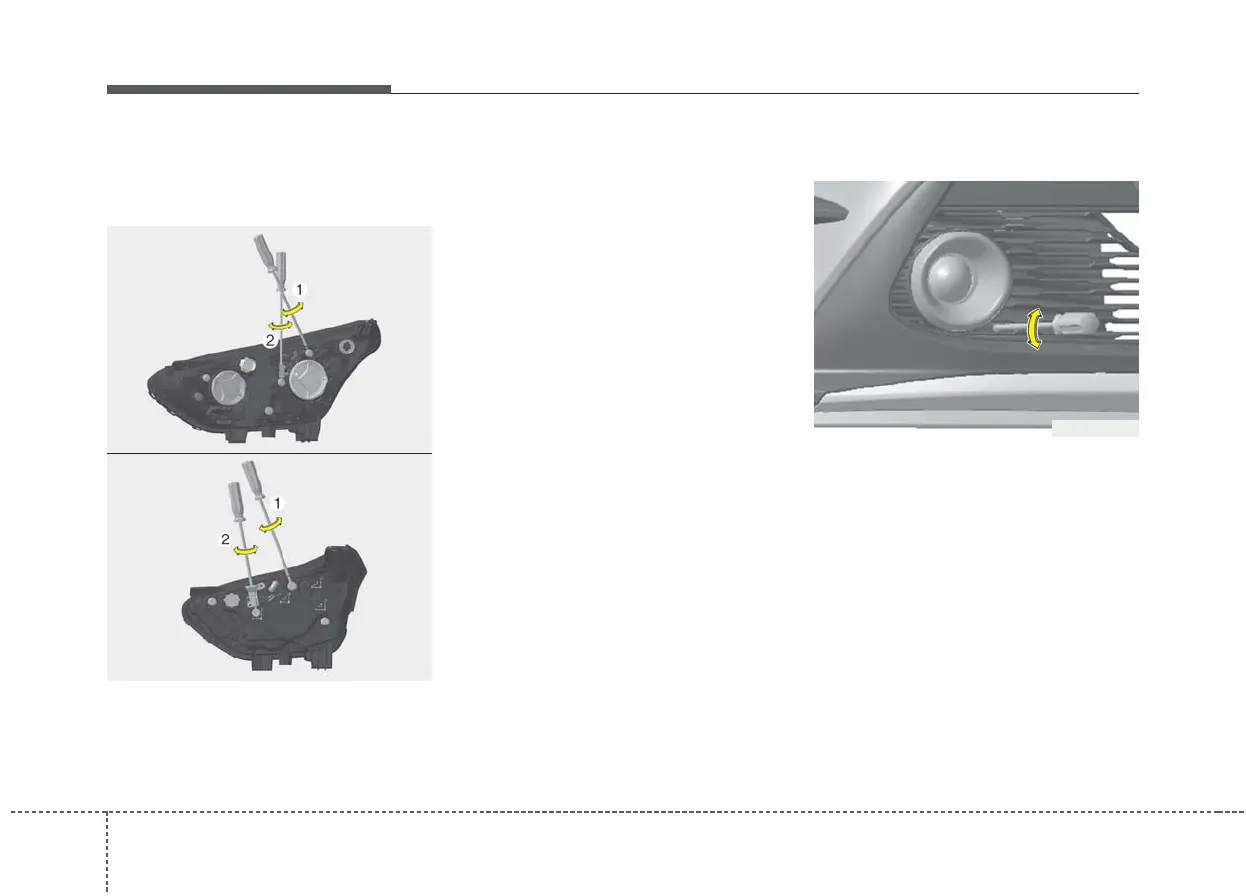

Headlamp aiming
1. Inflate the tyres to the specified
pressure and remove any loads
from the vehicle except the driver,
spare tyre, and tools.
2. The vehicle should be placed on a
flat floor.
3. Draw vertical lines (Vertical lines
passing through respective head
lamp centres) and a horizontal line
(Horizontal line passing through
centre of head lamps) on the
screen.
4. With the head lamp and battery in
normal condition, aim the head
lamps so the brightest portion falls
on the horizontal and vertical
lines.
5. To aim the low and high beams left
or right, turn the driver (1) clock-
wise or counterclockwise. To aim
the low and high beams up or
down, turn the driver (2) clockwise
or counterclockwise.
Front fog lamp aiming
The front fog lamp can be aimed as
the same manner of the head lamps
aiming.
With the front fog lamps and battery
normal condition, aim the front fog
lamps.
To aim the front fog lamp up or down,
turn the driver clockwise or counter-
clockwise.
OBD078071L
OBD078069L
OBD078070L
■ Type A
■ Type B
