Features of your vehicle
44
4

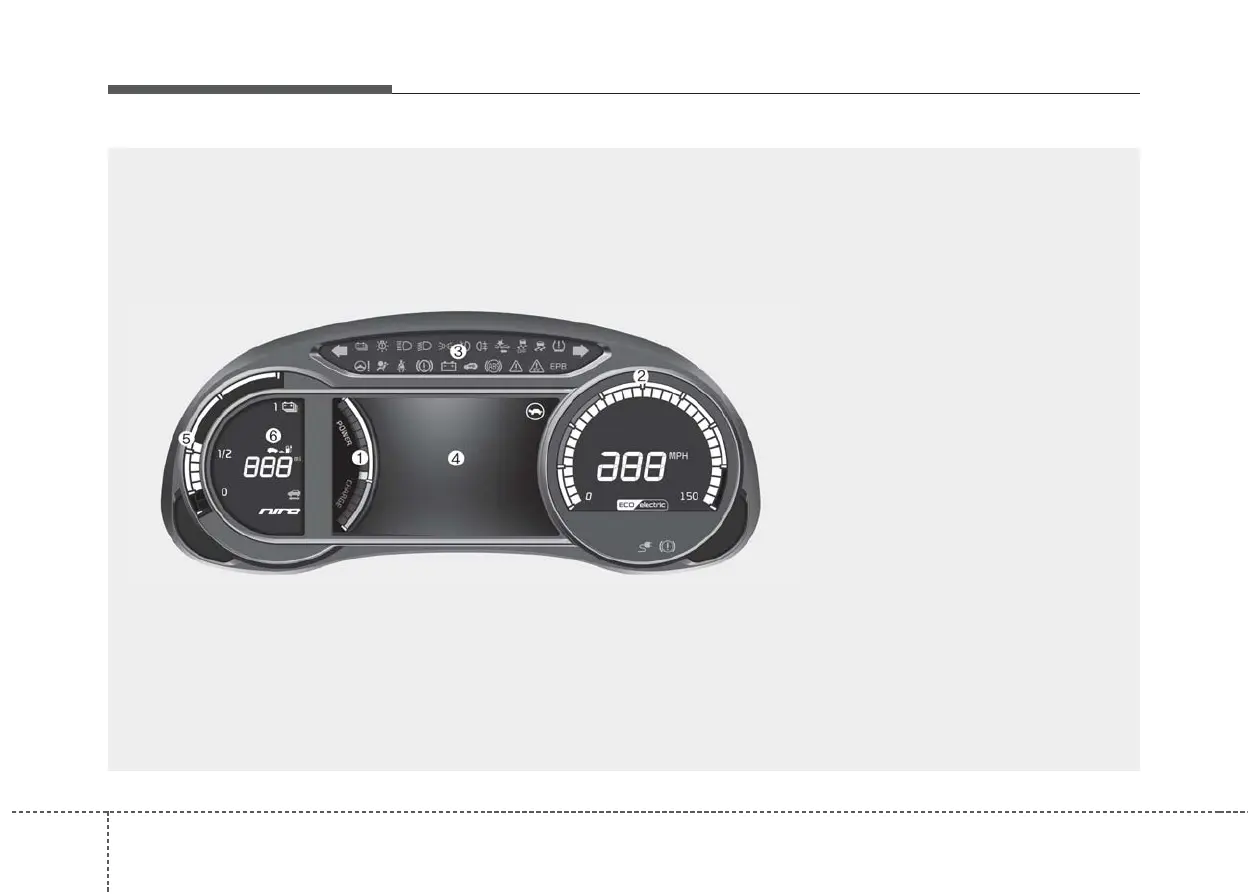

INSTRUMENT CLUSTER
ODEEV048274R
1.
P
ower/Charge gauge
2.
Speedometer
3.
Warning and indicator lights
4.
LCD displa
y(including
T
r
ip computer)
5.
Battery SOC (State of Charge) gauge
6.
Distance to empty
❈
The actual cluster and contents of the LCD displa
y in the vehicle ma
y differ from the illustration.
