TP-5737 5/012 Section 1 Specifications
1.3 Accessories
Kohler Co. offers several accessories to finalize the
installation and to add convenience to operation and
service. Accessories vary with each generator set
model and controller. Kohler Co. offers accessories
factory-installed and/or shipped loose. Some
accessories are available only with microprocessor
controllers. Obtain current information by contacting
your local authorized service distributor/dealer.
Several accessories available at the time of print of this
publication are detailed in the following subsections.
1.3.1 Remote Annunciator Kit
A remote annunciator allows convenient monitoring of
the generator set’s condition from a remote location.
See Figure 1-1. The flush-mounted annunciator panel
extends all of the fault and prealarm lights/audio of the
Decision-Maker 3+ controller. The remote annunciator
includes an alarm horn, an alarm silence switch, a lamp
test, and the same lamp indicators (except air damper
and auxiliary prealarm) as the microprocessor
controller, plus the following:
Line Power. Lamp illuminates to indicate the power
source is shore power.
Generator Power. Lamp illuminates to indicate the
power source is the generator set.
Remote Annunciator
14-Relay Dry Contact Box
A-344522-
TP-5750-1
P
FBA-- 1
42B
10 AMP
NO C CNO CNO CNO CNO CNO CNO CNO CNO CNO CNO CNO CNO CNO
K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K12 K13 K14
INPUT
CONTACT RATINGS: 10A @120VAC RES. LOAD
.01A @28VDC MIN.
10A @28VDC MAX.
PCB ASSY A--320639
LOT NO.
42A 2 K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K13 K14K12
P
N

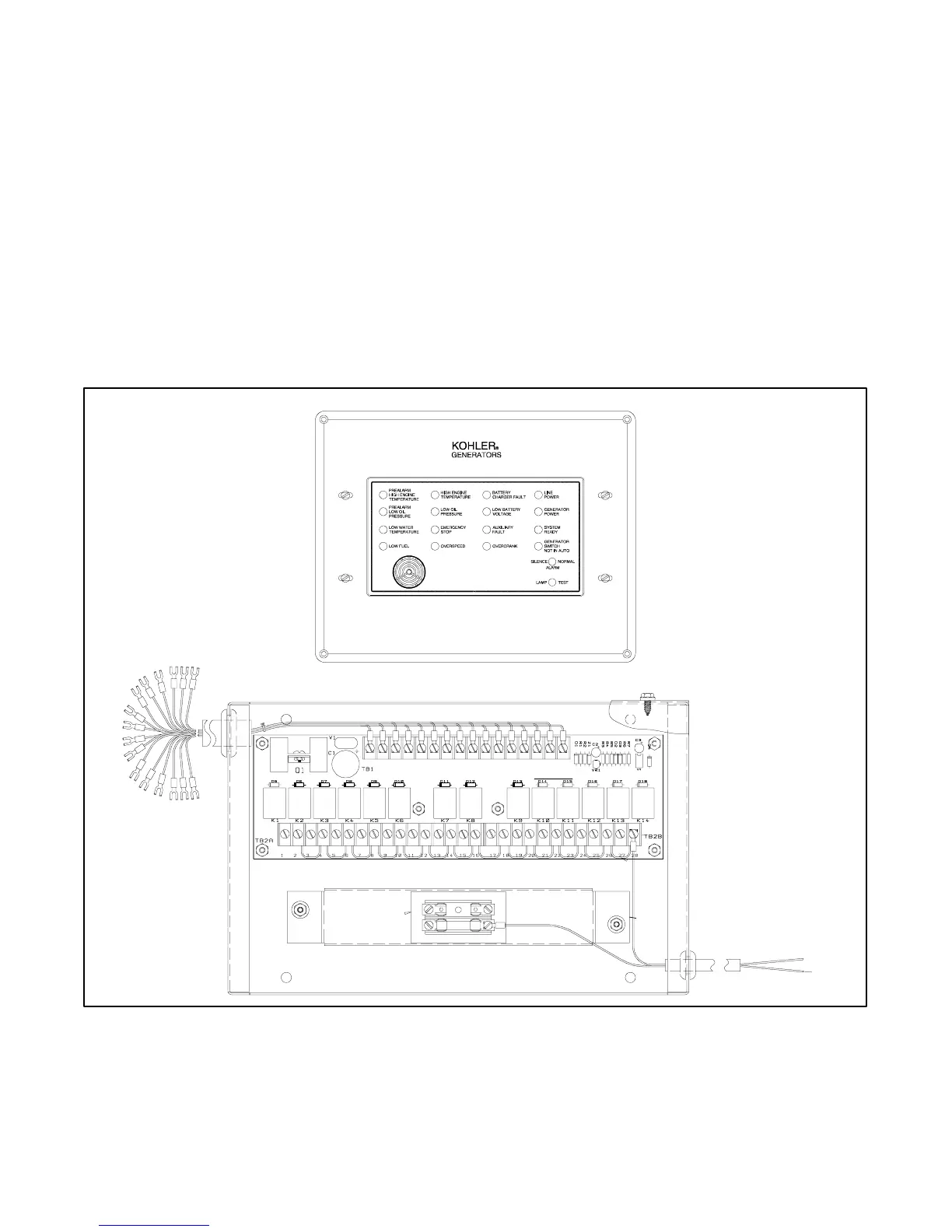

Figure 1 -1 Remote Annunciator with 14-Relay Dry Contact Kit
