TP-5737 5/01 3Section 1 Specifications

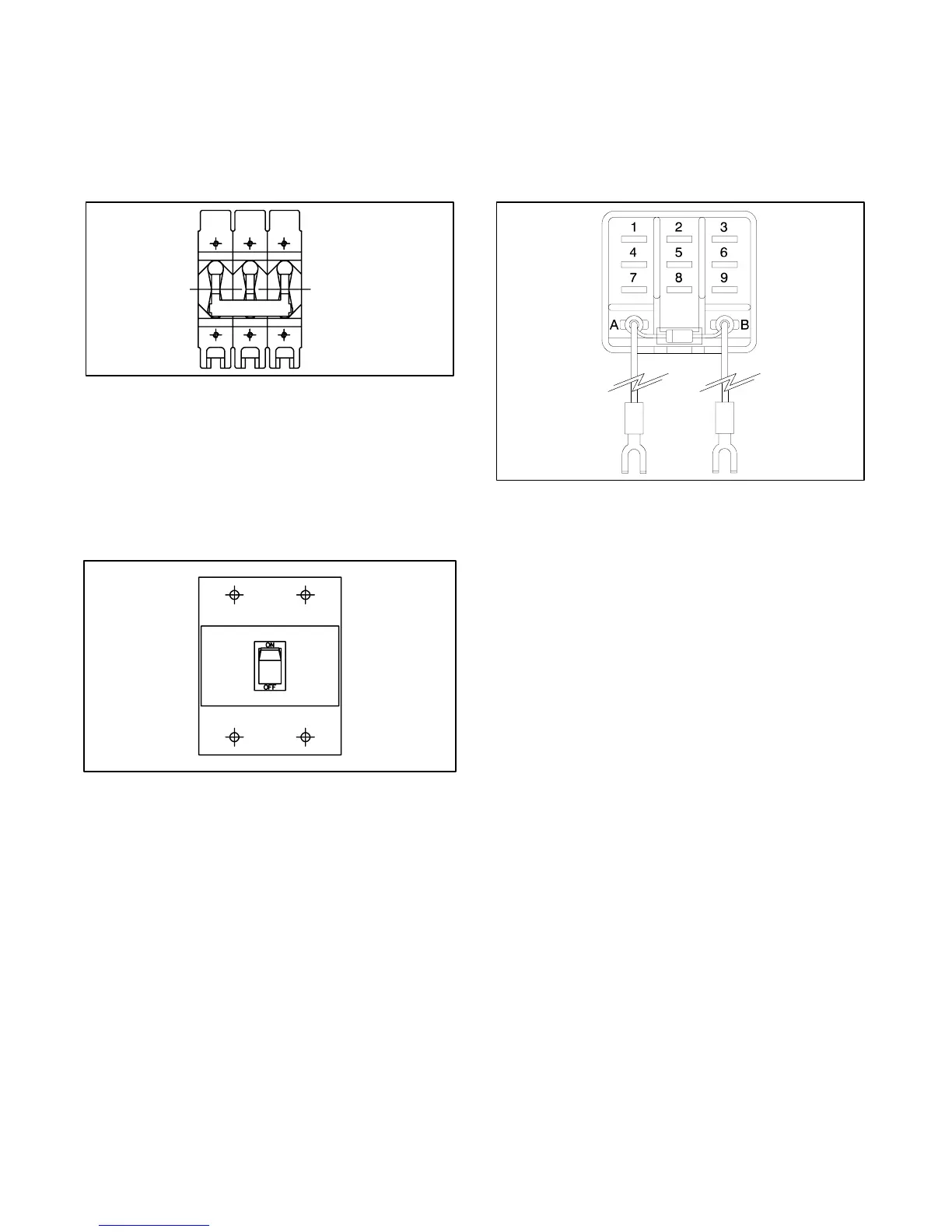

1.3.2 Safeguard Breaker
The safeguard breaker senses output current on each
generator phase and shuts off the AC voltage regulator
in the event of a sustained overload or short circuit. It is
not a line circuit breaker and does NOT disconnect the
generator from the load. See Figure 1-2.
X-796
Figure 1 -2 Safeguard Breaker
1.3.3 Line Circuit Breaker
The line circuit breaker interrupts generator output in the
event of an overload or short circuit. Use the kit to
manually disconnect the generator set from the load
when servicing the generator set. See Figure 1-3.
TP-5352-1
Figure 1 -3 Line Circuit Breaker
1.3.4 Run Relay Kit
The run relay kit energizes only when the generator set
is running. Typically, the three sets of contacts control
air intake and/or compartment ventilation fans.
However, alarms and other signalling devices can also
connect to the contacts. See Figure 1-4.
273705
Figure 1 -4 Run Relay Kit
