Kohler Courage SV470-600 User Manual

7.12
Section 7
Electrical System and Components

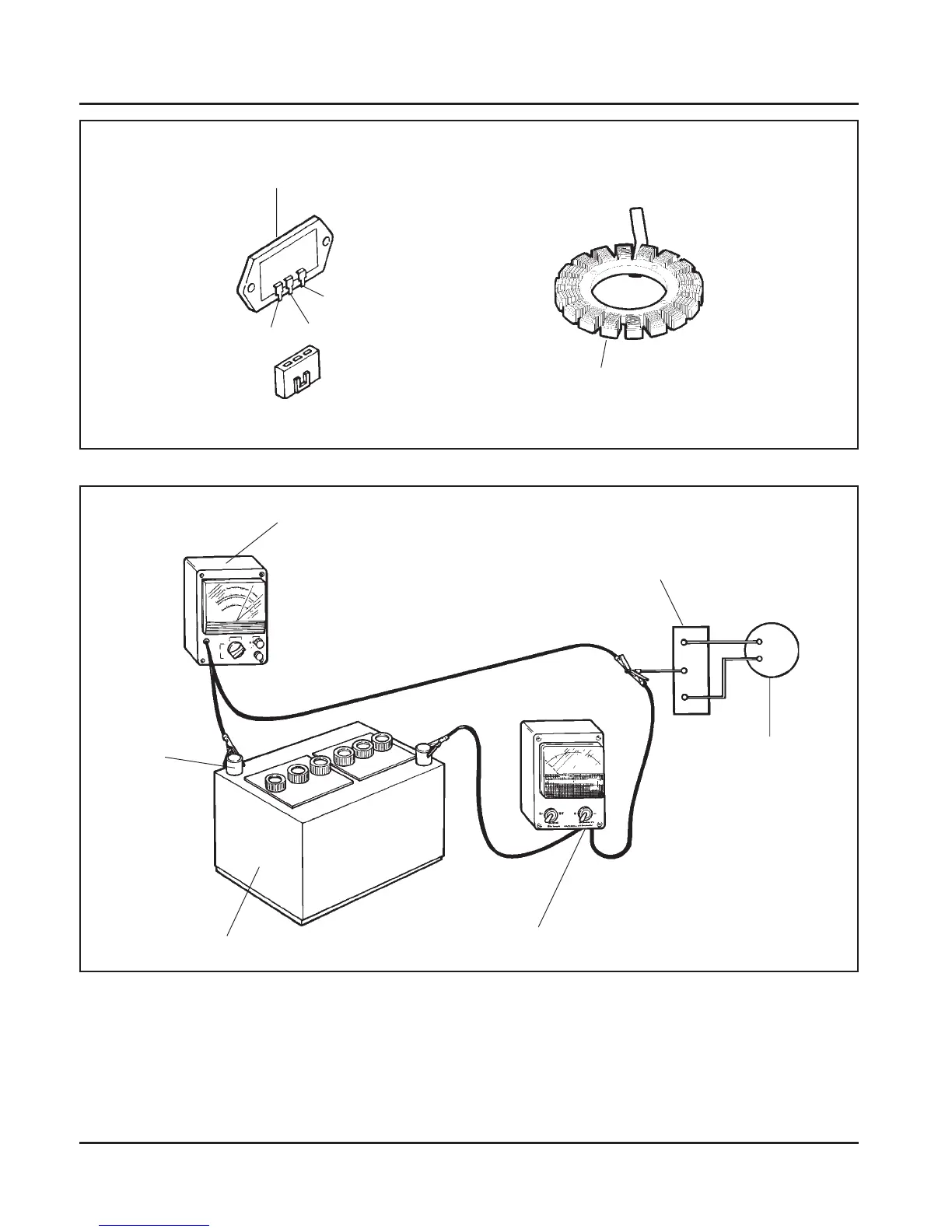

Figure 7-10. 9 or 15 amp Stator and Rectifier-Regulator.
Figure 7-11. Proper Connection to Test 9 or 15 amp Charging System.
DC Volt Meter
(-)
Battery
Ammeter
Flywheel Stator
Rectifier-Regulator
AC
B+
AC
Rectifier-Regulator
AC
B+
AC
9 or 15 Amp Stator
