8.5
Section 8
Disassembly
8

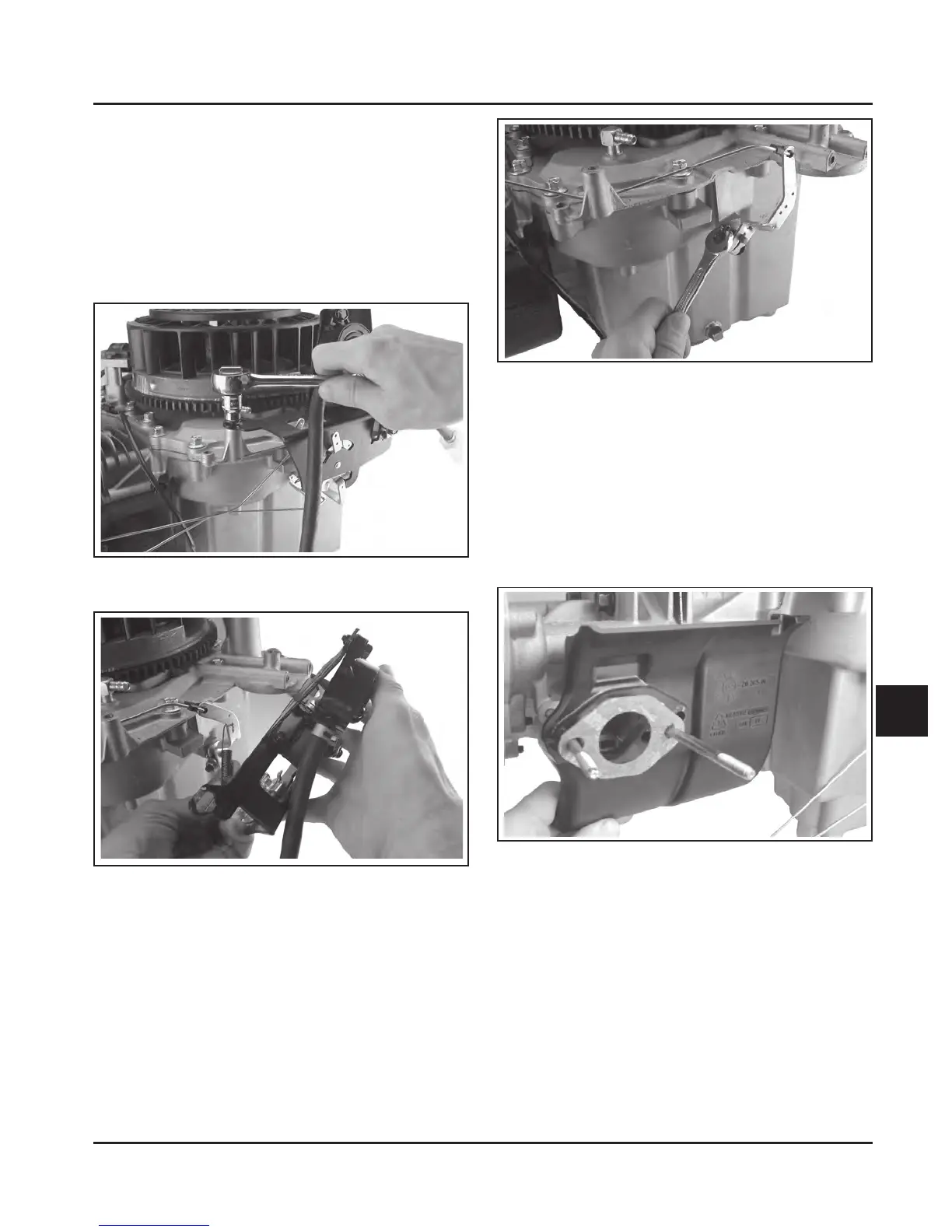

Figure 8-17. Disconnecting Governor Spring.
6. Loosen the hex. flange nut and remove the
governor lever* from the governor cross shaft.
See Figure 8-18.
*NOTE: It is recommended that a new governor lever
be installed whenever removal is performed.
5. Mark the mounted position of the speed control
bracket in the slotted holes and remove the two
screws securing the speed control bracket to the
closure plate. Note or mark the governor spring
hole for correct installation later. Unhook the
governor spring, then remove the control bracket
(with fuel pump attached, if equipped) and
linkages from the engine. See Figures 8-16 and
8-17.
Figure 8-18. Removing Governor Lever.
7. Remove the carburetor gasket, then carefully
remove the heat deflector and gasket from the
intake stud. The heat deflector is made from a
plastic that is quite brittle. Do not pry on the
corners, or you risk cracking/breaking the
deflector. If prying is necessary to loosen the
deflector, carefully pry near the intake stud only.
See Figure 8-19. Remove the mounting stud
from the cylinder only if required.
Figure 8-19. Removing Heat Deflector.
Figure 8-16. Removing Speed Control Bracket
from Closure Plate.
