Remove Ignition Module
1. Disconnect the kill lead from the ignition module.
2. Rotate the flywheel magnet away from the
module.
3. Remove the RFI sheathed spark plug lead with
from retaining clip, if so equipped. See Figure
8-20.

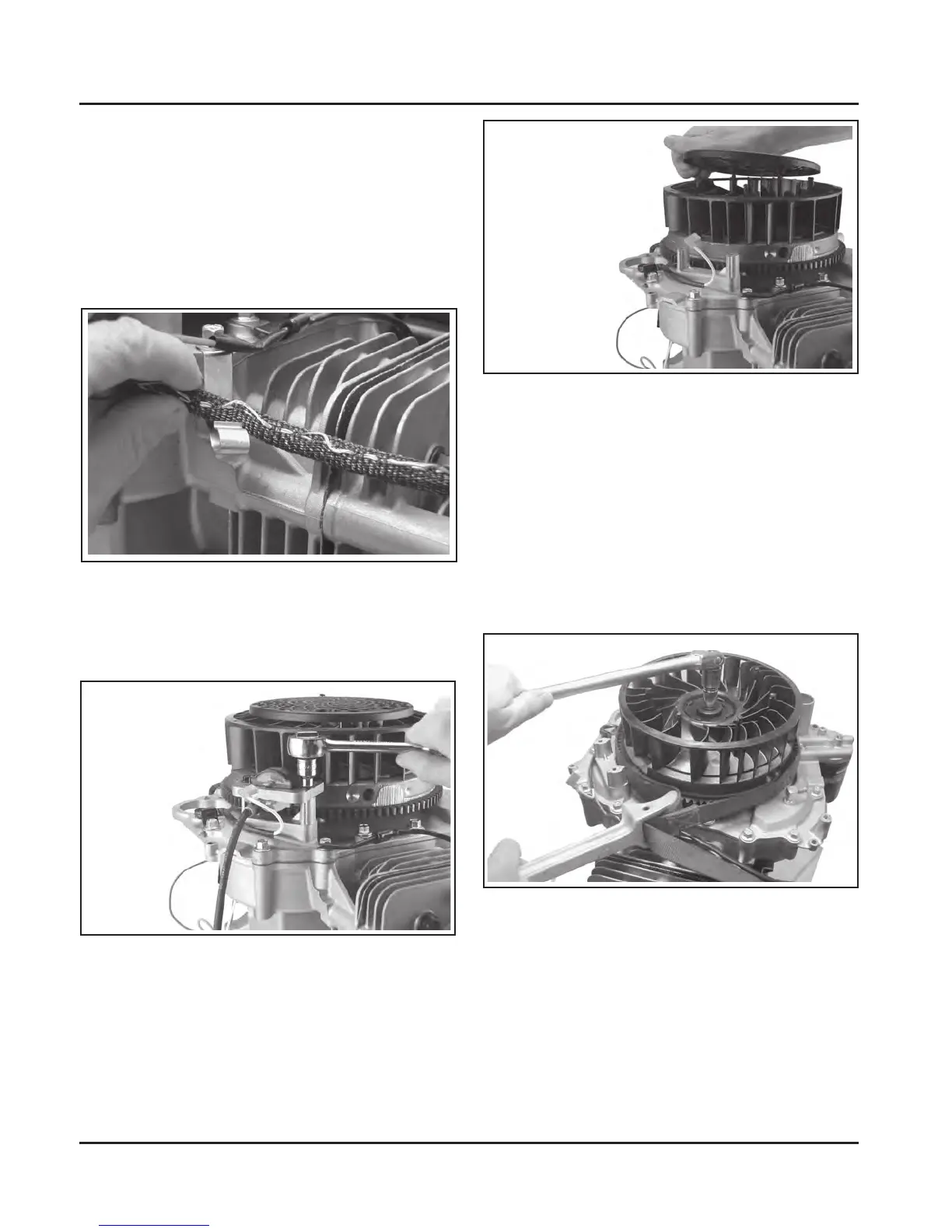

Figure 8-20. Removing Lead from Clip (RFI
Suppression Equipped Units.
4. Remove the two hex. flange screws and the
ignition module. See Figure 8-21.
Figure 8-21. Removing Ignition Module.
Remove Grass Screen, Fan, and Flywheel
1. Unsnap the grass screen from the cooling fan.
See Figure 8-22.
Figure 8-23. Removing Fan and Flywheel
Mounting Hardware.
3. Carefully lift the cooling fan to disengage the two
drive pins and remove it from the flywheel.
4. Remove the flywheel from the crankshaft using a
puller. See Figure 8-24.
NOTE: Always use a puller to remove the
flywheel from the crankshaft. Do not
strike the crankshaft or flywheel, as they
could be cracked or damaged.
Figure 8-22. Removing Grass Screen.
NOTE: Always use a flywheel strap wrench or
flywheel holding tool (see Section 2) to hold
the flywheel when loosening or tightening the
flywheel and fan retaining fasteners. Do not
use any type of bar or wedge between the
fins of the cooling fan, as the fins could
become cracked or damaged.
2. Remove the retaining screw, washer and the fan
mounting plate, securing the fan and flywheel to
the crankshaft. See Figure 8-23.
