8.3
Section 8
Disassembly
8

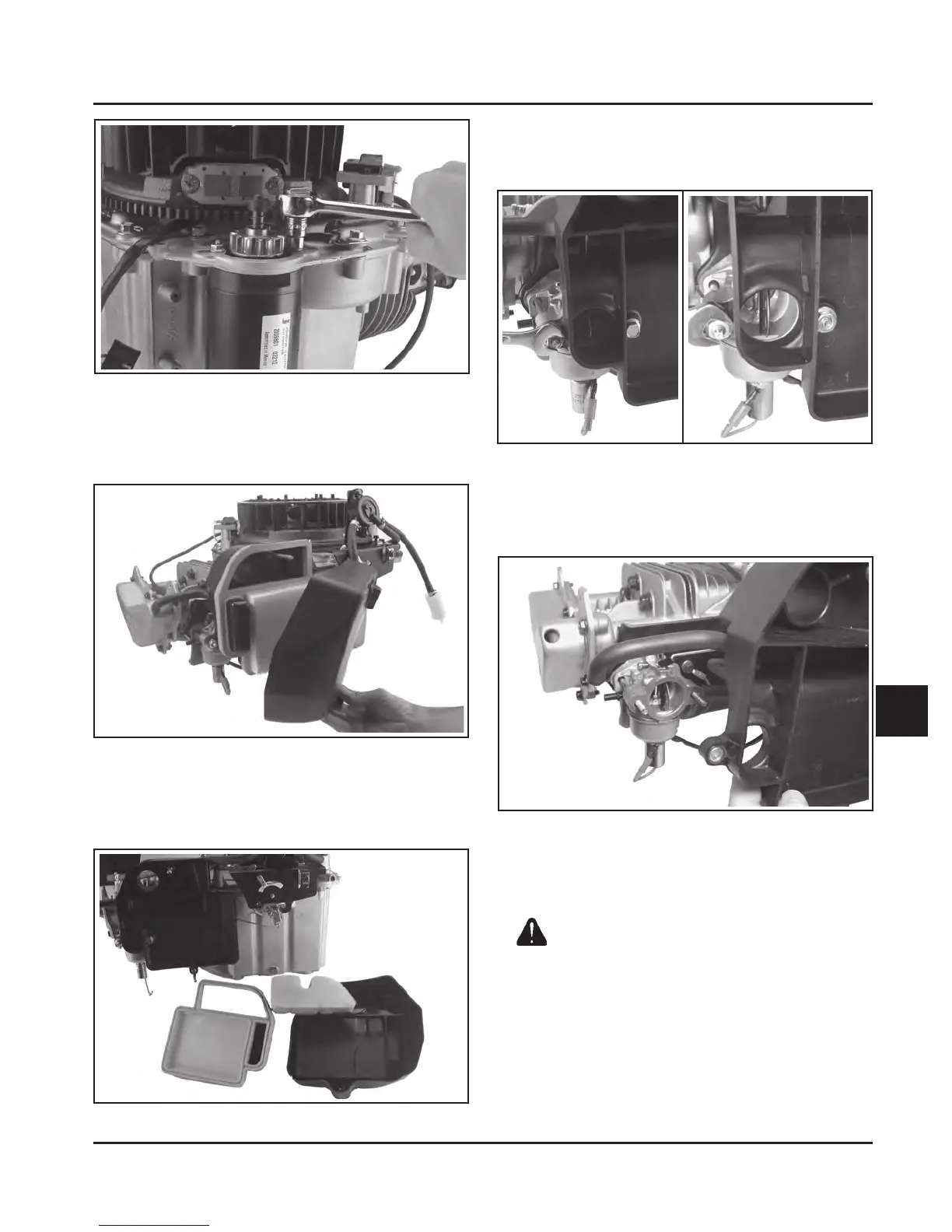

Figure 8-6. Removing Electric Starter.
Remove Air Cleaner
1. Loosen the two knobs and remove the air cleaner
cover. See Figure 8-7.
Figure 8-9. Removing Air Cleaner Base Fasteners.
4. Disconnect the breather hose from the valve
cover and remove the air cleaner base and
gasket. See Figure 8-10.
Figure 8-7. Removing Air Cleaner Cover.
2. Remove the precleaner (if so equipped), and the
air cleaner element with the formed rubber seal.
See Figure 8-8.
Figure 8-8. Air Cleaner Components.
3. Remove the two hex. flange nuts, or single nut
and long mounting screw securing the air cleaner
base. See Figure 8-9.
Figure 8-10. Removing Air Cleaner Base and
Breather Hose.
Remove External Governor Components,
Carburetor, and Fuel Pump
WARNING: Explosive Fuel!
Gasoline is extremely flammable and its vapors can
explode if ignited. Store gasoline only in approved
containers, in well ventilated, unoccupied buildings,
away from sparks or flames. Do not fill the fuel tank
while the engine is hot or running, since spilled fuel
could ignite if it comes in contact with hot parts or
sparks from ignition. Do not start the engine near
spilled fuel. Never use gasoline as a cleaning agent.
