Repair
Fuel system
Installation

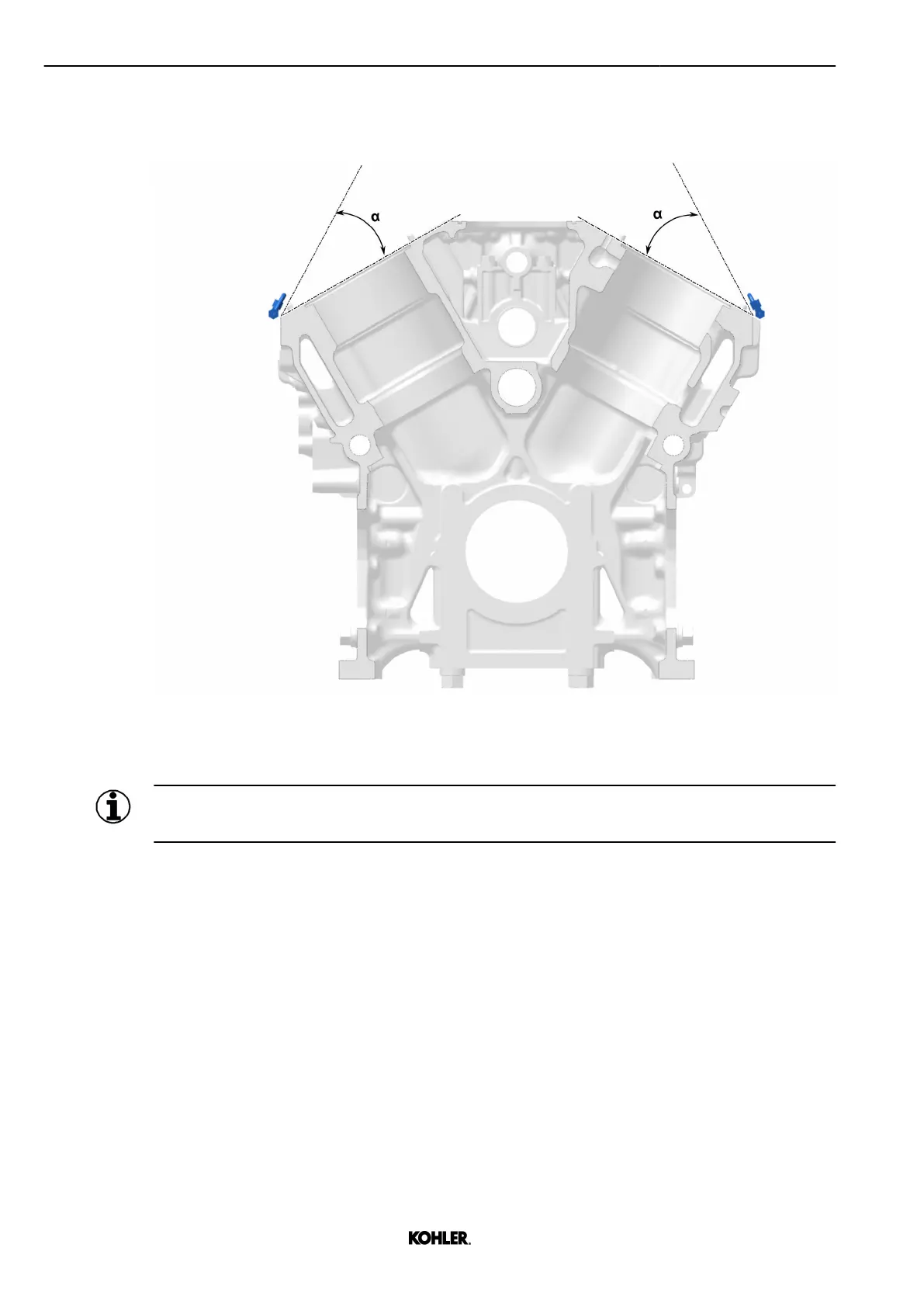

Fig. 112: Fuel return and venting pipes inclination
u Mount fuel return and venting pipes.
Information
Install fuel return and venting pipes with an angle of 30° minimum in relation to the crankcase.
u Tighten fuel return and venting pipes to torque.
Specific values
Not applicable.
Tightening specifications
Refer to standard tightening torques. (For more information see: 5.3 Standard tightening
torques, page 268.)
3.8.2 High pressure pipes removal and installation
Previous tasks
q Release the pressure of the HP fuel system using KoDIA tool.
112
