Standard tightening torques
Thread Y Form A with sealing edge Form B with sealing ring Form E with flat sealing
G 3/4A 72 Nm
53 ft-lb
216 Nm
159 ft-lb
144 Nm
106 ft-lb
G 1A 120 Nm
89 ft-lb
272 Nm
201 ft-lb
248 Nm
183 ft-lb
G 1 1/4A 192 Nm
142 ft-lb
432 Nm
319 ft-lb
360 Nm
266 ft-lb
G 1 1/2A 232 Nm
171 ft-lb
560 Nm
413 ft-lb
432 Nm
319 ft-lb
Tab. 68: Standard torques for imperial thread union S series, for aluminium – see figure above
5.3.7 Assembling pipes with cutting rings

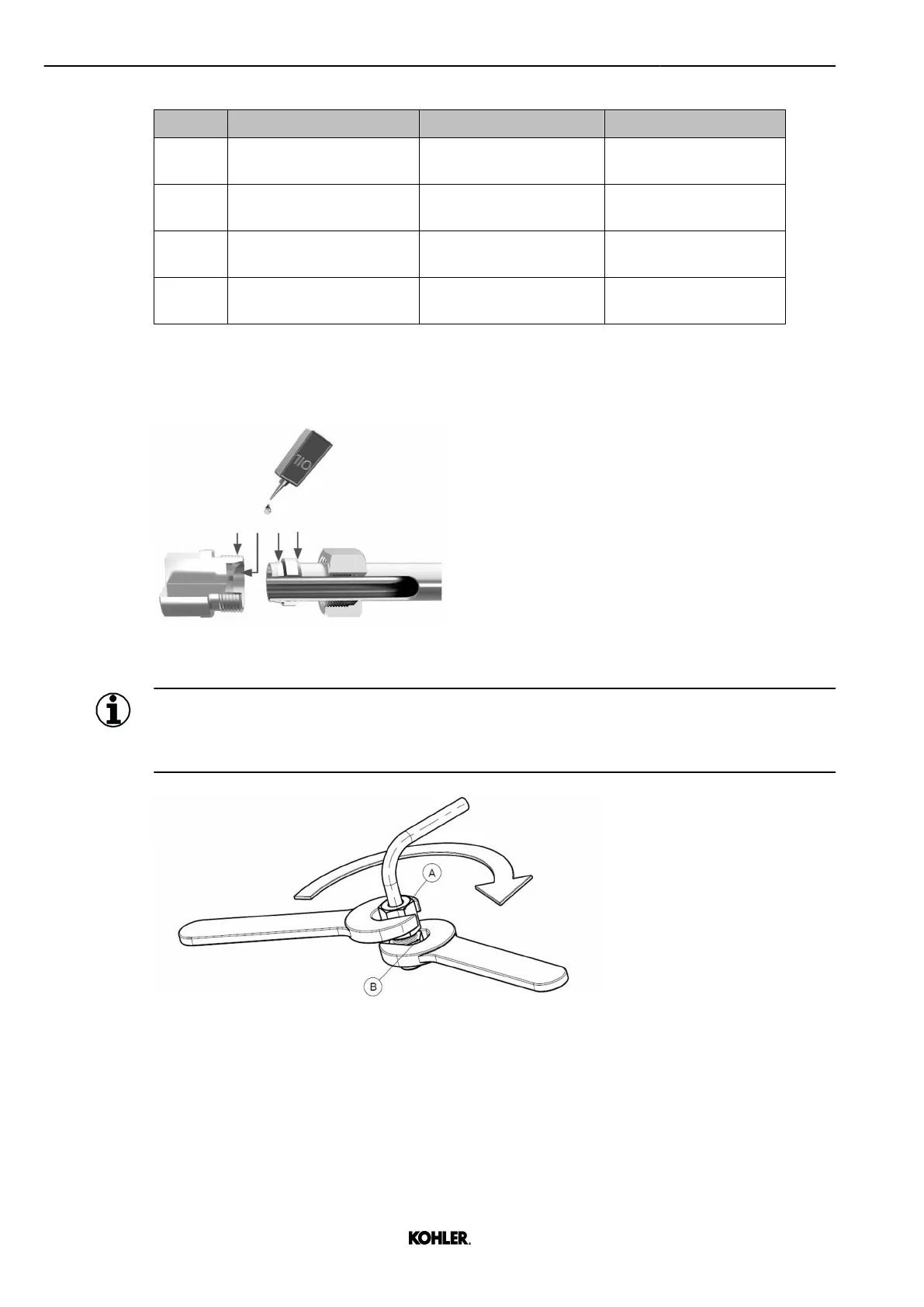

Fig. 324: Cutting ring lubrication
Information
Tolerances of the indicated tightening torques: 10%.
Always lubricate the thread before tightening these parts (engine oil).
Fig. 325: Cutting ring tightening
280
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
