Repair
Covers
3.4 Covers
3.4.1 Vibration damper cover removal and installation
Previous tasks
Not applicable.
Specific safety instructions
Not applicable.
Special tools
Not applicable.
Consumables and equipment
Not applicable.
Overview

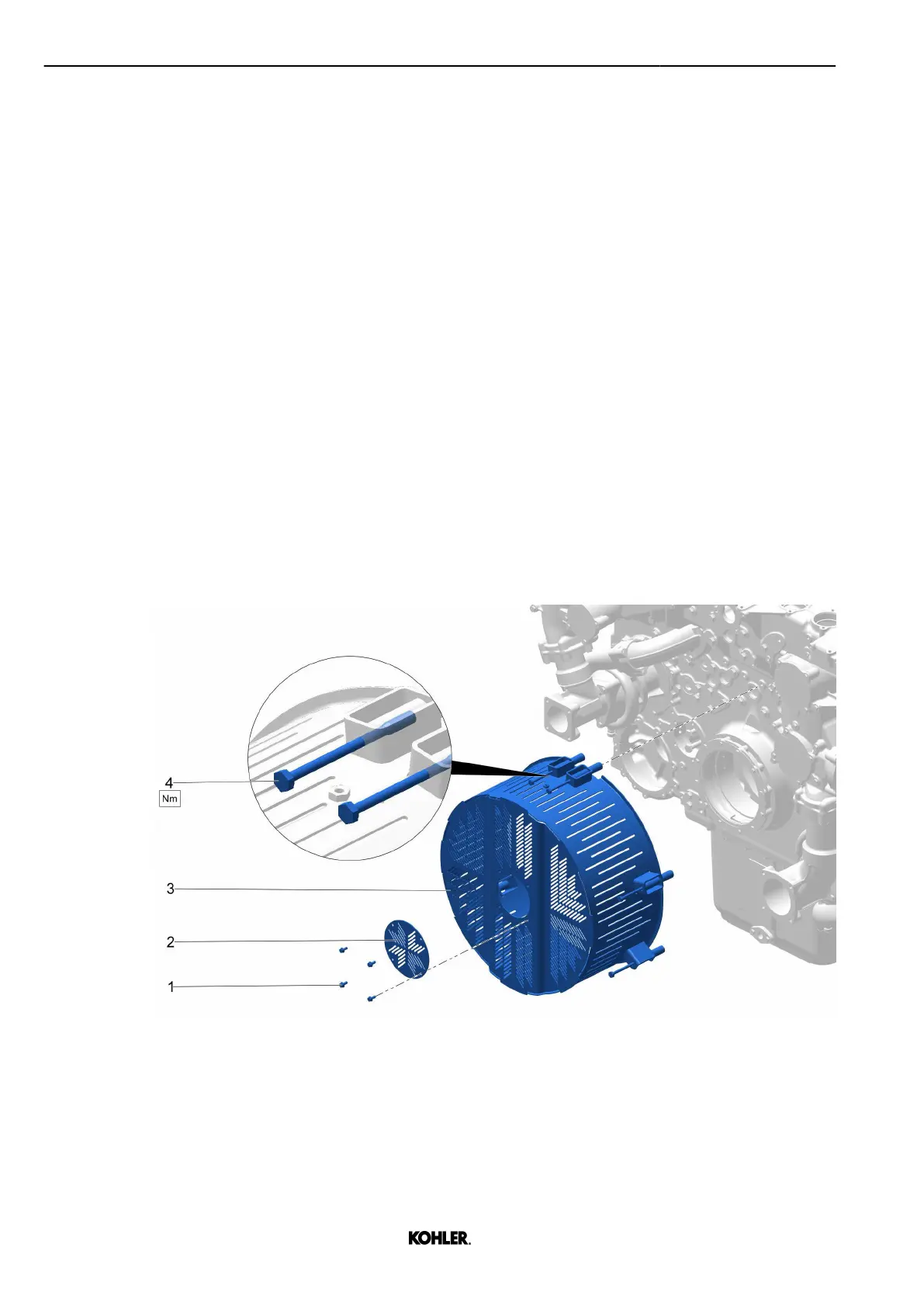

Fig. 41: Task overview
1
Screw (M8) 3 Cover
2 Protection plate 4 Screw (M12)
Removal
u Remove screws 1.
58
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
