Repair
Exhaust gas system
**Refer to screws reuse rules. (For more information see: 5.3.2 Screws pre-tightening, reuse,
and marking, page 268.)
3.10.4 Oil supply – turbocharger removal and installation
Previous tasks
Not applicable.
Specific safety instructions
Not applicable.
Special tools
Not applicable.
Consumables and equipment
Make sure that the following consumables and equipment are available:
– Rags
– Cleaner
Overview

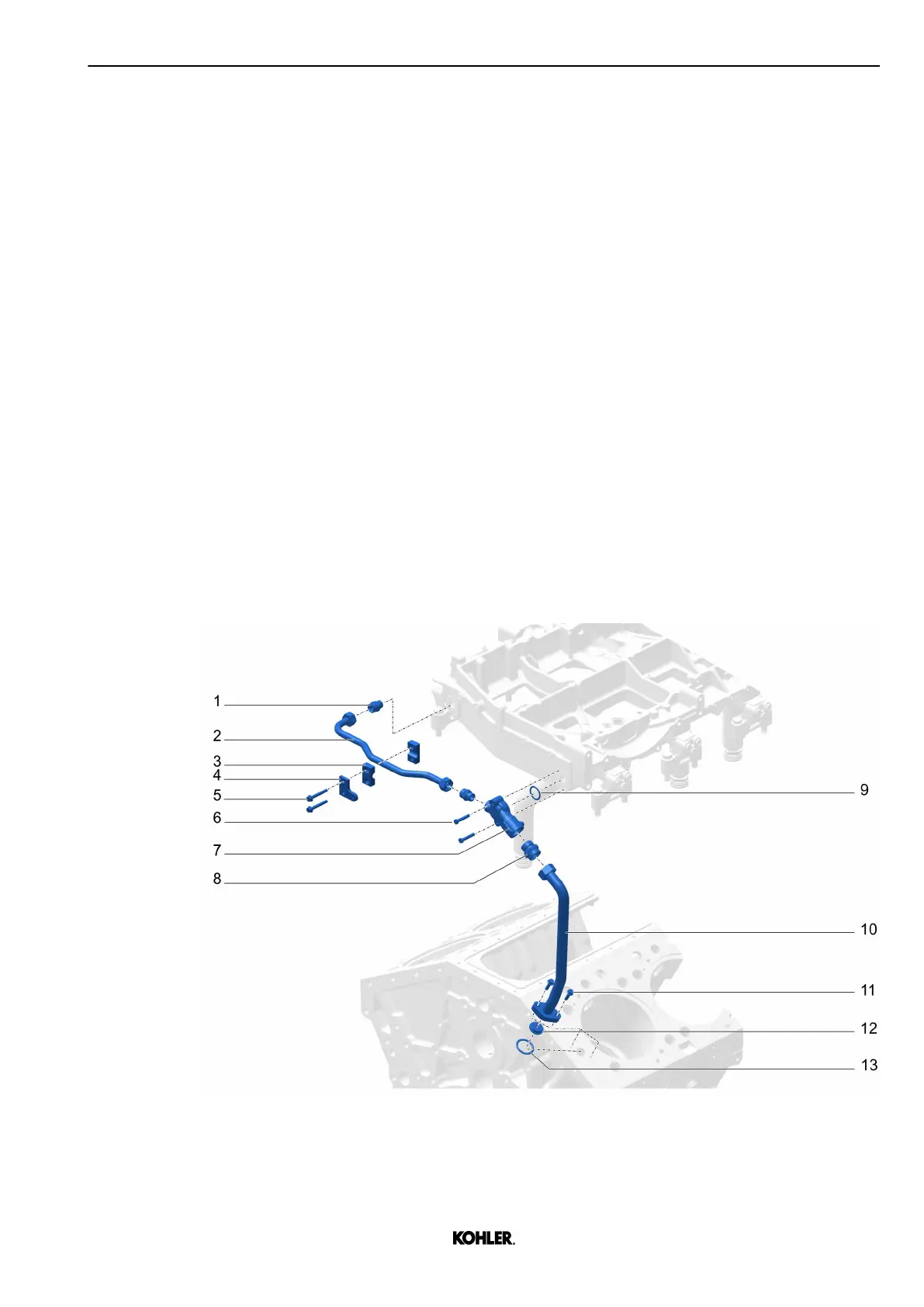

Fig. 183: Task overview
1
Flange joint 8 Flange joint
2 Pipe 9 O-ring
See next page for continuation of the image legend
KD62V12 33525088601_8_1 EN_US
2022-09
© 2022 by Kohler Co. All rights reserved.
171
