Repair
Exhaust gas system
3.10.5 Turbocharger brackets removal and installation
Previous tasks
q Remove oil supply pipes. (For more information see: 3.10.4 Oil supply – turbocharger removal
and installation, page 171.)
Specific safety instructions
Not applicable.
Special tools
Not applicable.
Consumables and equipment
– Rags
– Cleaner
Overview

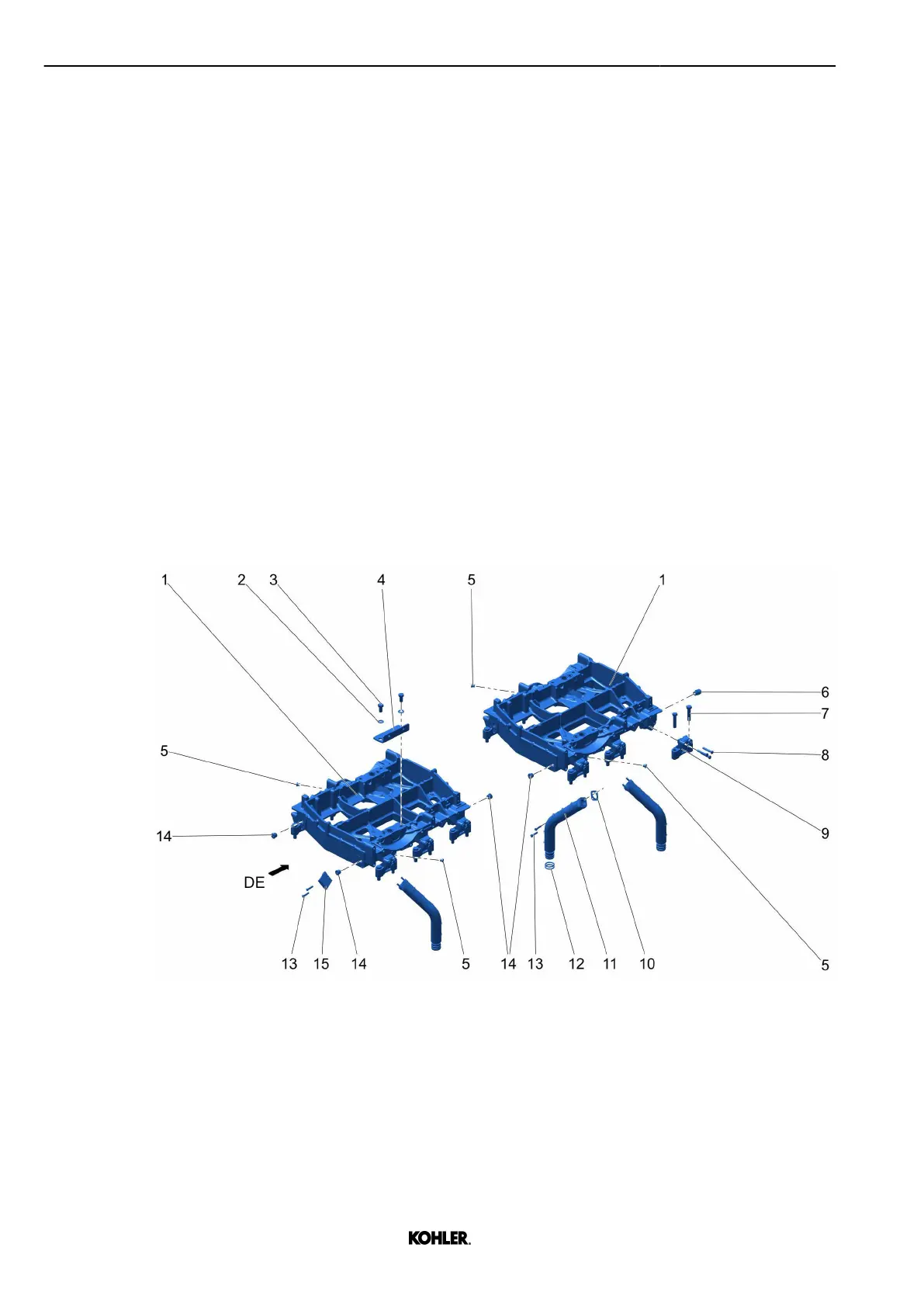

Fig. 189: Task overview
1
Turbocharger bracket 9 Bracket
2 Washer 10 Seal
3 Screw (M16) 11 Oil return pipe
4 Holder 12 O-ring
5 Screw plug 13 Screw (M8)
6 Flange joint 14 Screw plug
7 Screw (M16) 15 Cover
8 Screw (M10)
176
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
