Kohler KD62V12 User Manual

Product description
Function description
Sensors list
16 B7811 - Exhaust gas temper‐
ature before turbocharger
1&2
20 B7923 - Crankcase pressure
17 B781 - Air intake pressure
switch - B side (clogging)
21 B703 - Charged air pressure
A after charge air cooler
Engine type Number of turbochargers TC1 TC2 TC3 TC4 TC5
V12 3 x x
V16 4 x x
V20 5 x x
Tab. 3: Blowby connections
1.2.4 Charge air diagram (engine with EATS)

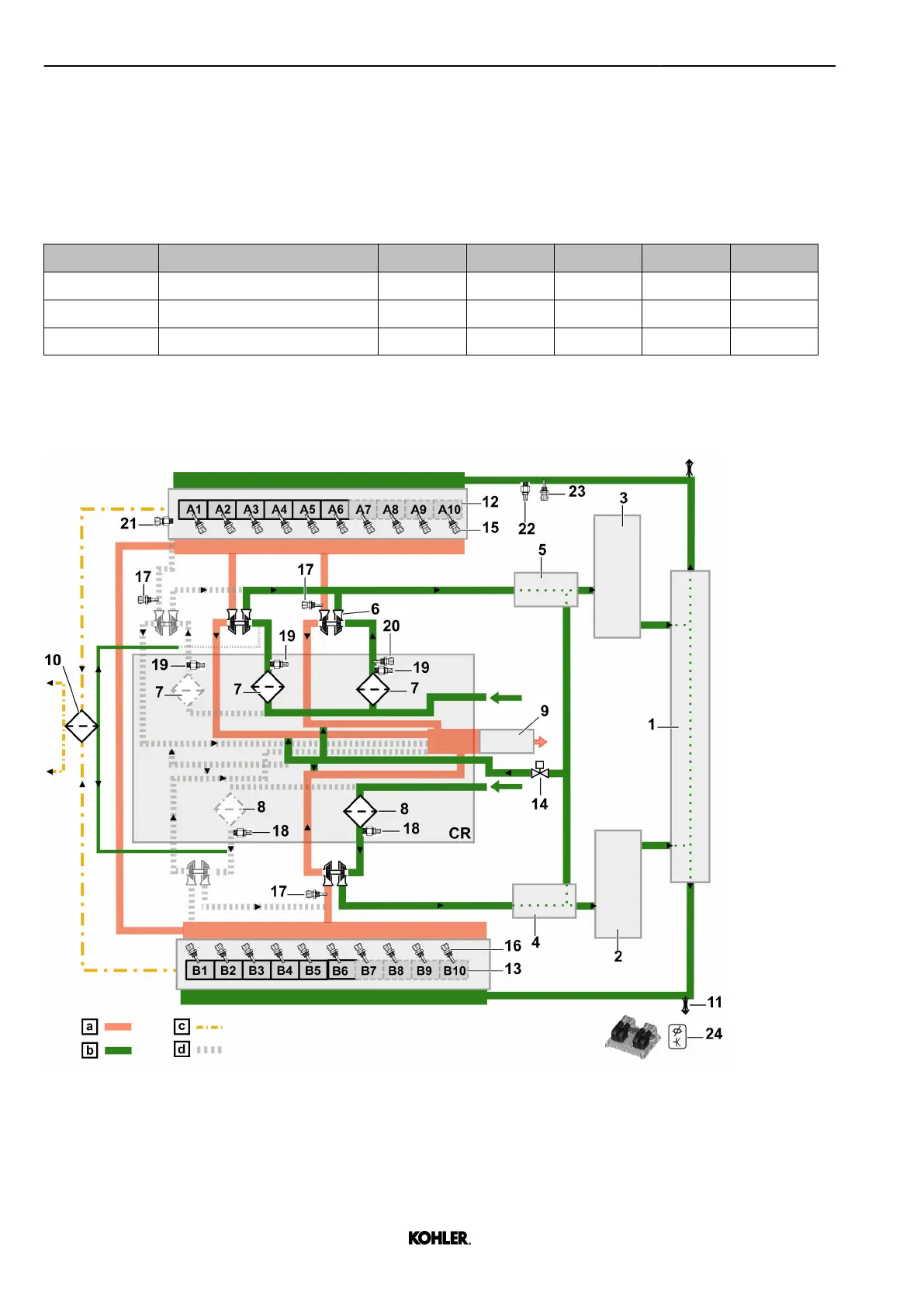

Fig. 23: Charge air diagram
a
Exhaust gas c Oil vapor e For odd number of turbo‐
chargers only
b Fresh air d Depending on engine config‐
uration
CR Customer responsibility
32
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
