Repair
Fuel system
MH = Molykote HSC
O = Engine oil
XX = Loctite 243
YY = Loctite 577
**Refer to screws reuse rules. (For more information see: 5.3.2 Screws pre-tightening, reuse,
and marking, page 268.)
3.8.6 Leakage fuel block removal and installation
Previous tasks
q Disconnect fuel pipings.
Specific safety instructions
Not applicable.
Special tools
Not applicable.
Consumables and equipment
– Rags
– Cleaner
– Bucket for fuel
Overview

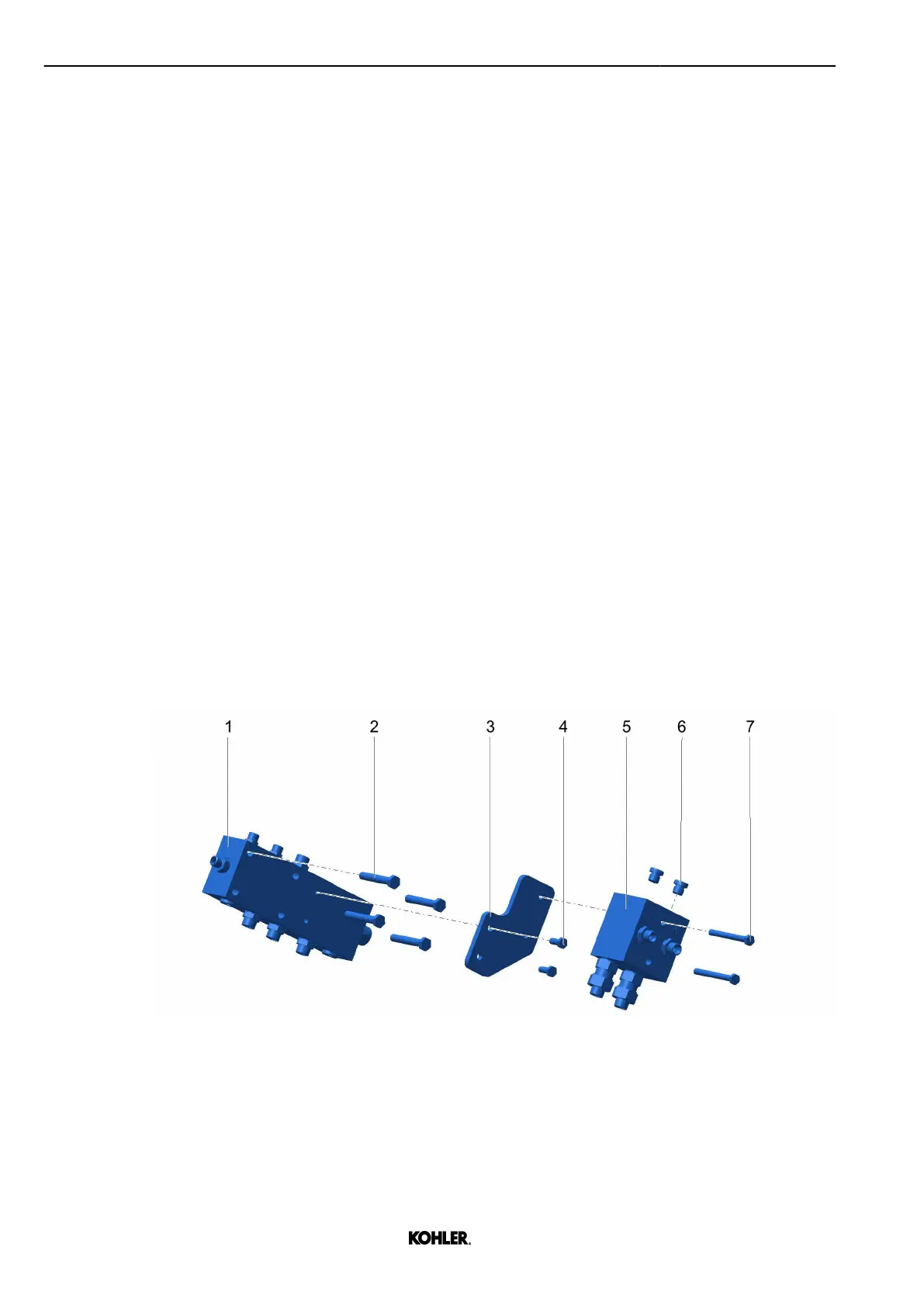

Fig. 141: Task overview
1
Fuel return block 5 Distributor block
2 Screw (M10) 6 Screw plug
3 Retaining plate 7 Screw (M8)
4 Screw (M8)
