Repair
Exhaust gas system
Overview

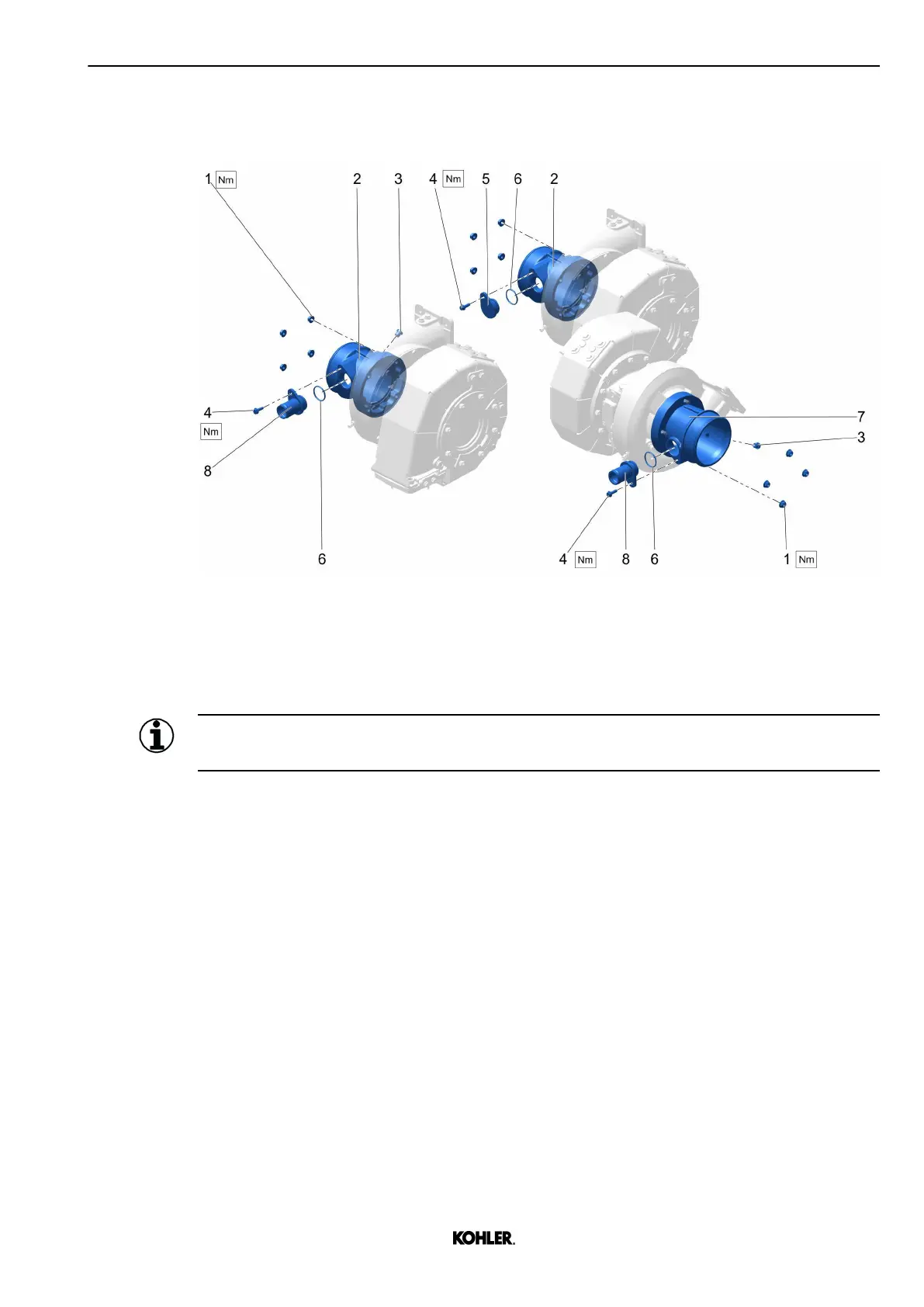

Fig. 167: Task overview
1
Nut 5 Flange
2 Straight air intake connection 6 O-ring
3 Plug 7 Straight air intake connection
4 Screw (M8) 8 Flange
Information
Depending on application, flange 8 may be replaced with flange 5.
Removal
u Remove nuts 1.
u Remove straight air intake connections 2, 7.
Installation
u Install straight air intake connections 2, 7 with nuts 1.
u Install flanges 5, 8 with o-rings 6 and screws 4.
u Install plugs 3 in straight air intake connections 2, 7.
Specific values
Not applicable.
