Repair
Exhaust gas system
Overview

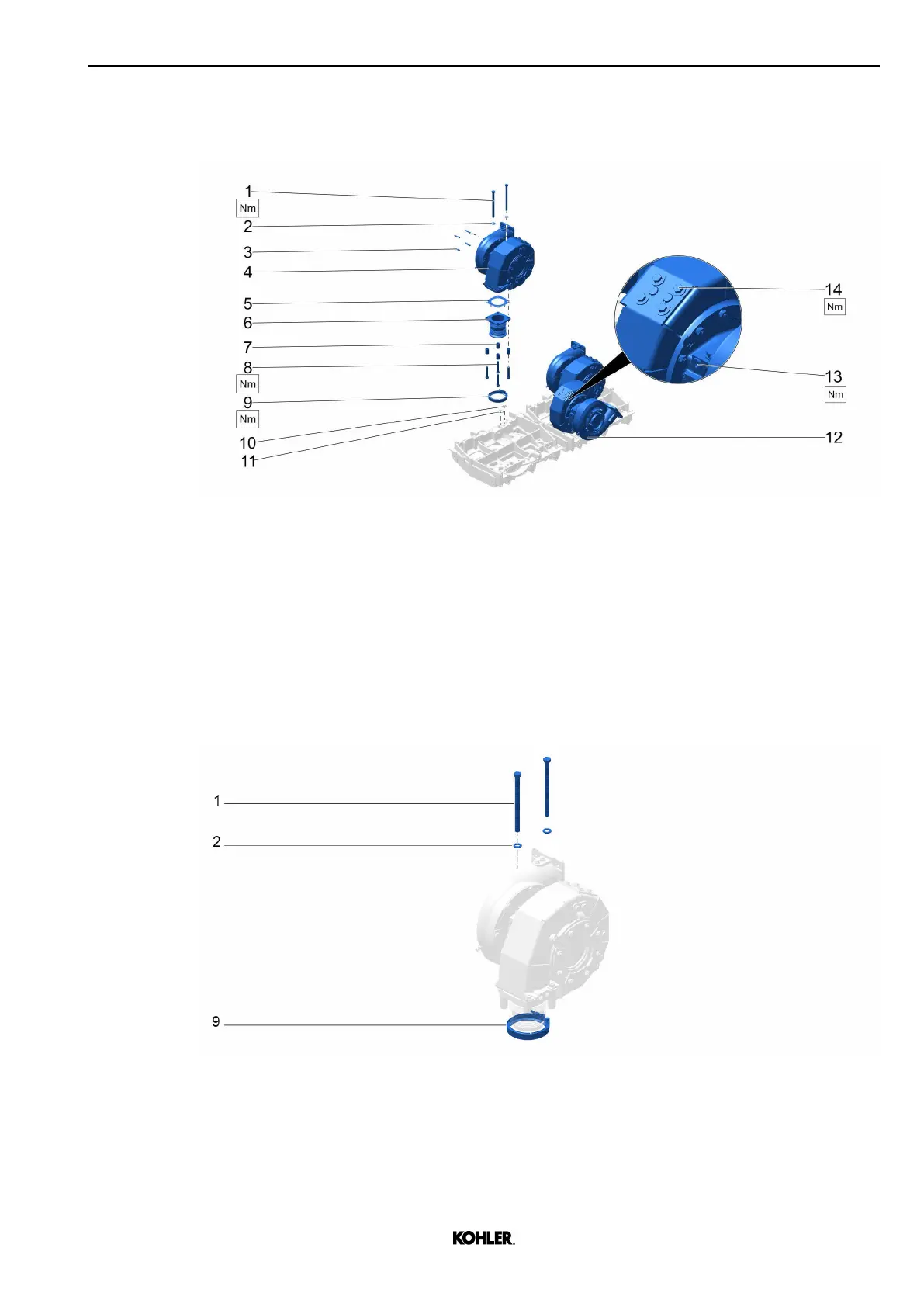

Fig. 178: Task overview
1
Screw (M16) 8 Screw (M16)
2 Washer 9 V-clamp
3 Stud 10 O-ring
4 Turbocharger 11 O-ring
5 Seal 12 Turbocharger
6 Compensator 13 Screw plug
7 Distance sleeve 14 Screw (M10)
Removal
Fig. 179: Removing turbocharger
u Remove screws 1 and washers 2.
u Open and loosen V-clamp 9.
u Lift the turbocharger.
KD62V12 33525088601_8_1 EN_US
2022-09
© 2022 by Kohler Co. All rights reserved.
167
