Repair
Cooling system
Specific safety instructions
NOTICE
Risk of property damage by reuse of sealing.
Leakage by faulty seal.
u Replace all sealings.
Special tools
Special tool Designation
Guiding rod M12x100 - Coolant pump (x2)
Tab. 45: Special tools
Consumables and equipment
– Rags
– Cleaner
– Vaseline
Overview

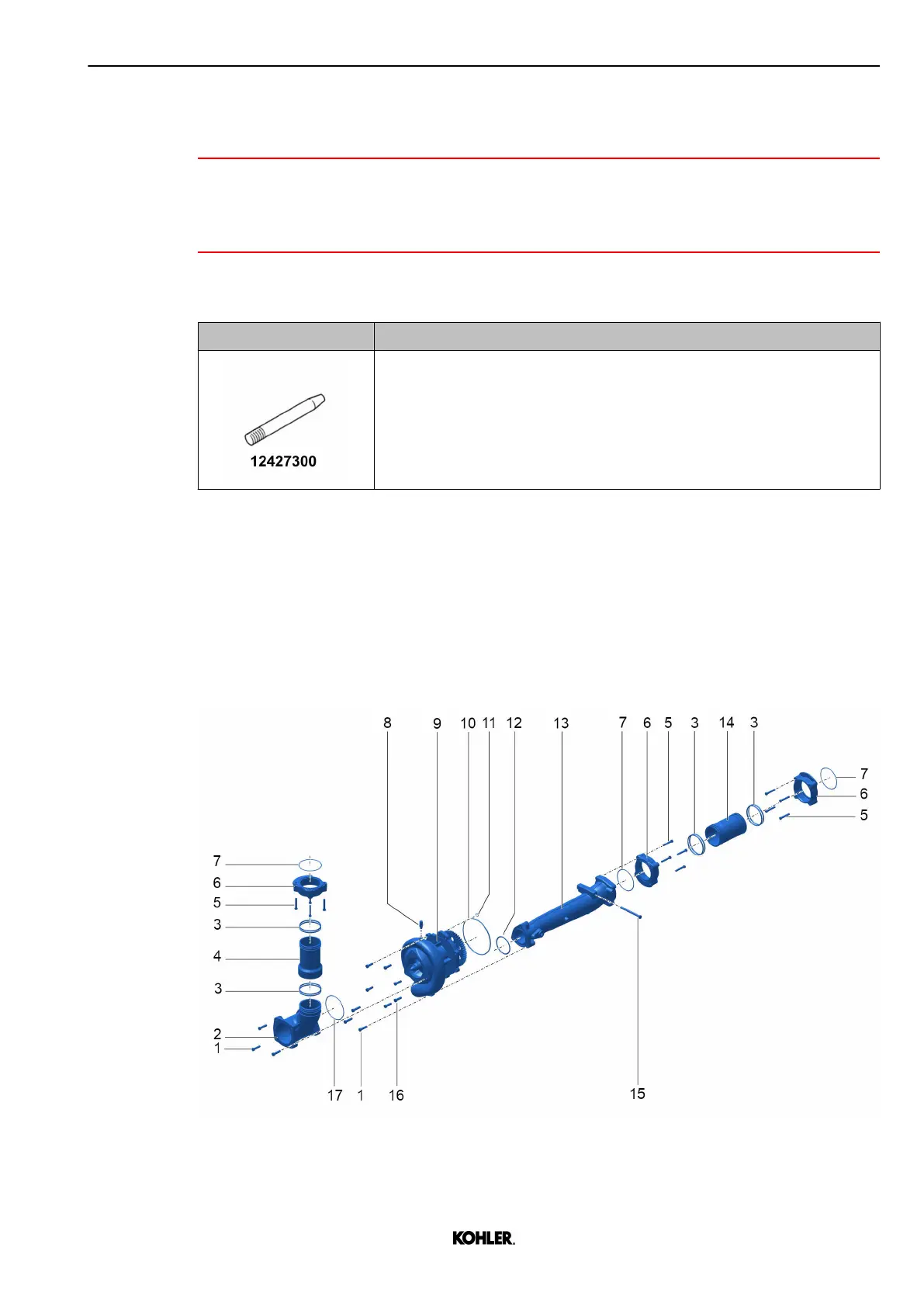

Fig. 239: Task overview
1
Screw (M12) 10 O-ring
See next page for continuation of the image legend
KD62V12 33525088601_8_1 EN_US
2022-09
