Repair
Electrical system
Specific safety instructions
Not applicable.
Special tools
Not applicable.
Consumables and equipment
– Rags
– Cleaner
Overview

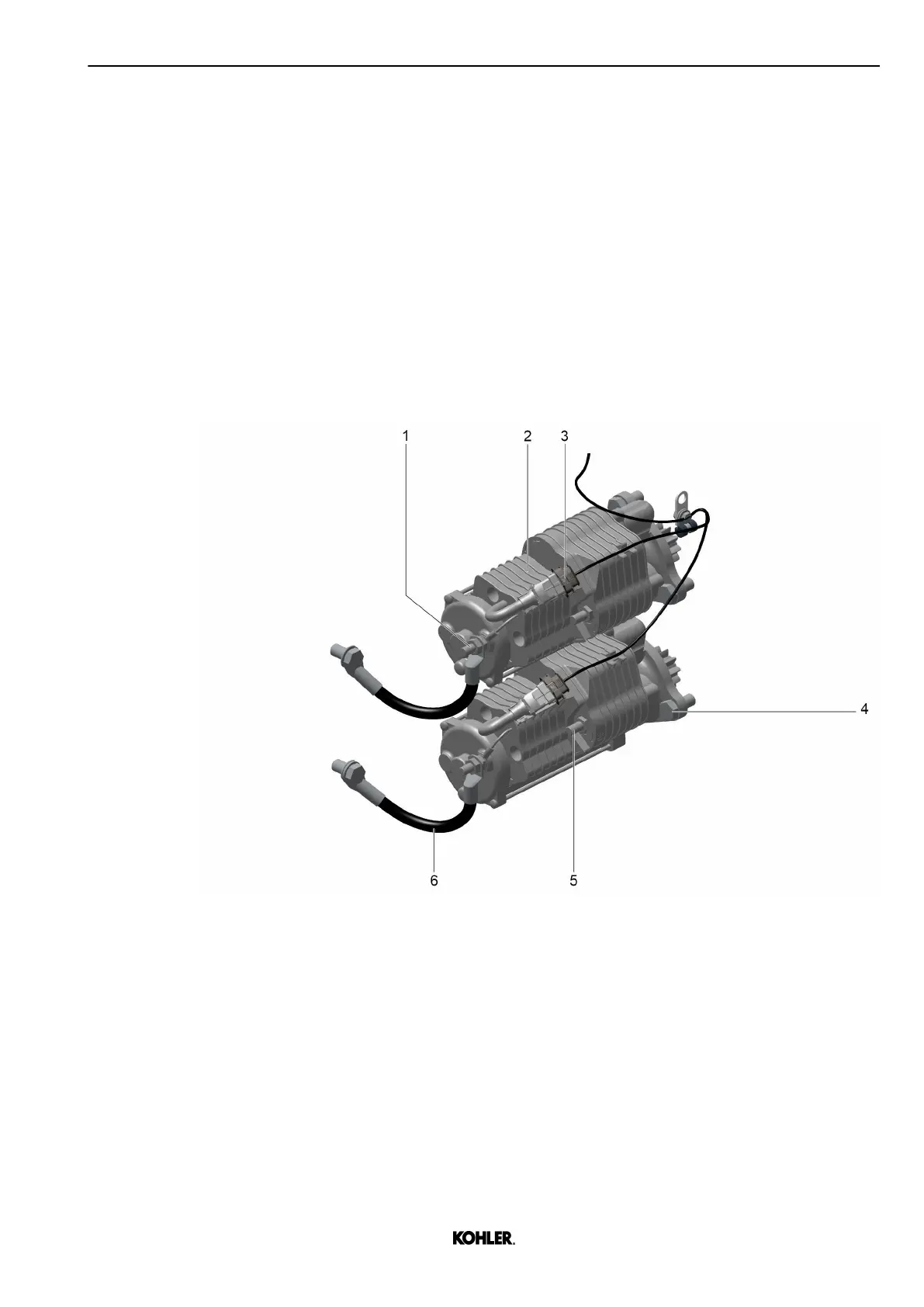

Fig. 263: Task overview
1
Ground connection - 4 Screw (M16)
2 Starter 5 Power supply T30, battery +
3 Wiring harness connection 6 Ground cable
Removal
u Unplug wiring harness connection 3.
u Remove nut from ground connection 1.
u Disconnect ground cable 6.
u Remove nut from power supply 5.
u Disconnect power supply cable.
