82E-5 – 98E-5 SERIES 9-9
9. STARTING MOTOR
9.1.5 Inspection and maintenance

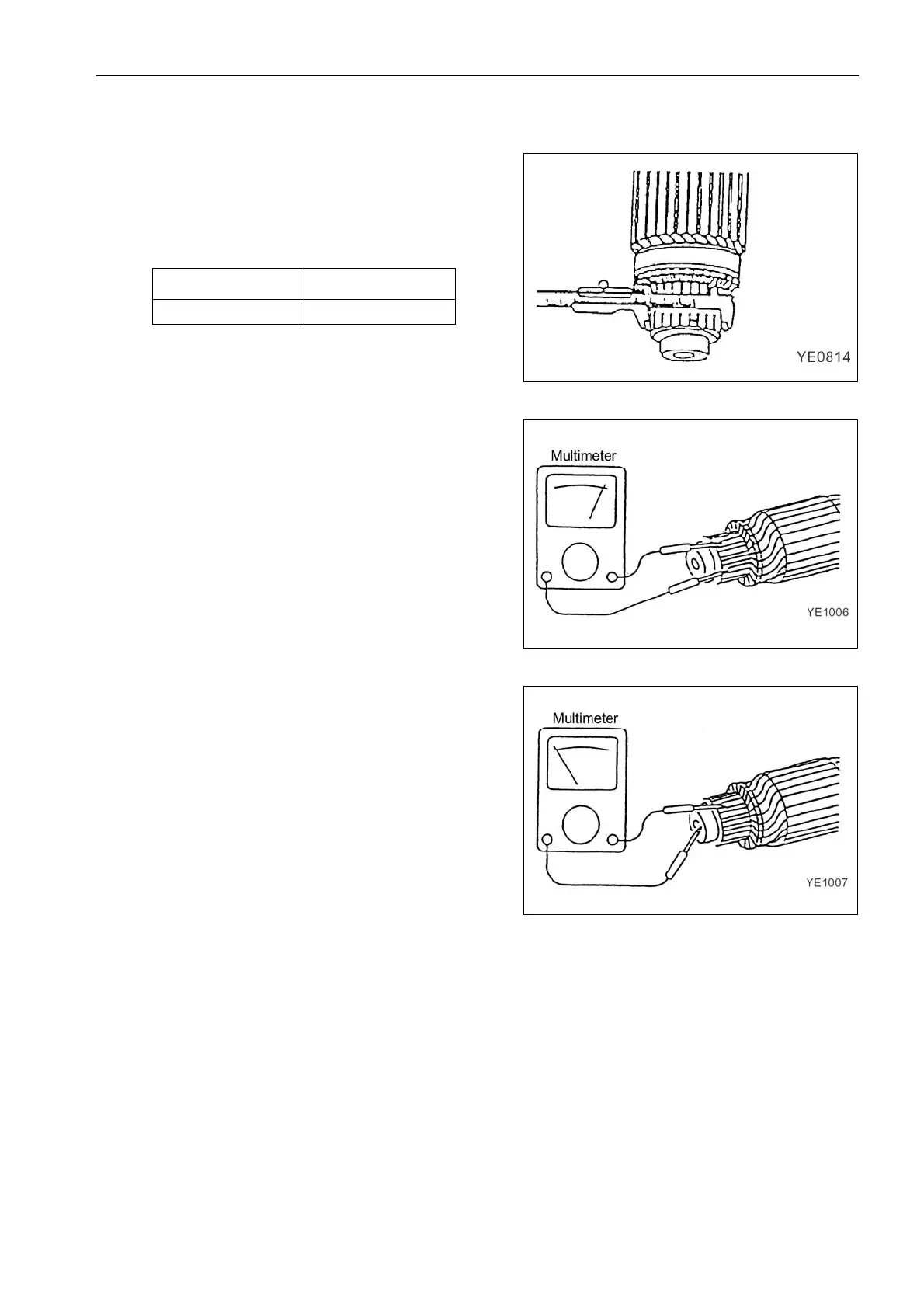

(1) Armature
(a) Commutator outside diameter
Measure the commutator outside diameter
and replace the commutator if the measured
value is less than the limit.
mm
(b) Armature coil continuity test
Check continuity between commutator seg-
ments with a multimeter. Good if continuity
exists.
In case of no continuity (coil disconnection),
replace the armature.
(c) Armature coil insulation test
Inspect the continuity between a commuta-
tor segment and the shaft or core with a
multimeter. Good if no continuity exists.
If continuity exists (coil short circuit), replace
the armature.
Standard Limit
36.5 35.5
