82E-5 – 98E-5 SERIES 10-3
10. ALTERNATOR
10.1.2 Specifications

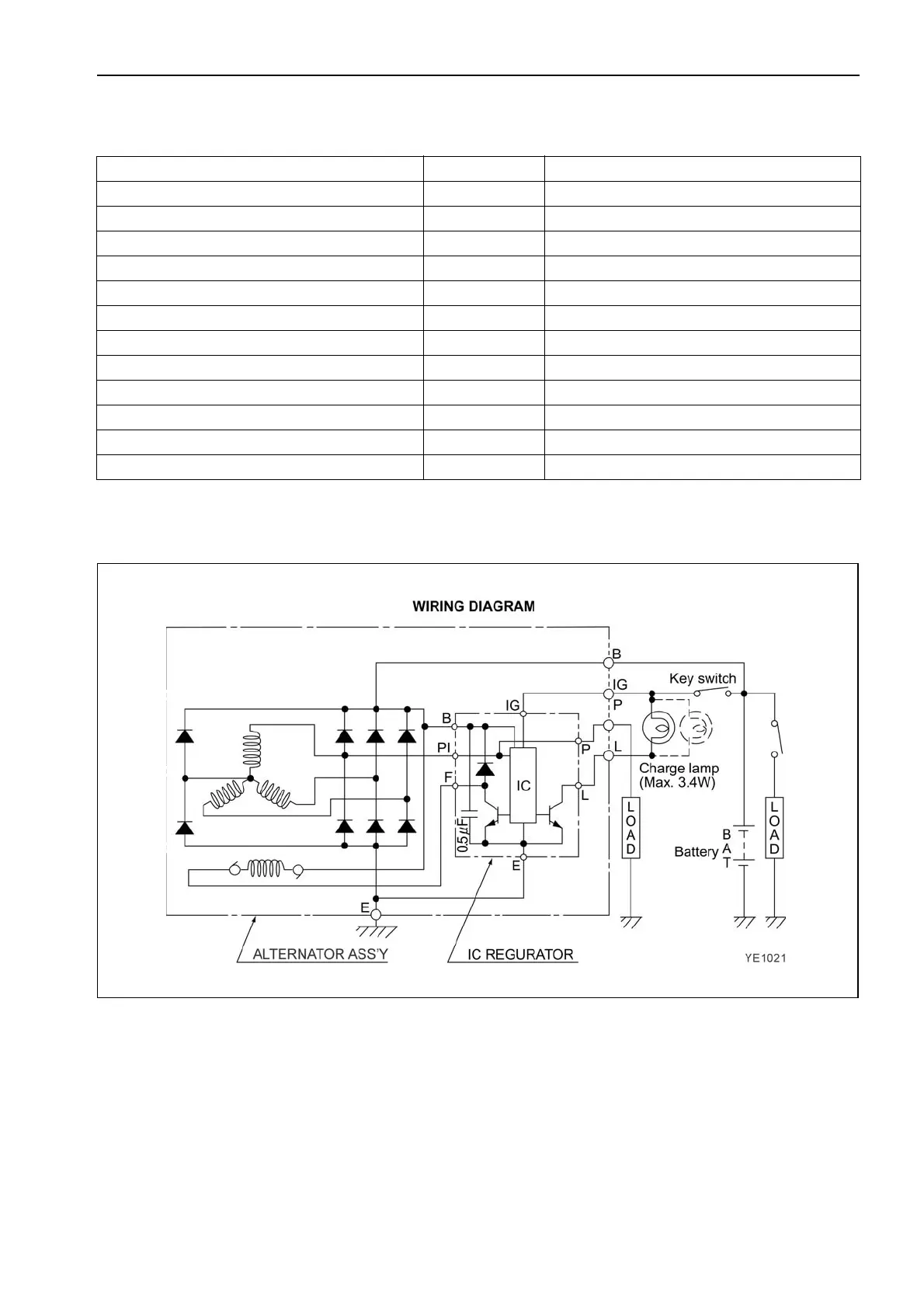

10.1.3 Wiring diagram
[NOTICE]
1) Don't do mis-wiring and short-circuit of each terminal.
2) Don't short-circuit between IG and L. (Connect it through the charge lamp.)
3) Don't connect a load between L and E.
4) Don't remove a battery terminal and a B terminal when rotating.
5) Shut out a battery switch during the alternator stop.
6) Tightening torque of each terminal: 1.7 – 2.3 Nm {17 – 23 kgcm}
Manufacturer's model (Hitachi) — ACFA68
Parts No. — YM129423-77200
Rating — Continuous
Battery voltage V 12
Nominal output (13.5V heat) A 40
Rated revolution rpm 5,000
Operating revolution rpm 1,350 – 18,000
Grounding characteristics — Minus side grounding
Direction of revolution (viewed from pulley) — Clockwise
Integrated regulator — IC regulator
Weight kg 2.8
Pulley (outside diameter) mm 69.2
Belt shape — Type A
