82E-5 – 98E-5 SERIES 4-13
4. DISASSEMBLY, INSPECTION AND REASSEMBLY OF ENGINES
4.2 Cylinder Head: Disassembly, Inspection and Reassembly

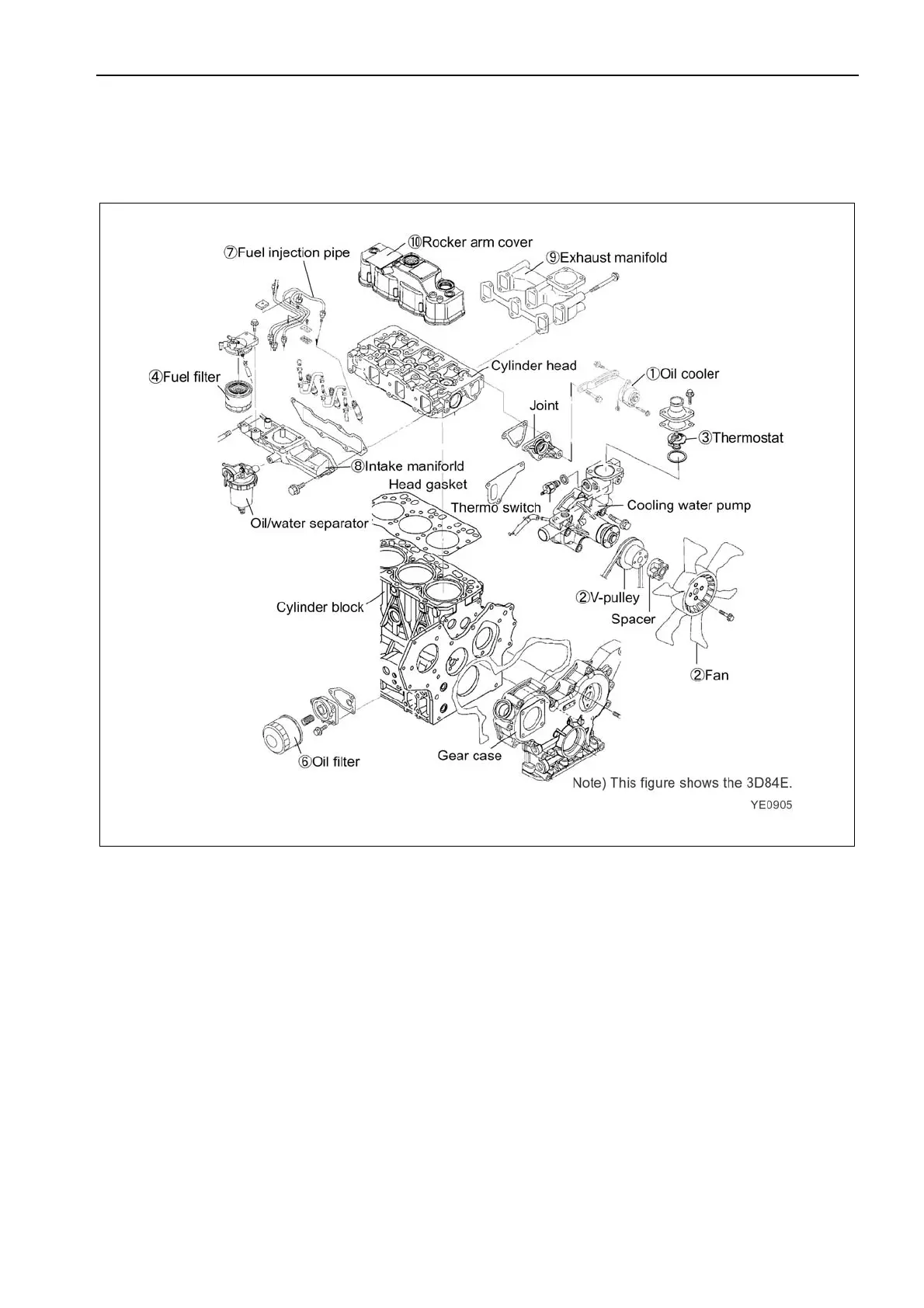

4.2.1 Components (2-valve cylinder head)
4.2.2 Disassembly procedure
Disassemble in the order of the numbers shown in the illustration.
1) Remove the alternator ass’y. (Point 1)
2) Remove the fan, pulley and V belt.
3) Remove the thermostat case. (Point 2)
4) Remove the fuel filter and fuel oil piping. (Point 3)
5) Remove the oil level gauge ass’y.
6) Remove the oil filter. (Point 4)
7) Remove the fuel injection pipes. (Point 5)
8) Remove the intake manifold ass’y.
9) Remove the exhaust manifold ass’y.
10) Remove the rocker arm cover ass’y.
11) Remove the rocker shaft ass’y, push rods and valve caps. (Point 6)
12) Remove the cylinder head ass’y and head gasket. (Point 7)
13) Remove the fuel injection valves and fuel return pipe. (Point 8)
14) Remove the intake/exhaust valves, stem seals and valve springs. (Point 9)
15) Remove the rocker arms from the rocker shaft.
To Next Page
